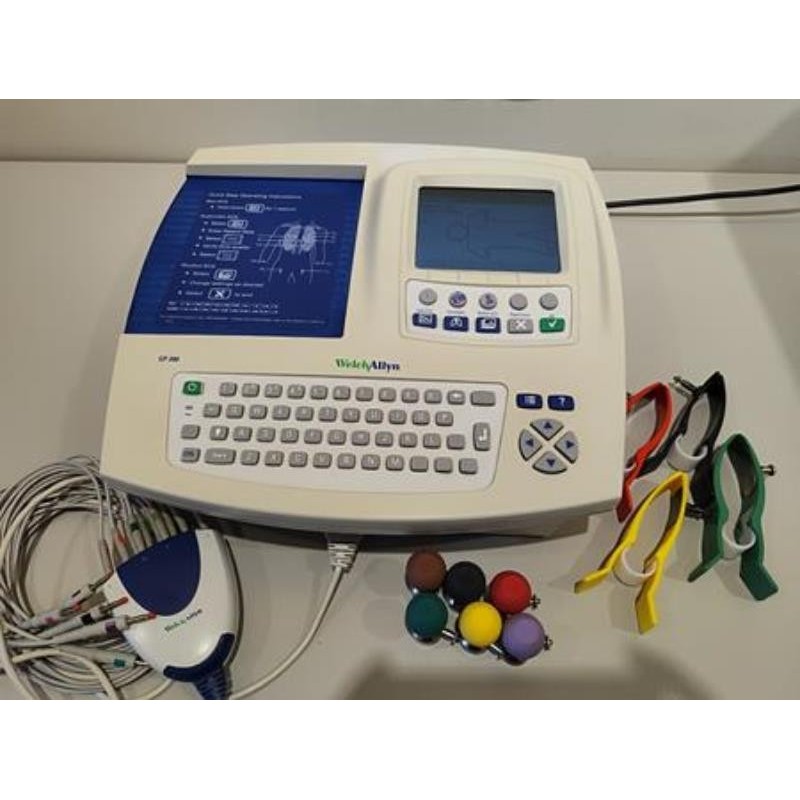

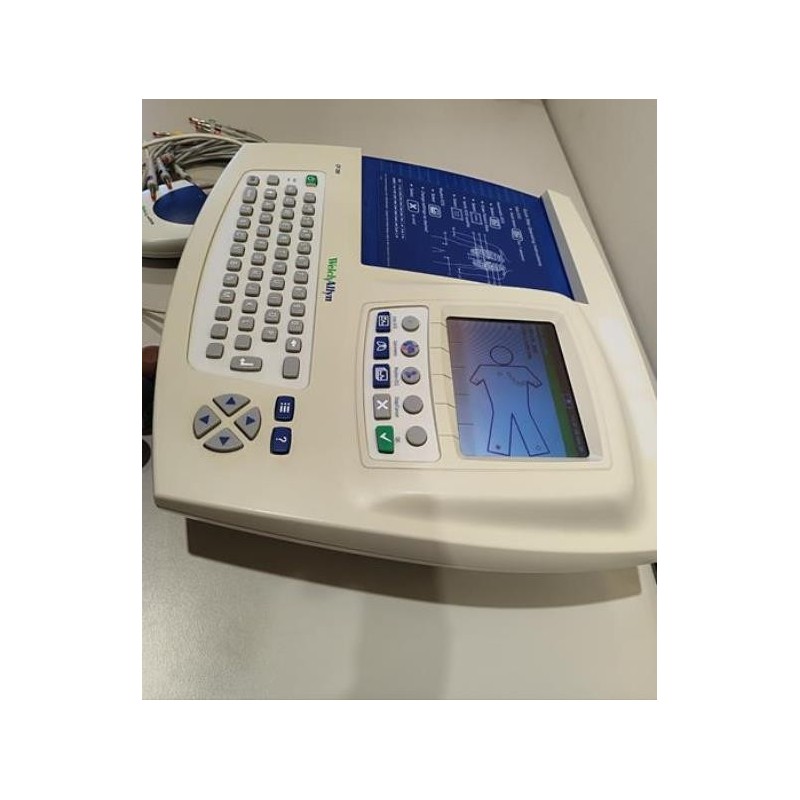

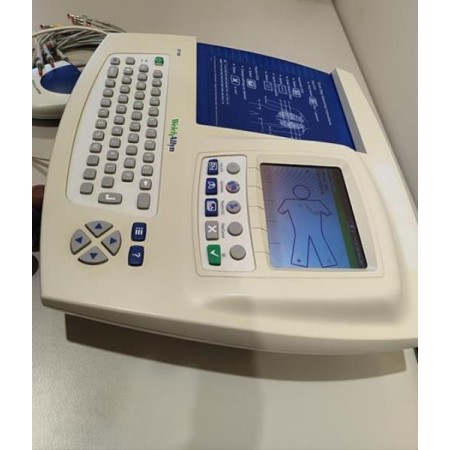

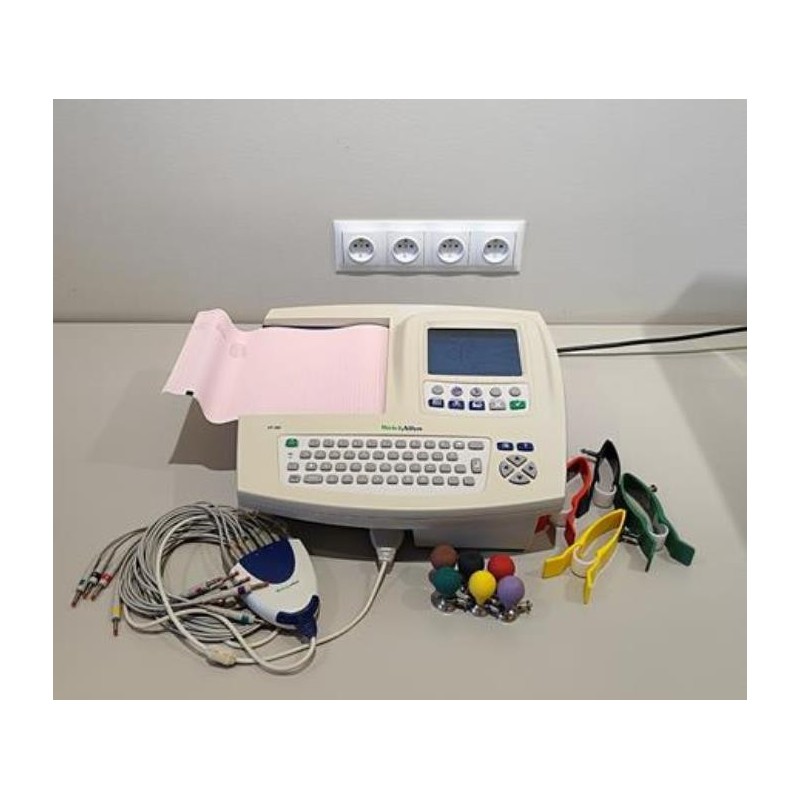

Welch Allyn CP200 ECG Machine

12-lead resting electrocardiograph

ECG leads:
12-lead ECG (10-lead patient cable)

Display:
Full-color LCD display with real-time ECG waveform preview

Keyboard:
Full alphanumeric QWERTY keyboard with shortcut keys

Data storage:

• up to 50 ECG tests

• up to 50 spirometry tests (optional)

Sampling rate:

1000 samples/sec/channel

Frequency response:
0.3 – 150 Hz

Filters:

• baseline filter

• 35 Hz muscle tremor filter

• AC interference filter 50/60 Hz

Recording speeds:
10 / 25 / 50 mm/s

Gain settings:
5, 10, 20 mm/mV or AUTO

Print formats:
3×4, 3×4+1R, 3×4+3R, 6×2, 12×1, 2×6+1R, 6×2+1R

Printer:
Internal thermal printer
Resolution: 8 dots/mm
Paper: Z-fold thermal paper 210 × 280 mm

Power supply:
100–240 V AC, 50/60 Hz

Battery:
Rechargeable lead-acid gel battery 6 V / 5 Ah
Up to approx. 100 ECG printouts per charge

Connectivity:
USB port, SD card slot, CardioPerfect workstation compatibility

Dimensions:
41.1 × 39.7 × 15.7 cm

Weight:
Approx. 5.3 kg (including battery)
