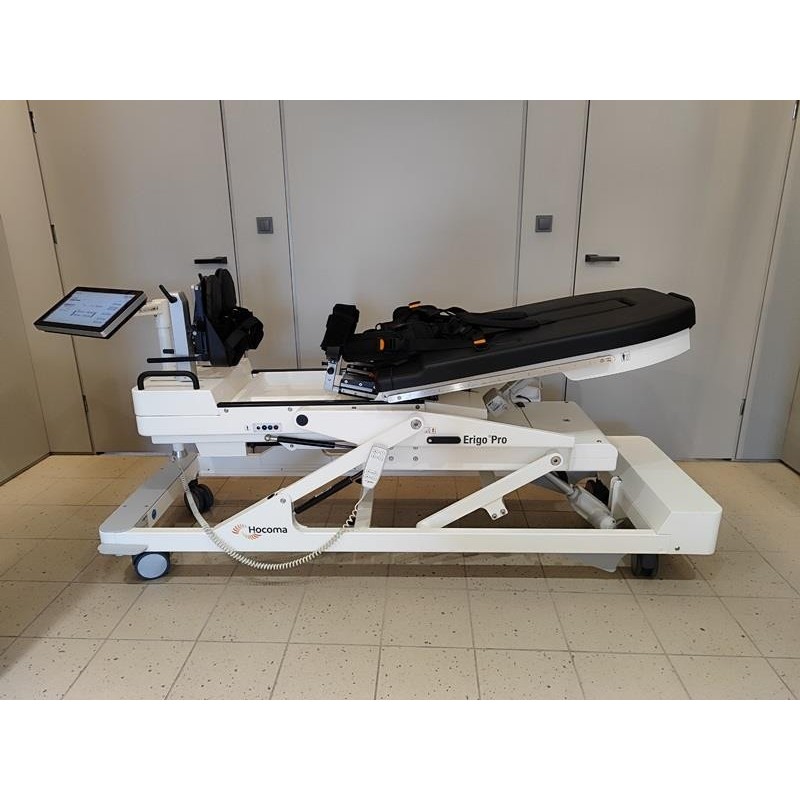

Hocoma Erigo Pro verticalization table

Hocoma Erigo Pro rehabilitation device:

Functions and Features:

• Verticalization: Smooth adjustment of the verticalization angle from 0° to 90°, allowing gradual lifting of the patient into an upright position.

• Lower limb movement: Cyclical leg movements at a speed of 8 to 80 steps per minute, simulating a natural gait.

• Leg loading: Mechanical loading of the lower limbs up to 50 kg, providing sensorimotor stimulation and supporting stabilization in the upright position.

• Electrical Stimulation (FES): Synchronized functional electrical stimulation (FES) increases muscle activation and supports rehabilitation.

User Interface:

• Touchscreen: Intuitive graphical user interface on a 15.5-inch touchscreen (16:9 format) enables adjustment and storage of training parameters.

• Adjustable parameters: Customization of leg movement guidance force (0-100%, symmetrical/asymmetrical), range of motion (0-45°), leg loading, and verticalization angle (0°-90°).

• Additional functions: Various movement patterns available (sinusoidal, gait, alternating leg movement), training history for individual patients, and reporting functions for therapy progress monitoring.

Safety and Comfort:

• Height adjustment: Height adjustment range for patient transfer from 56 to 84 cm facilitates lifting and positioning of the patient.

• Support system: Flexible patient harness system and various leg cuff sizes for individual adjustment and safety during therapy.

• Upper limb support: Optional armrests and headrests enhance patient comfort during therapy sessions.

• Device mobility: Four wheels with a central locking system and directional control of the front wheels allow easy movement of the device.

Technical Data:

• Power supply: Device designed for operation with 220–240 V~ / 50–60 Hz and 110–120 V~ / 50–60 Hz.

• Dimensions: Detailed dimensions and space requirements are available in the manufacturer's technical documentation.

• Operating conditions:

  • Temperature: 10–35 °C

  • Humidity: 20–75% relative humidity

  • Altitude: below 2000 m

  • Atmospheric pressure: 780–1060 hPa

Intended Use:

The Erigo Pro is designed for the early mobilization of patients with circulatory, neurological, or musculoskeletal disorders. It helps increase tolerance for the upright position and supports rehabilitation through muscle stimulation and improved circulation.
