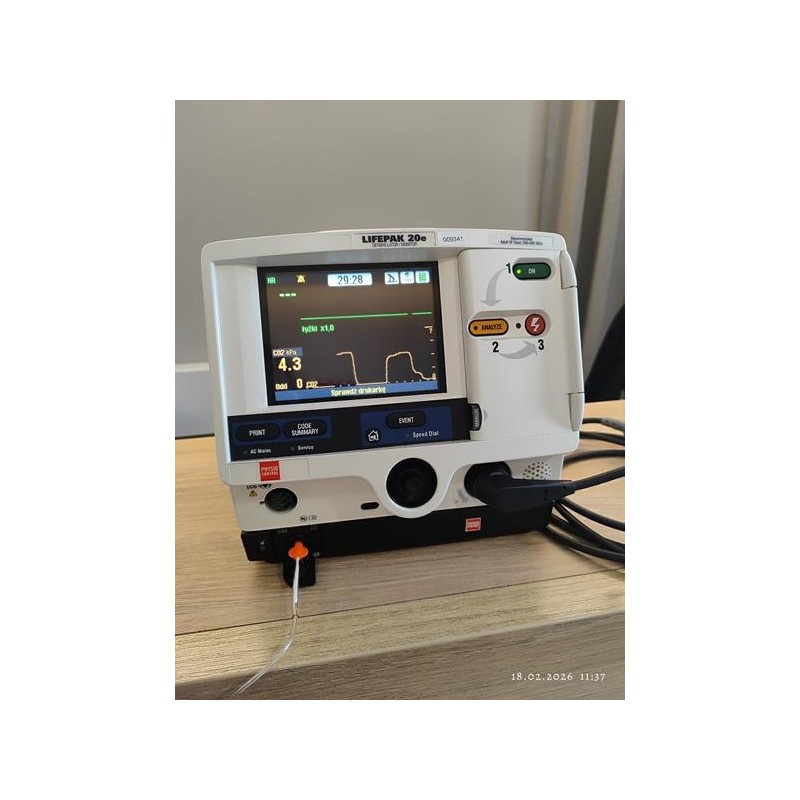

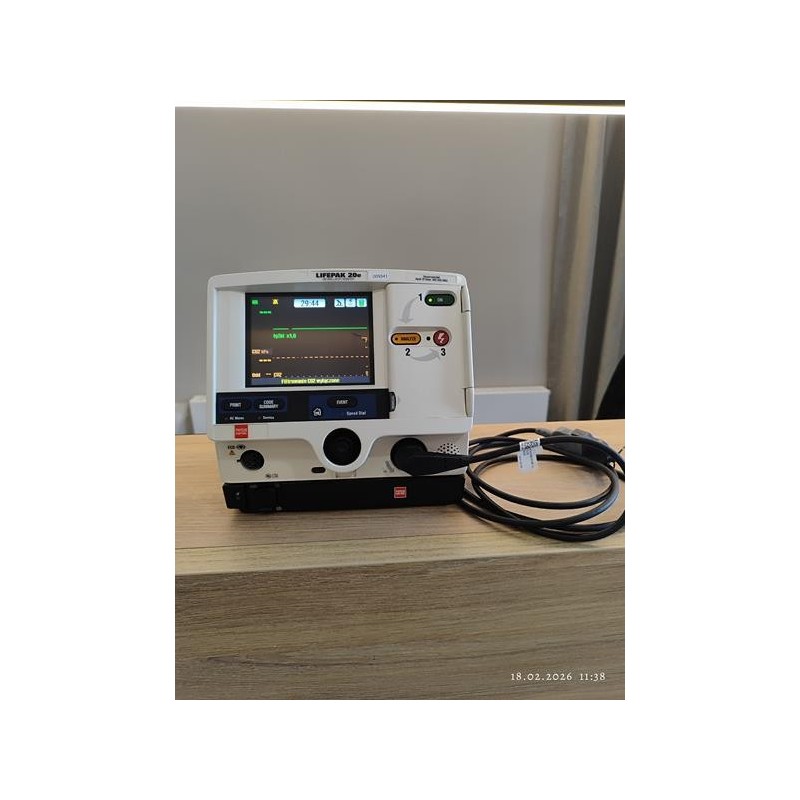

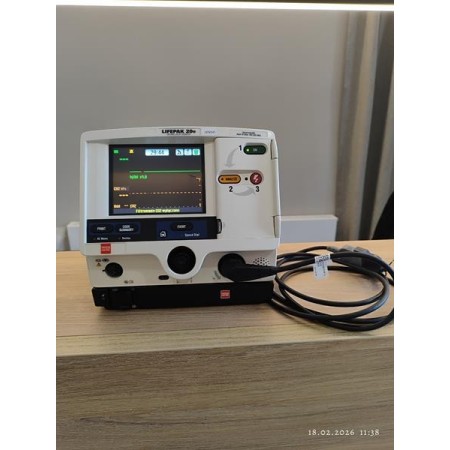

Lifepak 20e Defibrillator with CodeManagement Module

General Information

• Model: LIFEPAK 20e with CodeManagement Module

• Device type: Multi-function defibrillator/monitor for clinical use

• Dimensions (with module): approx. 25.4 × 26.2 × 29.7 cm (H × W × D)

• Weight: approx. 5.6 kg base + 1.6 kg module

• Power: AC 100–120 V or 220–240 V, 50/60 Hz, < 150 VA

• Internal battery: Lithium-ion, approx. 210 min monitoring or ~140 shocks

• Operating temperature: 5 °C – 40 °C

• Relative humidity: 5 %–95 % non-condensing

• Ingress protection: water splash resistance (e.g., IPX1)

Defibrillation & CPR

• AED mode with shock advisory decision support

• Manual defibrillation mode with selectable energy up to 360 J

• CPR quality support technology (e.g., cprMAX™)

• Charge times: < 5 s to 200 J, < 7 s to 360 J (full battery)

Monitoring Capabilities

• ECG: 3- and 5-lead monitoring

• SpO₂: optional advanced pulse oximetry

• EtCO₂: waveform capnography, range 0–99 mmHg

• Respiration rate: 0–99 breaths per minute

• Clear waveform and numeric display

• External pacing (Demand/Non-Demand mode), 40–170 ppm

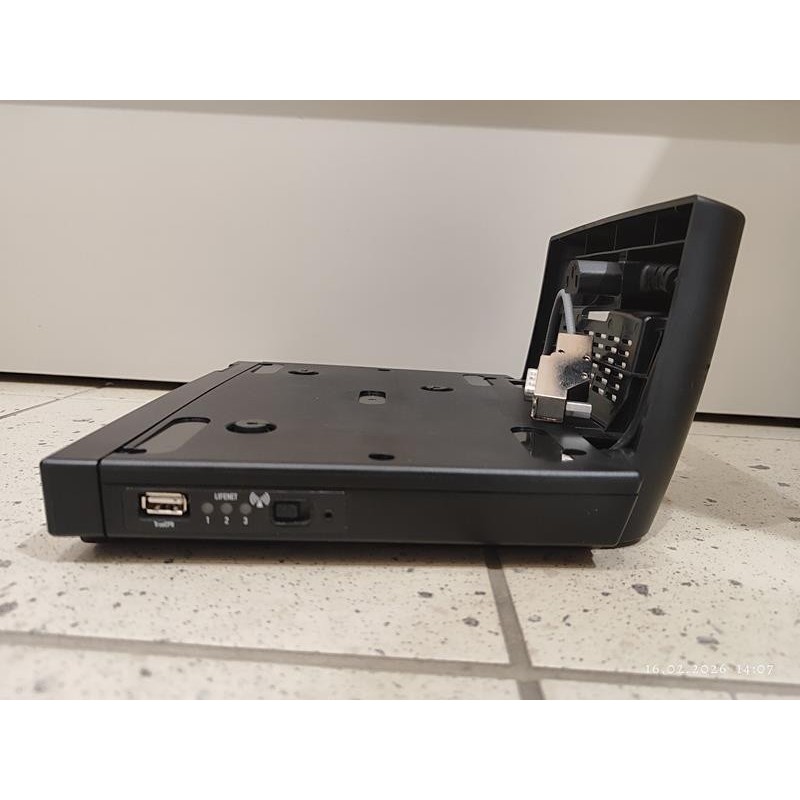

CodeManagement Data Features

• Internal event storage: ECG, CO₂, CPR and patient data

• Wireless data transmission over 802.11a/b/g/n networks

• Support for secure network protocols and IP configuration

• Post-event review and summary reporting
