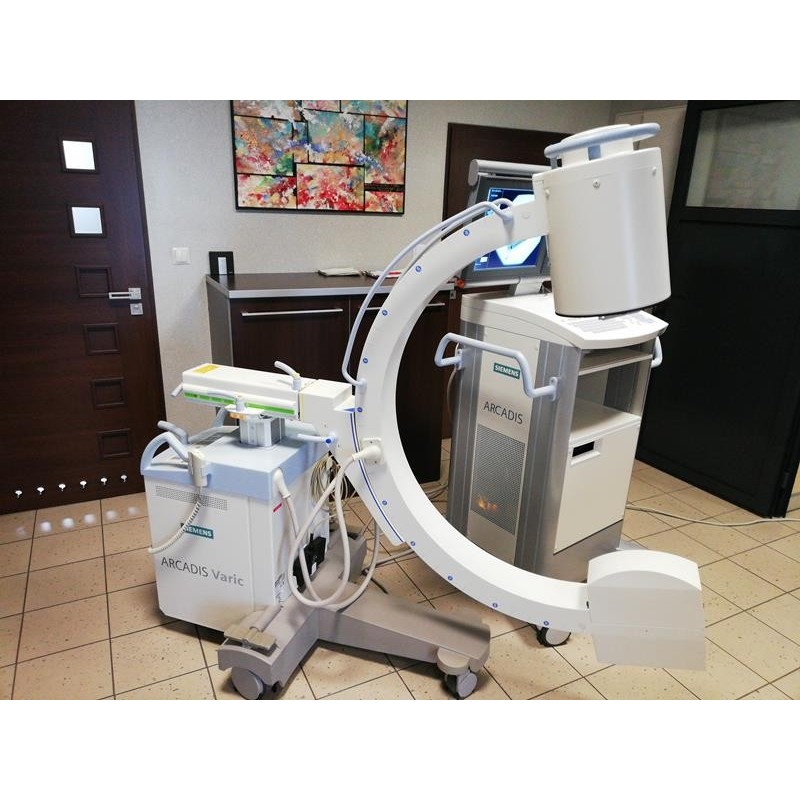

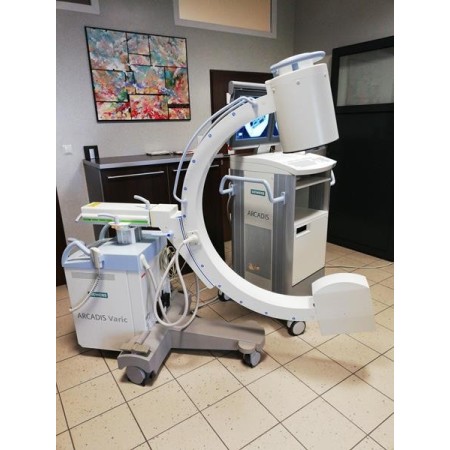

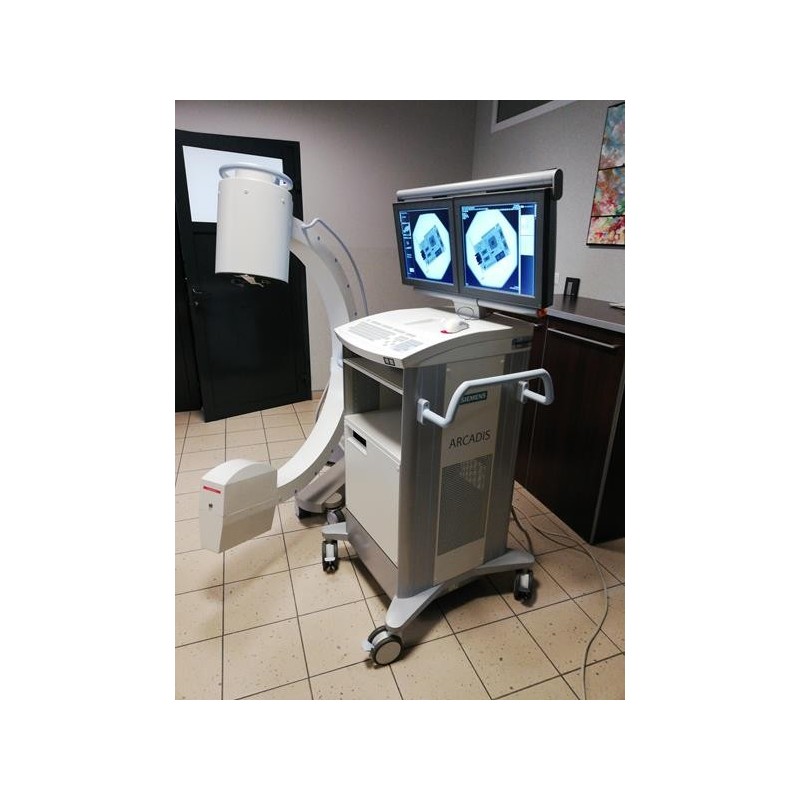

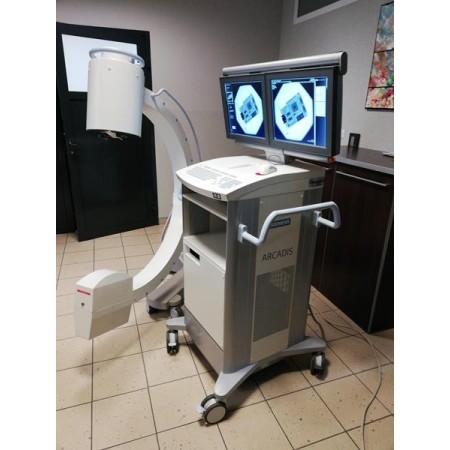

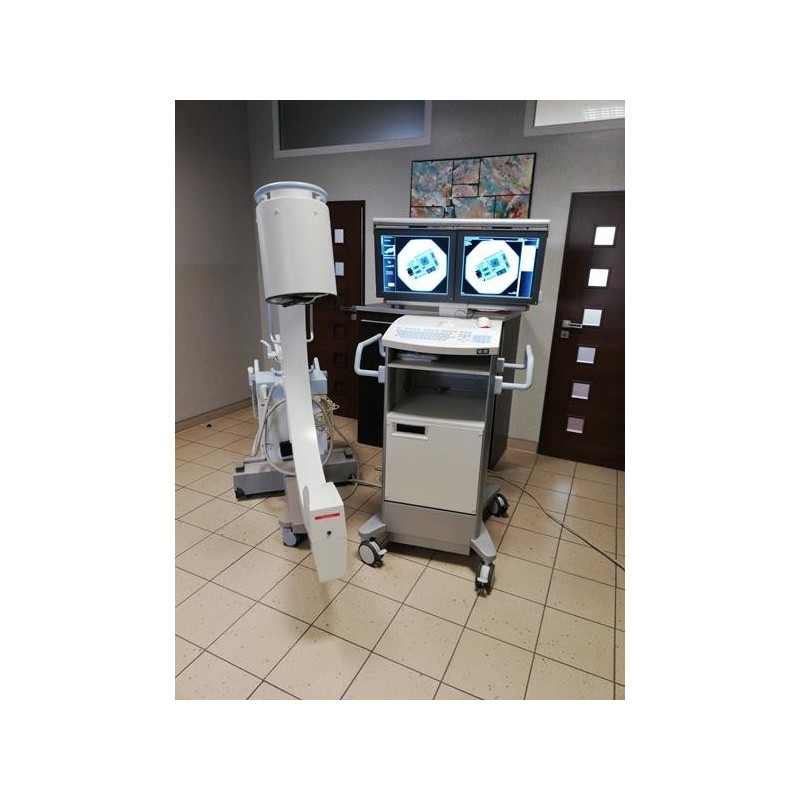

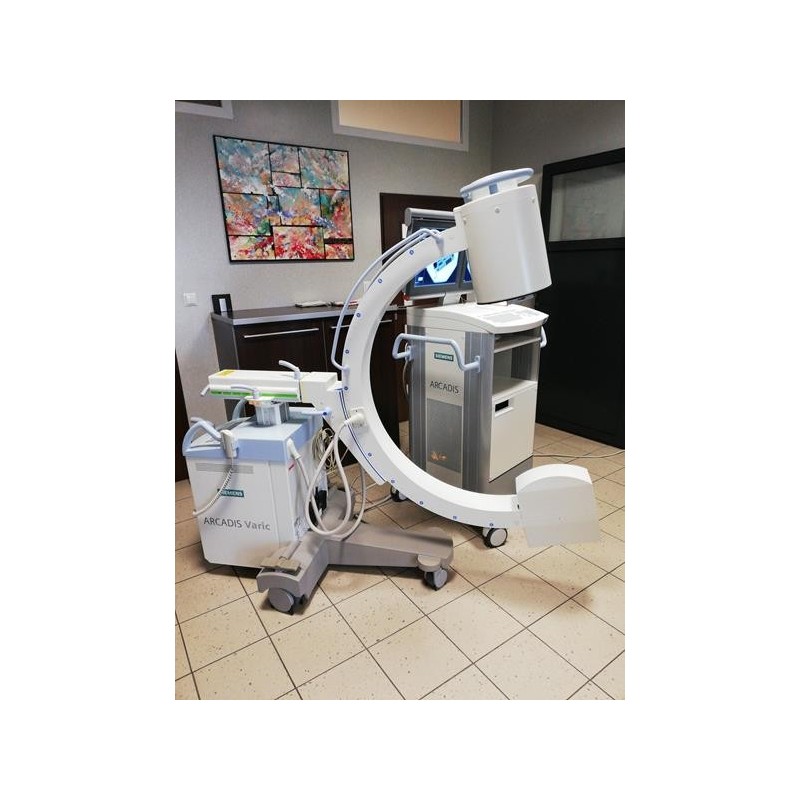

Siemens Arcadis Varic C-Arm X-ray Machine

X-ray Generator

• Nominal Power: 2.3 kW at 100 kVp

• mAs Range: 0,2–5 mAs in 23 steps

• Snapshot (Tube Current): 0.2–23 mA

• Voltage Range: approx. 40–110 kV

• Exposure Time: 0.5–10 s

• Pulsed Fluoroscopy: Yes, up to 15 frames/s

C-Arm

• Image Intensifier: 9″ (optionally 6″)

• Image Resolution: 1024 × 1024 (1K × 1K), 12-bit

• Orbital Rotation: +90°/–40° (total 130°)

• C-Arm Depth: 73 cm

• Free Space Within the C-Arm: 78 cm

• Vertical Movement of Detector (Motorized): 40–45 cm

• Horizontal Travel: 20 cm

• Panning Motion: 12.5°

• Pivot Rotation: 190°

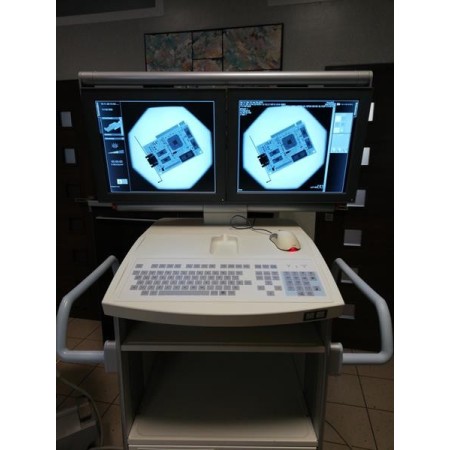

Imaging System and Interface

• Camera: High-resolution CCD camera

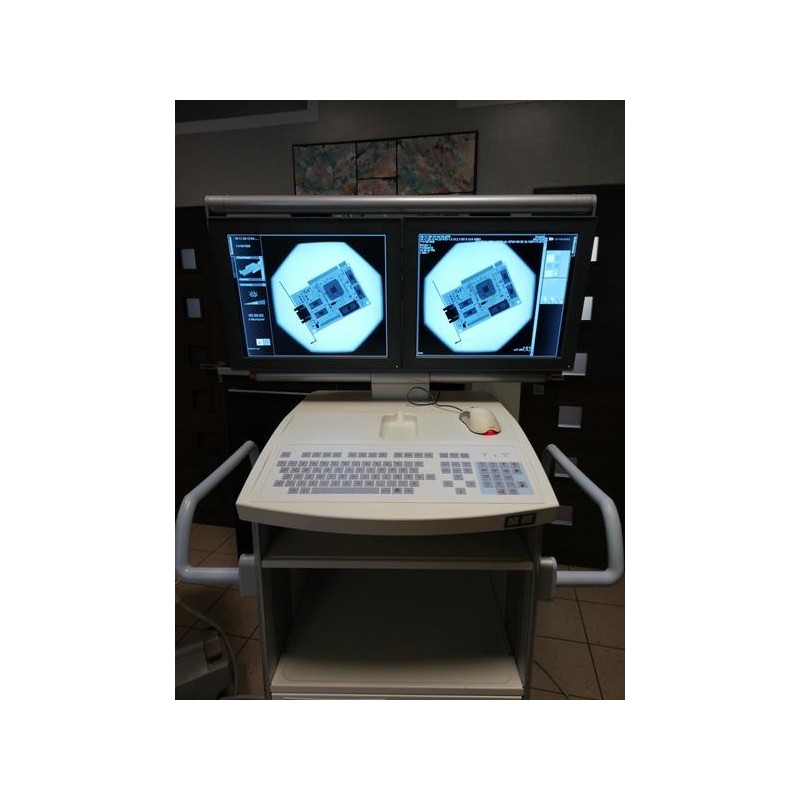

• Monitors: Two 18–19″ LCDs, height adjustable, rotatable by 180°

• Image Memory: Up to 60,000 frames

• Data Export: DICOM 3.0, CD/DVD, USB

📏 Dimensions and Weight

• C-Arm Dimensions: 173 × 81 × 173 cm

• C-Arm Weight: approx. 236 kg

• Monitor Cart Weight: approx. 180–275 kg

• Footprint: approx. 2.4 m²

Power Supply

• Mains Voltage: 230 V, 50/60 Hz

• Power Consumption: < 2.5 kVA
