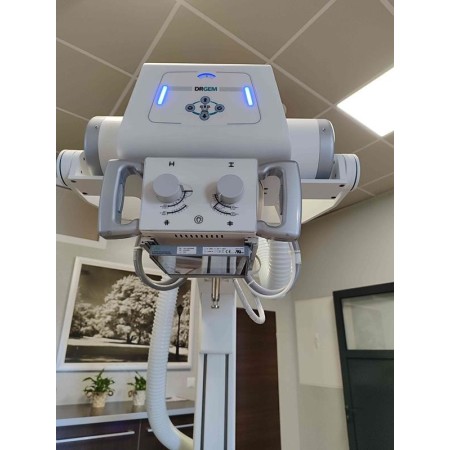

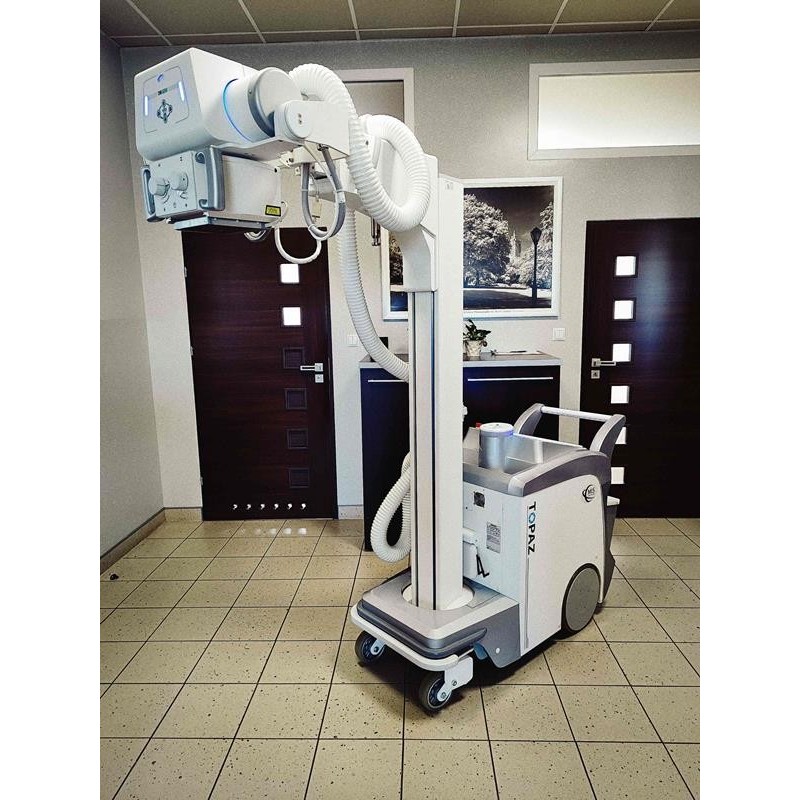

Mobile X-ray machine DR GEM Topaz 32D with WIFI detector
The DR GEM Topaz 32D is a state-of-the-art mobile digital radiography system designed to enhance patient and user comfort. Below are its key features and specifications:
Output Power: 32 kW
Voltage Range (kV): 40–125 kV
Current Range (mA): 10–400 mA
mAs Range: 0.1–500 mAs
Digital Detector:
Size: 14×17 inches
Type: Wireless
Scintillator: Cesium Iodide (CsI) or Gadolinium Oxysulfide (GOS)
Mobility: Equipped with a motorized drive mechanism for quiet and smooth movement.
User Interface: LCD touchscreen provides intuitive operation and selection of technical parameters.
Collimator: Motorized X-ray collimator.
Additional Features:
Dose Area Product (DAP) Meter: Monitors radiation dose.
Easily Detachable High-Resolution Grid: Facilitates adaptation to various procedures.
Advanced RADMAX Software: Optimizes image quality and streamlines workflow.
Safety: Safety bumper and brake with LED indicator.
Storage: Built-in compartment for the detector and other accessories.
These features make the DR GEM Topaz 32D an efficient solution for high-quality radiographic imaging in diverse medical environments.
