OrthoScan Mini C-Arm X-Ray Machine
X-ray machine with C-arm ZIEHM VISION VARIO 3D FD
The Ziehm Vision FD Vario 3D is an...
- Temporarily unavailable
Ziehm 8000 Compact C-arm X-ray machine
Hologic InSight 2 Mini C-Arm X-Ray Machine
Ziehm Solo C-arm X-ray machine
- Temporarily unavailable
GE OEC Fluorostar 7900 C-arm X-ray Machine
The GE OEC Fluorostar 7900 is a mobile X-ray C-arm designed for fluoroscopic applications in...
Mobile X-ray machine DR GEM Topaz 32D with WIFI detector
The DR GEM Topaz 32D is a state-of-the-art mobile...
Siemens Cios Connect C-arm X-ray machine
- Temporarily unavailable
GE OEC 9900 Elite C-arm X-ray machine
Generator:
- ...
- New
Hologic InSight 2 FD Mini C-Arm X-Ray Machine
Hologic Fluoroscan InSight 2 FD system:
-
Temporarily unavailable
Hologic InSight FD 2 Mini C-Arm X-Ray Machine
Hologic Fluoroscan InSight 2 FD system:

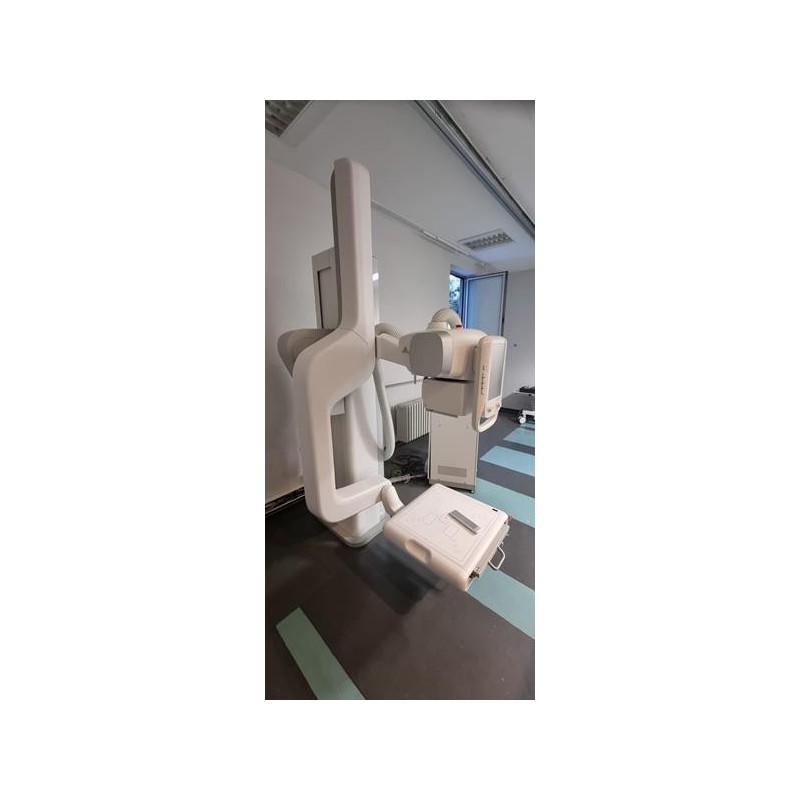

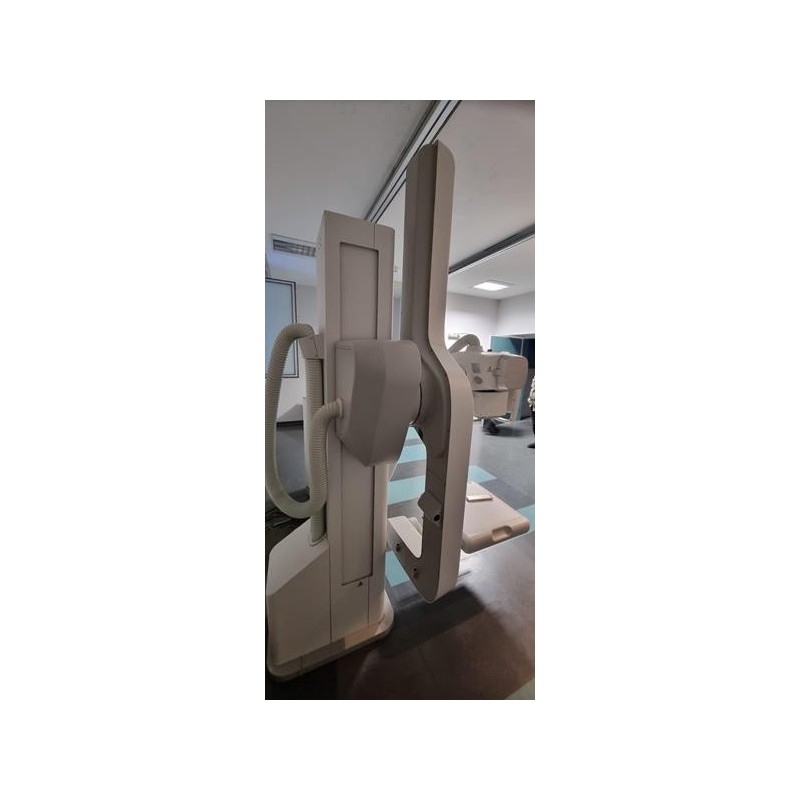

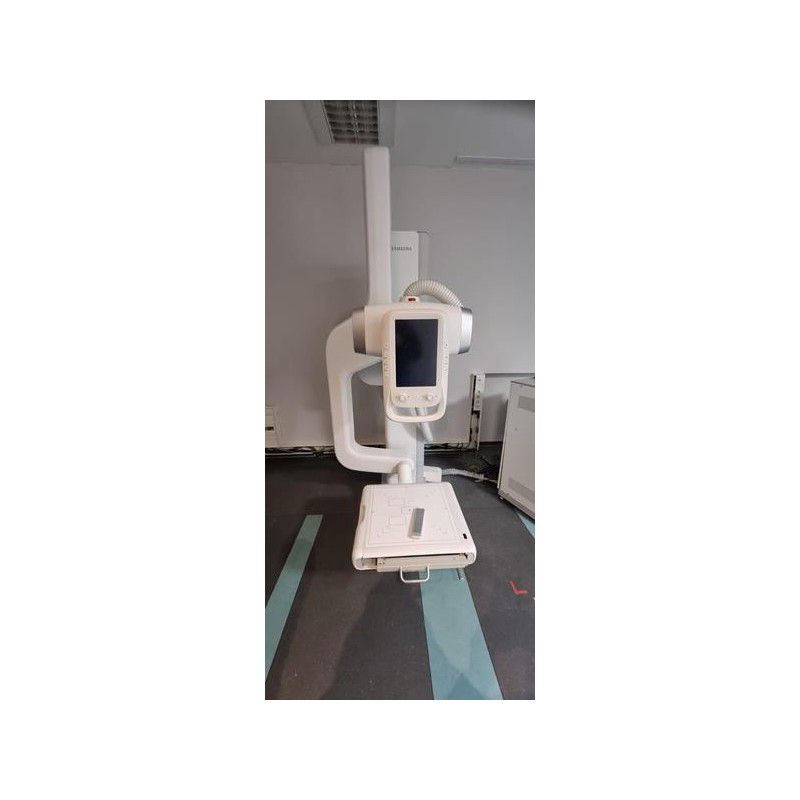

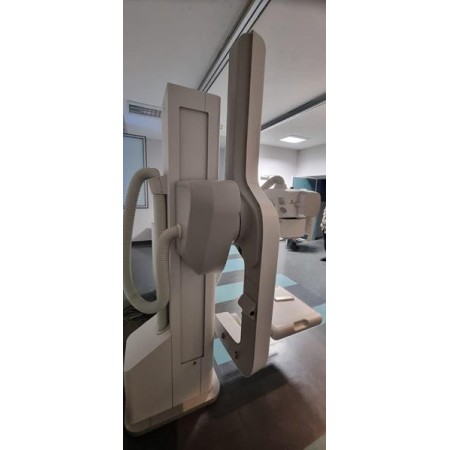

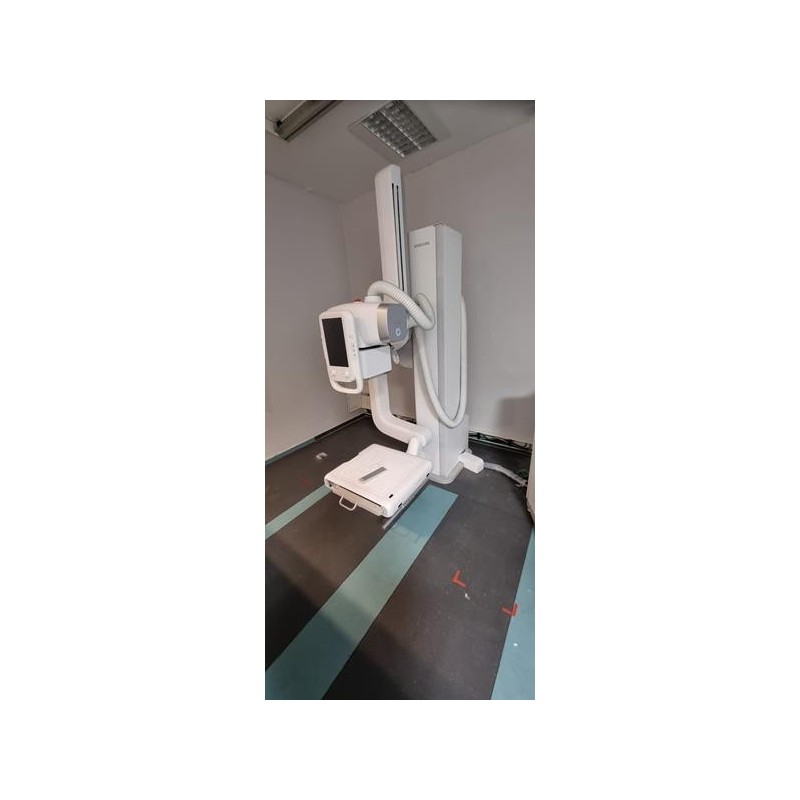

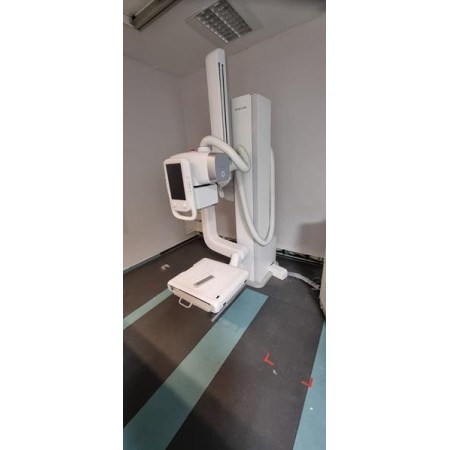

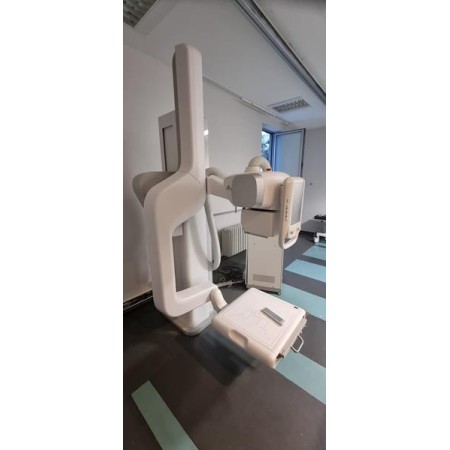

The XGEO GU60A is a universal, fully motorized system. Its unique U-arm rotates +120°~ -30°,
and the SID travels 100cm~180cm to enable any examination in any position.
Chest or shoulder X-rays are made easier for wider shoulders by rotating the detector 45°.
The XGEO GU60A also provides dual-speed movement to improve user convenience,
and the fast-moving arm increases the system throughput.
Swivel arm: Rotation Angle: -30° ~ +120°, Vertical Transverse Distance: 1190mm
SID (X-ray Tube Moves): Moving Distance : 800mm, Moving Range : 1000~1800mm
THU Rotation Angle: -90° ~ +90°
Receptor Rotation Angle: 0˚, 45˚
Receptor Tilting Angle: -45°~+45°
High Voltage Generator
Max. Output : 65 kW
Exposure voltage: 40~ 150kV (1kV step)
Switching frequency: 200kHz
Line voltage: 380/400VAC, 3-Phase, 50/60Hz
mA range: 10~800mA (65kW)
Time range: 0.001~ 6.3 sec.
Generator cabinet dimensions (L ×W× H): 567mm× 750mm× 1112mm
- Temporarily unavailable
Hologic InSight FD 2 Mini C-Arm X-Ray Machine
Hologic Fluoroscan InSight 2 FD system:
The XGEO GU60A is a universal, fully motorized system. Its unique U-arm rotates +120°~ -30°,
and the SID travels 100cm~180cm to enable any examination in any position.
Chest or shoulder X-rays are made easier for wider shoulders by rotating the detector 45°.
The XGEO GU60A also provides dual-speed movement to improve user convenience,
and the fast-moving arm increases the system throughput.
Swivel arm: Rotation Angle: -30° ~ +120°, Vertical Transverse Distance: 1190mm
SID (X-ray Tube Moves): Moving Distance : 800mm, Moving Range : 1000~1800mm
THU Rotation Angle: -90° ~ +90°
Receptor Rotation Angle: 0˚, 45˚
Receptor Tilting Angle: -45°~+45°
High Voltage Generator
Max. Output : 65 kW
Exposure voltage: 40~ 150kV (1kV step)
Switching frequency: 200kHz
Line voltage: 380/400VAC, 3-Phase, 50/60Hz
mA range: 10~800mA (65kW)
Time range: 0.001~ 6.3 sec.
Generator cabinet dimensions (L ×W× H): 567mm× 750mm× 1112mm
The XGEO GU60A is a universal, fully motorized system. Its unique U-arm rotates +120°~ -30°,
and the SID travels 100cm~180cm to enable any examination in any position.
Chest or shoulder X-rays are made easier for wider shoulders by rotating the detector 45°.
The XGEO GU60A also provides dual-speed movement to improve user convenience,
and the fast-moving arm increases the system throughput.
Swivel arm: Rotation Angle: -30° ~ +120°, Vertical Transverse Distance: 1190mm
SID (X-ray Tube Moves): Moving Distance : 800mm, Moving Range : 1000~1800mm
THU Rotation Angle: -90° ~ +90°
Receptor Rotation Angle: 0˚, 45˚
Receptor Tilting Angle: -45°~+45°
High Voltage Generator
Max. Output : 65 kW
Exposure voltage: 40~ 150kV (1kV step)
Switching frequency: 200kHz
Line voltage: 380/400VAC, 3-Phase, 50/60Hz
mA range: 10~800mA (65kW)
Time range: 0.001~ 6.3 sec.
Generator cabinet dimensions (L ×W× H): 567mm× 750mm× 1112mm
