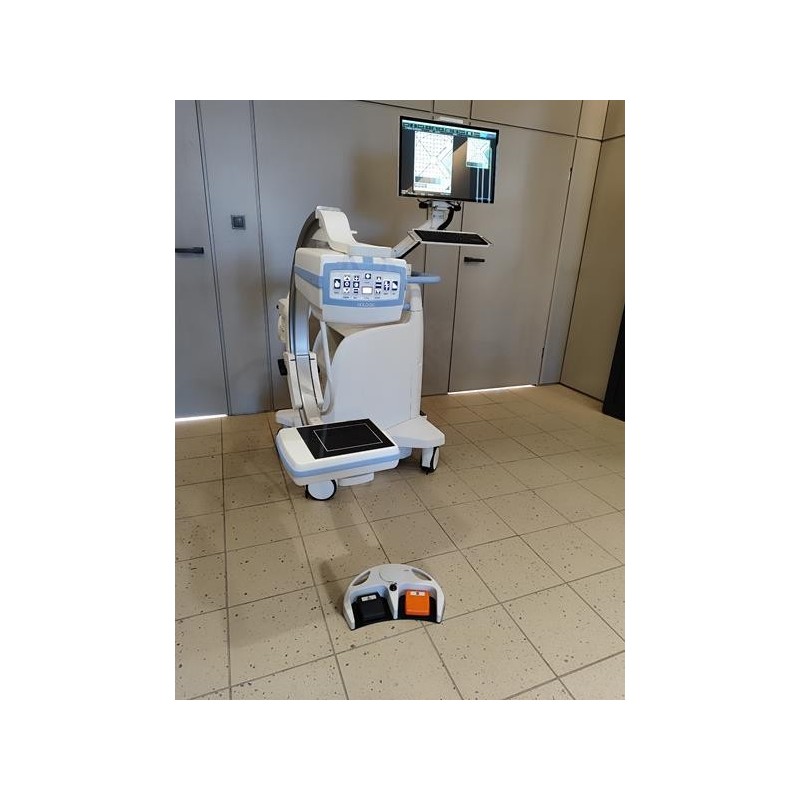

Hologic InSight FD 2 Mini C-Arm X-Ray Machine

Hologic Fluoroscan InSight 2 FD system:

Image Detector:

• Type: Flat-panel detector enabling imaging of long bones and improving image quality due to the rotating design of the detector and collimator.

X-ray Source:

• X-ray Tube: Tungsten anode with a power of 7.5 W and high frequency operation.

• Voltage range (kVp): 40–75 kVp.

• Current range (mA): 0.020–0.100 mA.

Monitor and User Interface:

• Monitor: 20-inch LCD panel with a high resolution of 1k x 1k, with a touch function.

• Control Panel: Integrated keyboard for easy system operation.

Memory and Data Storage:

• Hard Drive: SSD memory capable of storing up to 10,000 images.

• File Formats: JPEG, TIFF, DICOM, Fluoroscan, or native format.

Imaging Functions:

• Image Processing: Real-time automatic noise reduction, edge enhancement, and dose control.

• DICOM Options: Storage with annotations, printing, modality listing, and storage confirmation.

Dimensions and Mobility:

• Dimensions: Compact design with a rotating monitor arm, providing ease of maneuvering and positioning.

• Mobility: Easy transport thanks to a well-thought-out design and caster wheels.

Power Supply:

• Input Voltage: Options for 100, 120, 220, or 240 V AC.

The Hologic Fluoroscan InSight 2 FD offers advanced imaging features, high image quality, and an intuitive interface, making it an ideal solution for medical facilities specializing in the diagnosis and treatment of limb conditions.
