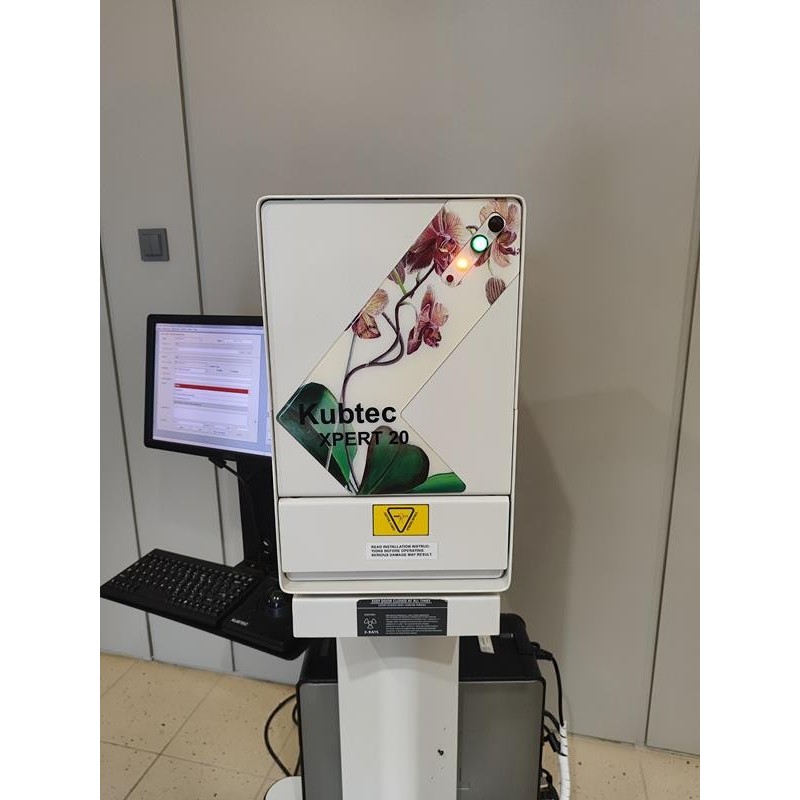

Kubtec Xpert 20 Radiography and Sampling System

Digital compact specimen radiography X-ray system

Applications:

• Breast biopsy specimen imaging
• Identification of microcalcifications
• Verification of biopsy samples in mammography and stereotactic biopsy suites
• Rapid assessment of collected tissue before pathology examination

Technical Parameters:

• Detector / imaging area: 3” × 5” (approx. 7 × 12 cm) CMOS 16-bit
• Spatial resolution:
  • 10.4 lp/mm in contact mode
  • up to 15.6 lp/mm in magnification mode
• X-ray tube focal spot: 50 µm nominal
• Tube voltage range: 10–25 kV
• Tube current: up to 1.0 mA
• Window filtration: beryllium 0.005” (0.125 mm)
• Geometric magnification: 1.4×
• Automatic Exposure Control (AEC)
• Automatic system calibration
• Automatic image leveling

Software and Communication:

• DICOM compliant
• PACS image transfer capability
• Image annotation functions
• Image archiving and printing
• Modality Worklist support
• Standard wireless communication

System Construction:

• Fully shielded X-ray enclosure
• Compact tabletop design

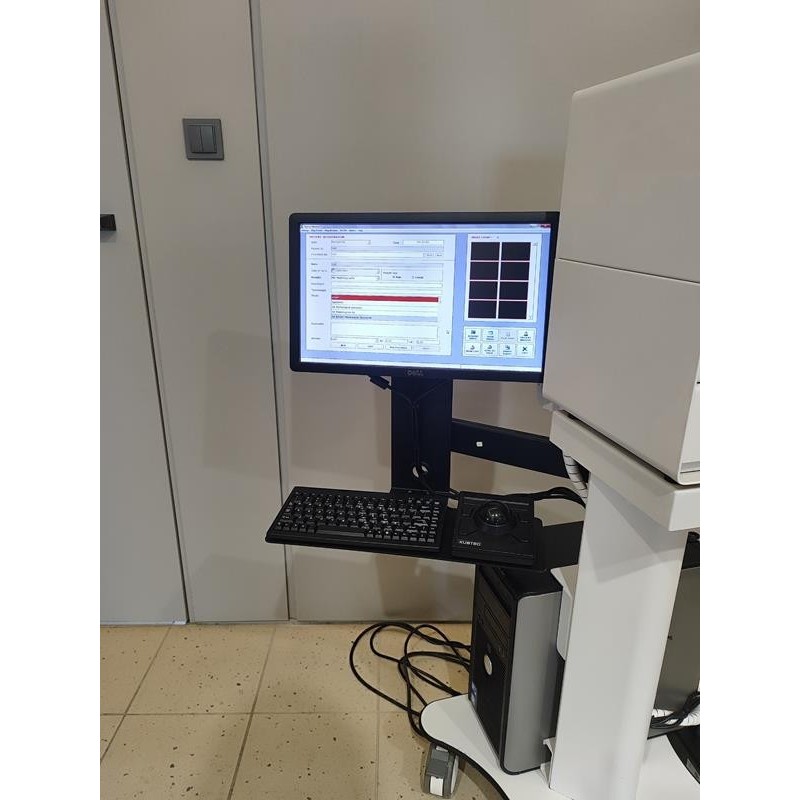

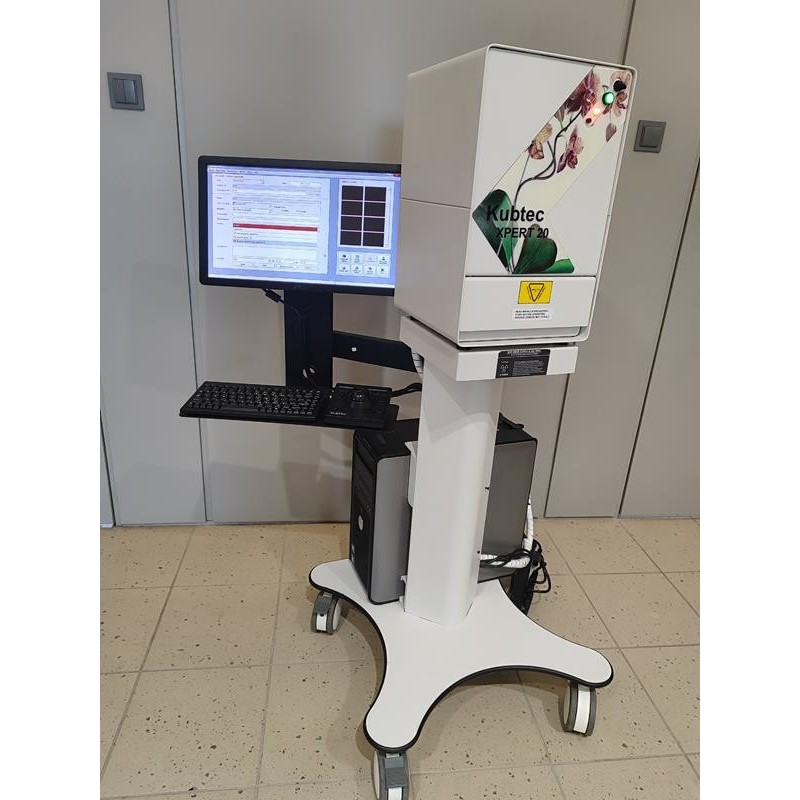

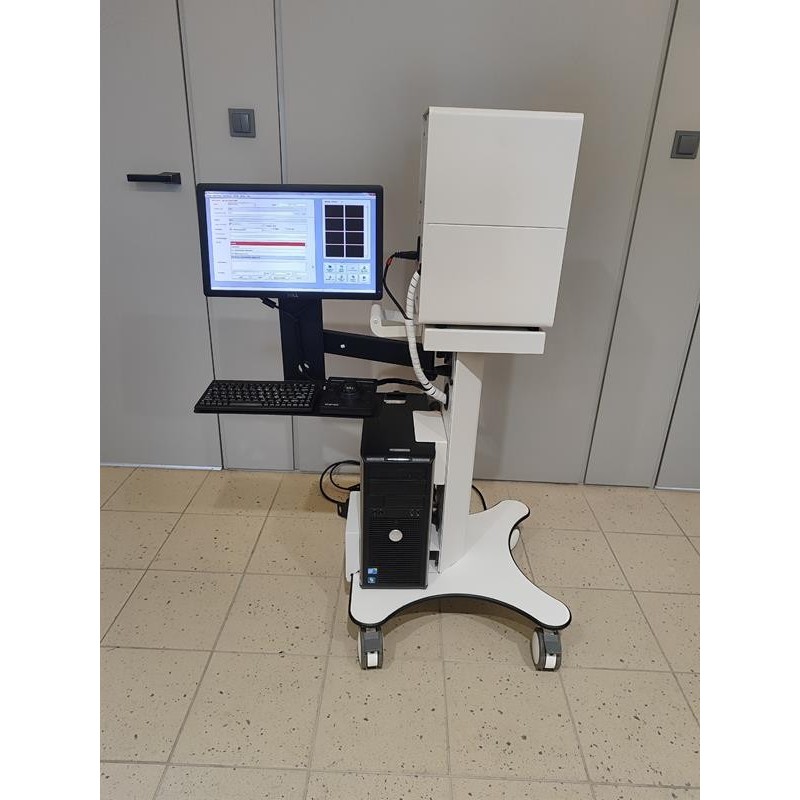

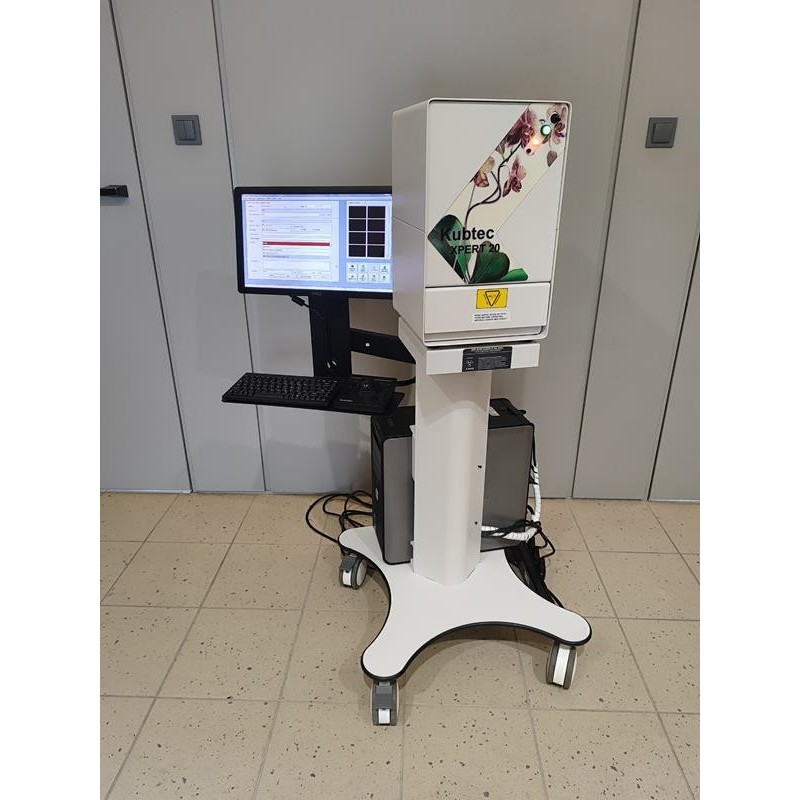

• Optional mobile cart installation
• No dedicated specimen containers required

Dimensions and Weight:

• Dimensions: approx. 28 × 30.5 × 51 cm
• Weight without cart: approx. 32 kg
• Weight with cart: approx. 77 kg

Power Supply:

• 90–250 VAC
• 50/60 Hz
• Power consumption approx. 400–500 VA

Key Features:

• Zero warm-up time
• Fast image acquisition within seconds
• Ability to image multiple biopsy cores in a single exposure
• Compact footprint — approximately 30% smaller than comparable Faxitron CoreVision systems
• High visibility of microcalcifications and small lesions
