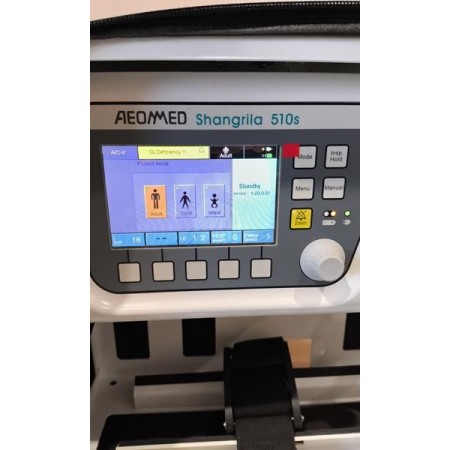

Aeonmed Shangrila 510S Transport Ventilator

Ventilation Modes

• A/C (Assist-Control) – assisted breathing with control capabilities.

• A/C-V (Volume Control Ventilation) – volume-controlled ventilation.

• A/C-P (Pressure Control Ventilation) – pressure-controlled ventilation.

• SIMV (Synchronized Intermittent Mandatory Ventilation) – synchronized intermittent ventilation.

• CPAP (Continuous Positive Airway Pressure) – continuous positive airway pressure.

• SPONT (Spontaneous) – spontaneous breathing.

• Manual – manual breathing control.

• SIGH – additional deep breath every 100 cycles.

Ventilation Parameters

• Tidal Volume (VT): 0–2,000 ml.

• Respiratory Rate:

  • A/C: 1–120 breaths/min

  • SIMV: 1–40 breaths/min

• I:E Ratio: from 1:4 to 2:1.

• FiO₂: adjustable from 40% to 100%.

• PEEP: 0–30 cmH₂O.

• Trigger Sensitivity: pressure-based, from -20 to 0 cmH₂O.

Monitoring and Alarms

• Monitored Parameters:

  • Peak Airway Pressure (Ppeak)

  • Tidal Volume (Vt), Minute Volume (MV)

  • Total Respiratory Rate (f_total)

  • Waveforms: pressure-time, flow-time

• Alarms:

  • High/low airway pressure

  • Apnea

  • AC power failure

  • Low battery

  • Oxygen deficiency

  • Lack of tidal volume

Power Supply and Consumption

• Power Supply: AC 100–240 V, 50/60 Hz; DC 12 V.

• Battery: built-in, rechargeable.

• Battery Life:

  • Single battery: minimum 4.5 hours

  • Dual battery: minimum 10 hours

• Power Consumption: ≤65 VA.

Gas Supply

• Gas: Oxygen (O₂).

• Input Pressure: 0.28–0.6 MPa (250–600 kPa).

• Maximum Safety Pressure: ≤6 kPa.

• Compliance: ≤4 ml/100 Pa.

Dimensions and Weight

• Dimensions: 168 × 156 × 300 mm.

• Weight: 3.2 kg.

• Display: 5-inch color TFT LCD.

• Communication Ports: RS232.
