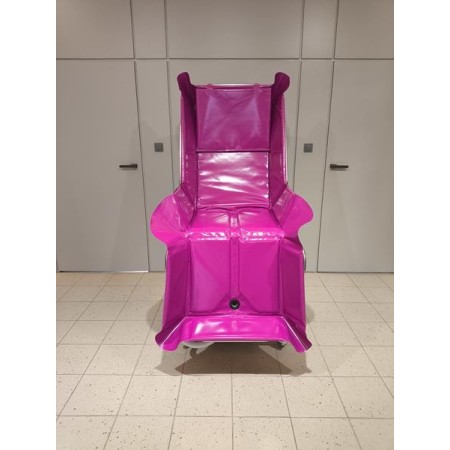

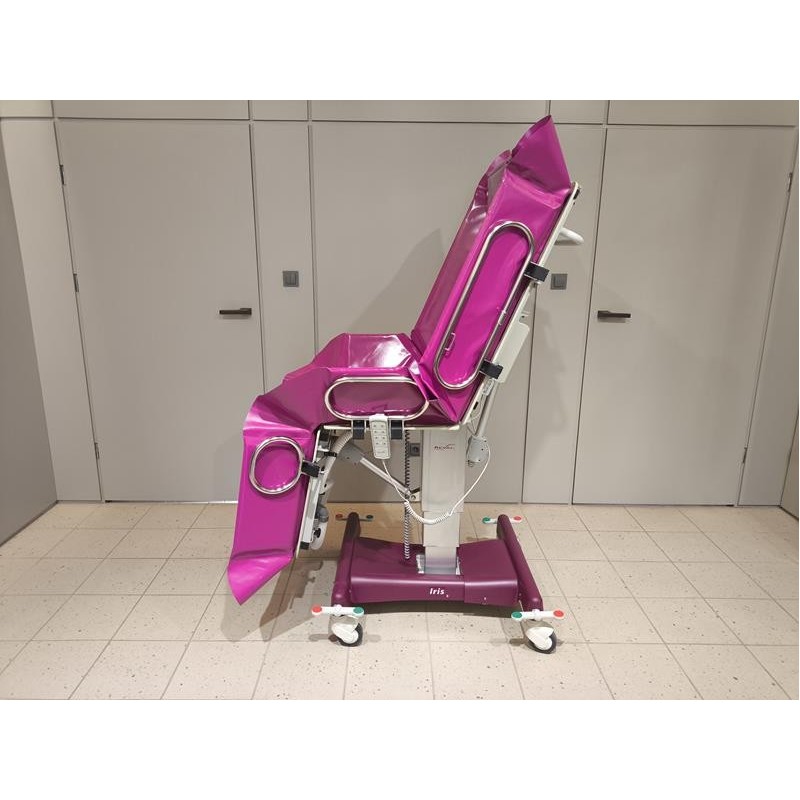

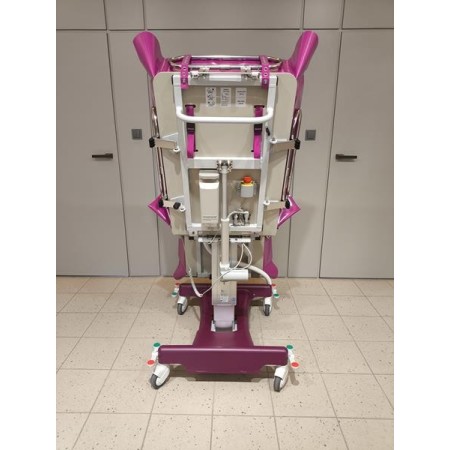

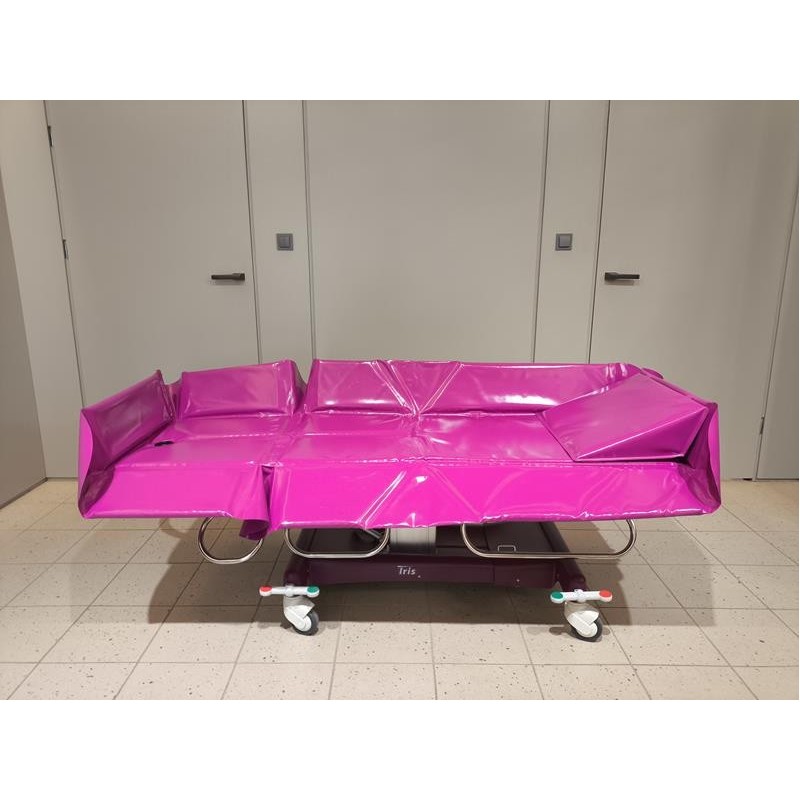

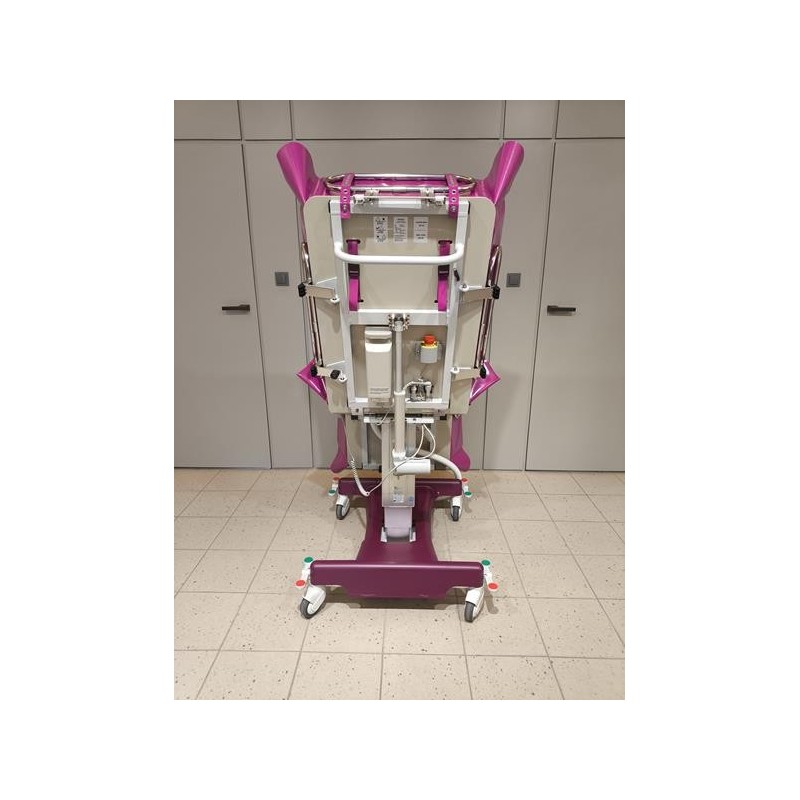

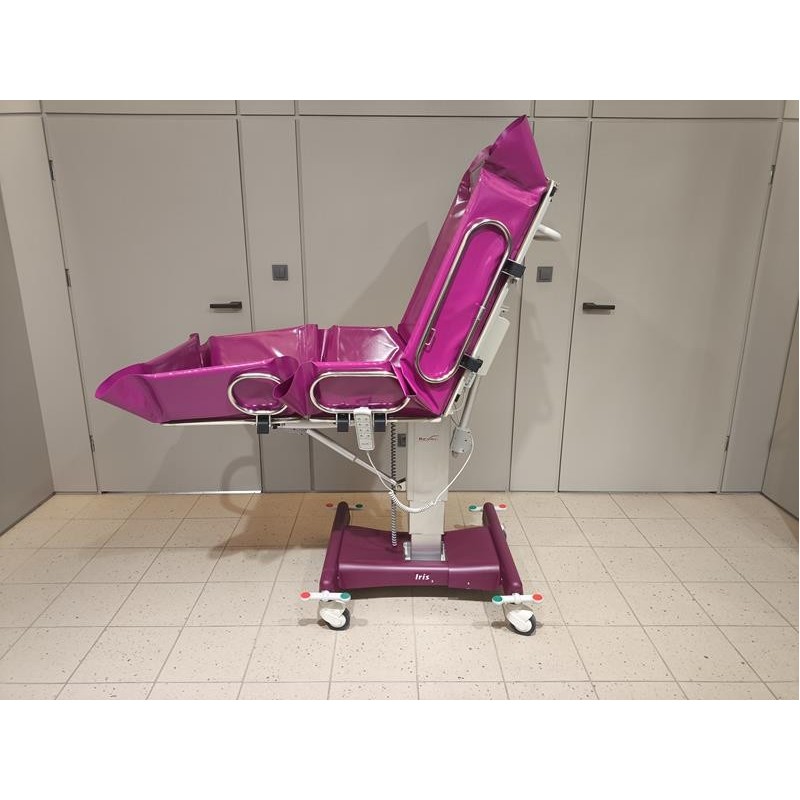

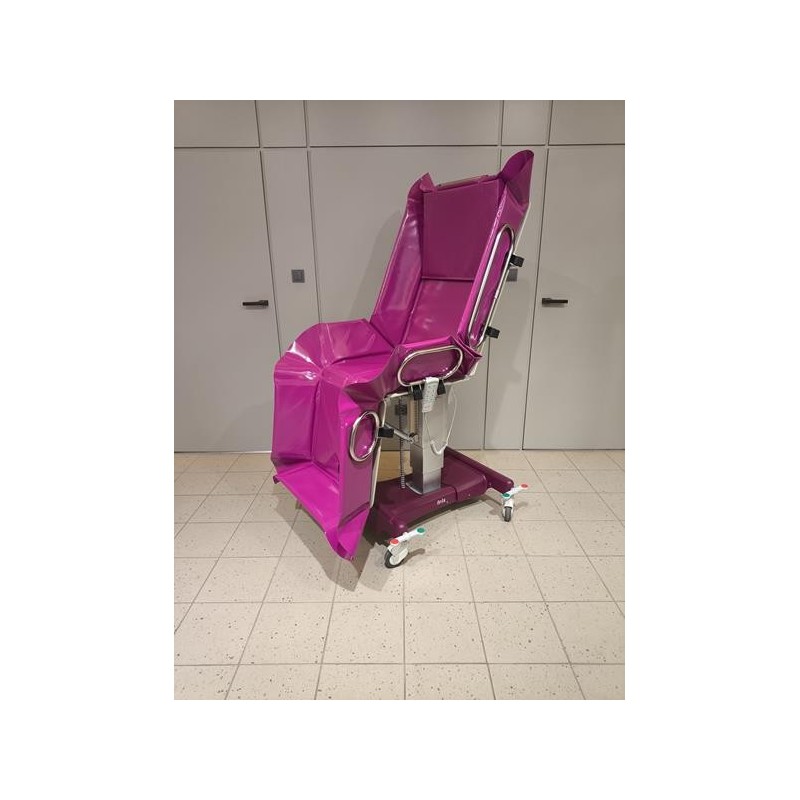

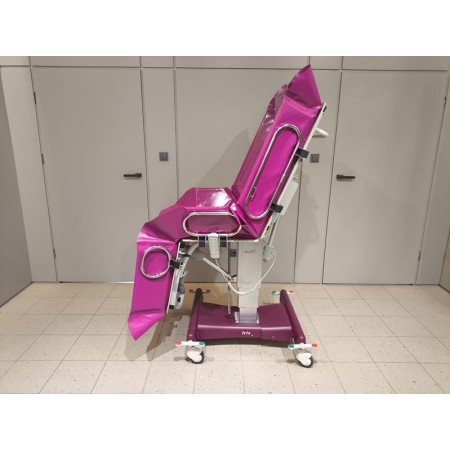

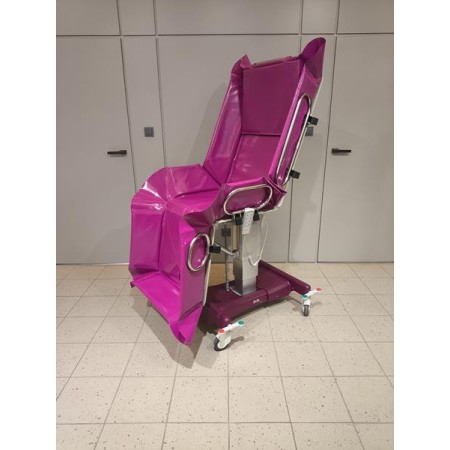

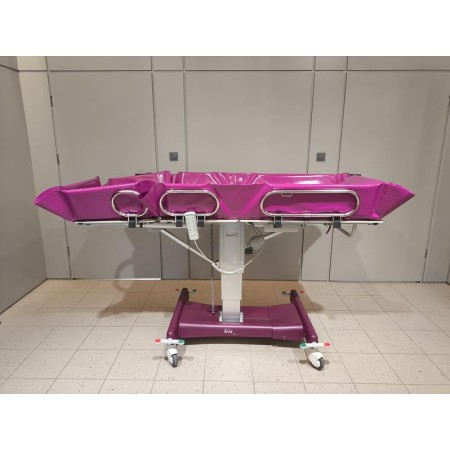

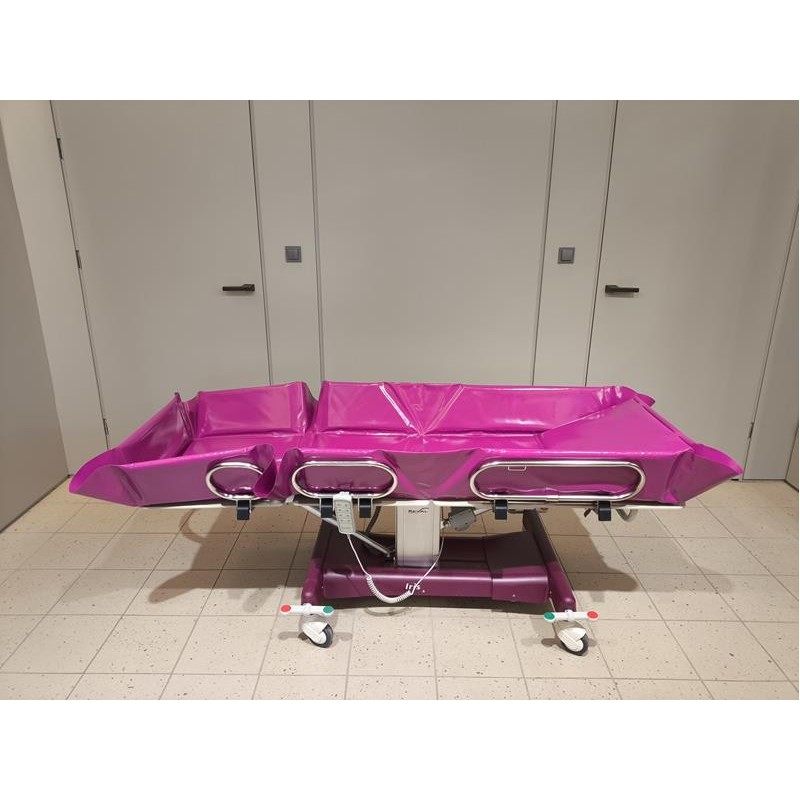

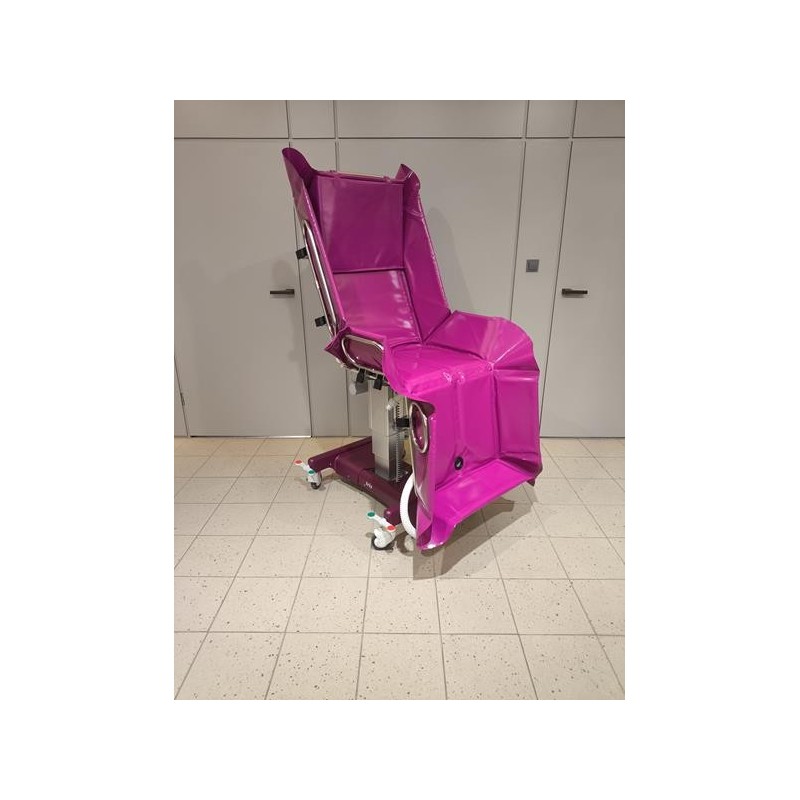

Reval Iris 3600 Shower Table

Model: Iris 3600
Purpose: Mobile height-adjustable shower table with a profiled shower platform.

Technical Data:
- Maximum safe working load: 160 kg
- Device weight: approx. 74 kg
- Height adjustment: Electric, vertical column lift
- Platform sections: 3 sections (head, back/torso, legs), made of polypropylene

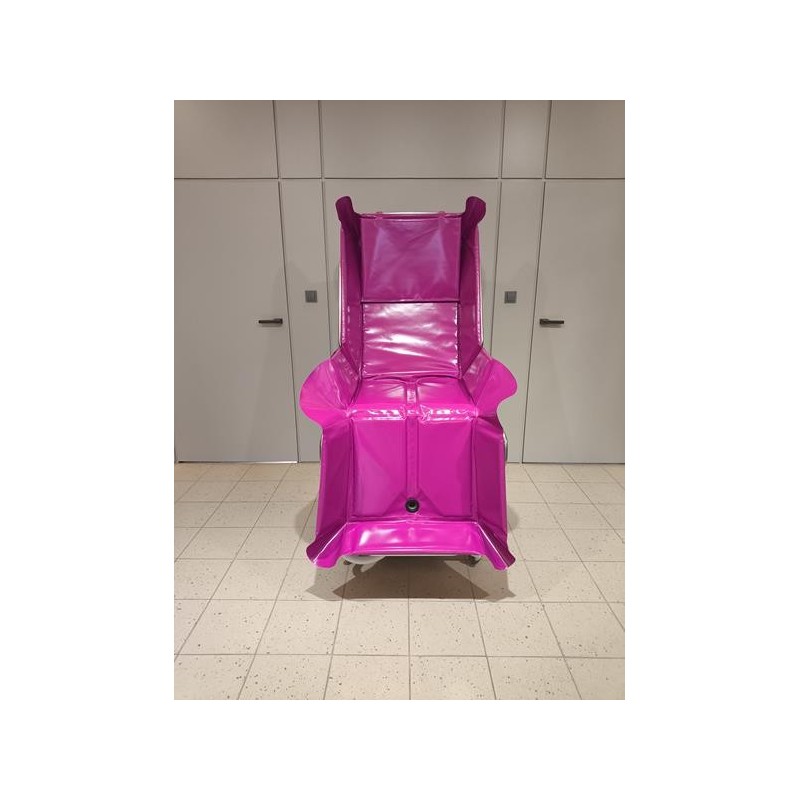

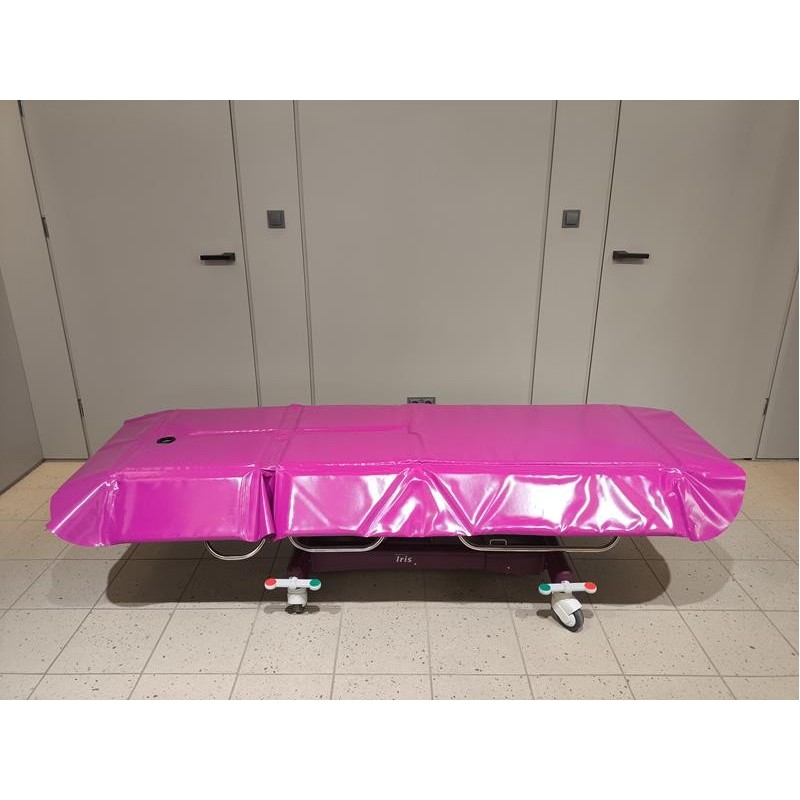

- Mattress: Waterproof PVC, soft, with high side edges; includes 2 triangular cushions
- Side rails: 6 steel protective side rails + removable foot rail
- Drainage: Integrated drain outlet with 40 mm hose
- Actuators: 24 V DC, IPX6 (height lift, backrest lift, leg section lift, retractable chassis lift)

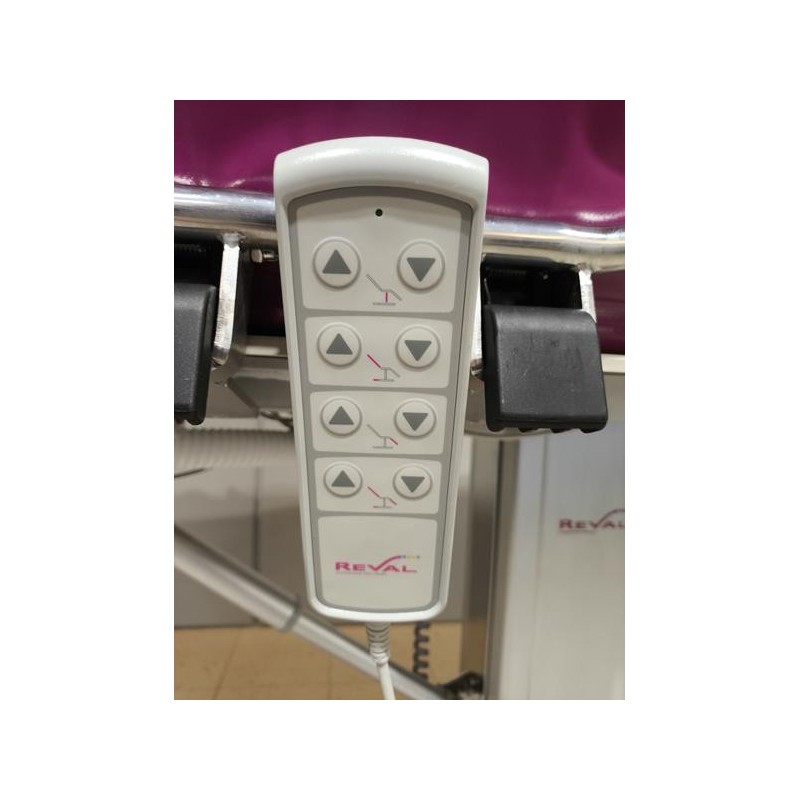

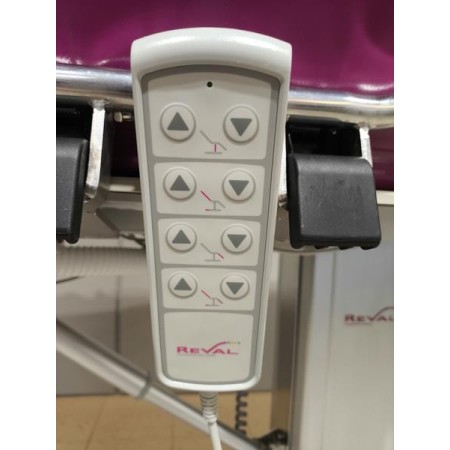

- Control: Hand control with 8 functions, IPX6
- Power supply: 24 V / 5 Ah rechargeable battery with charger
- Chassis: Aluminium, painted; 4 castors with brakes and one directional wheel; steering handle
