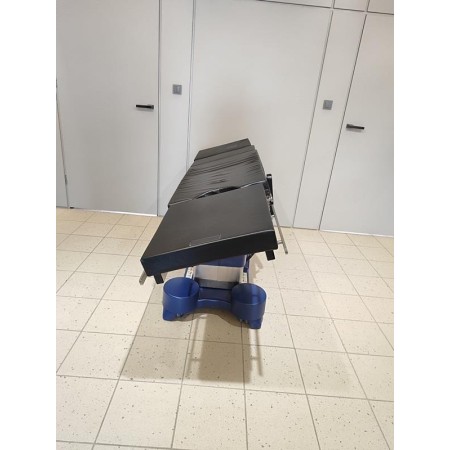

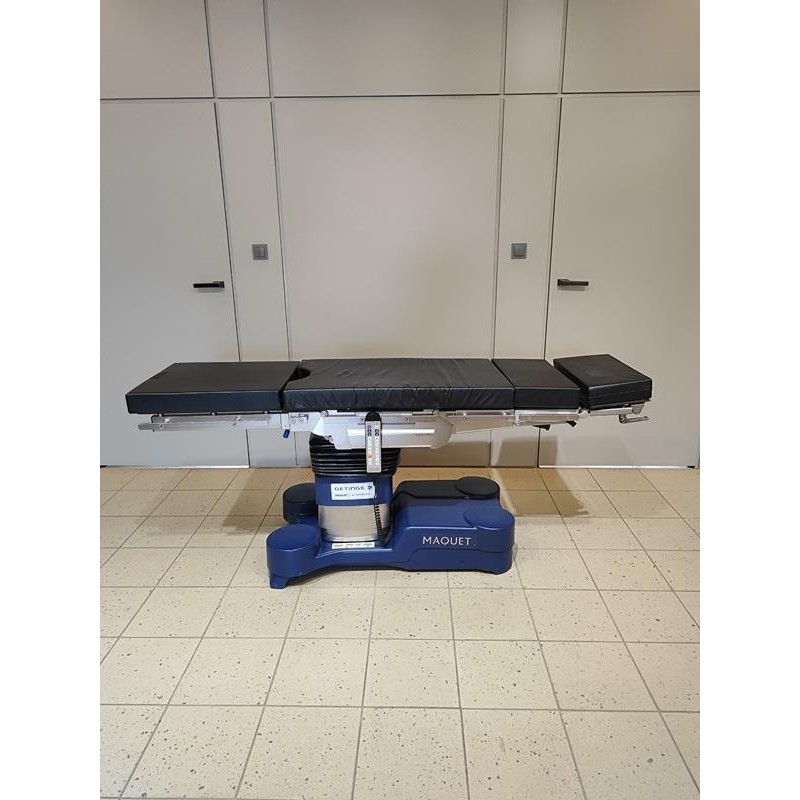

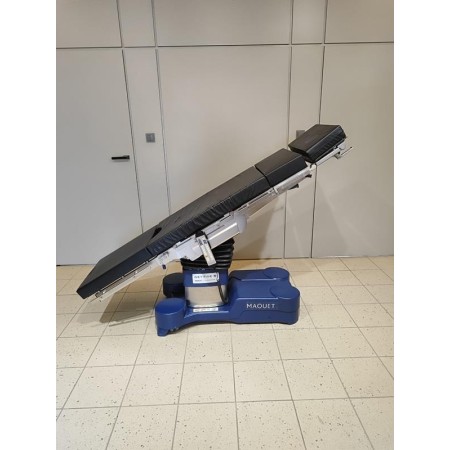

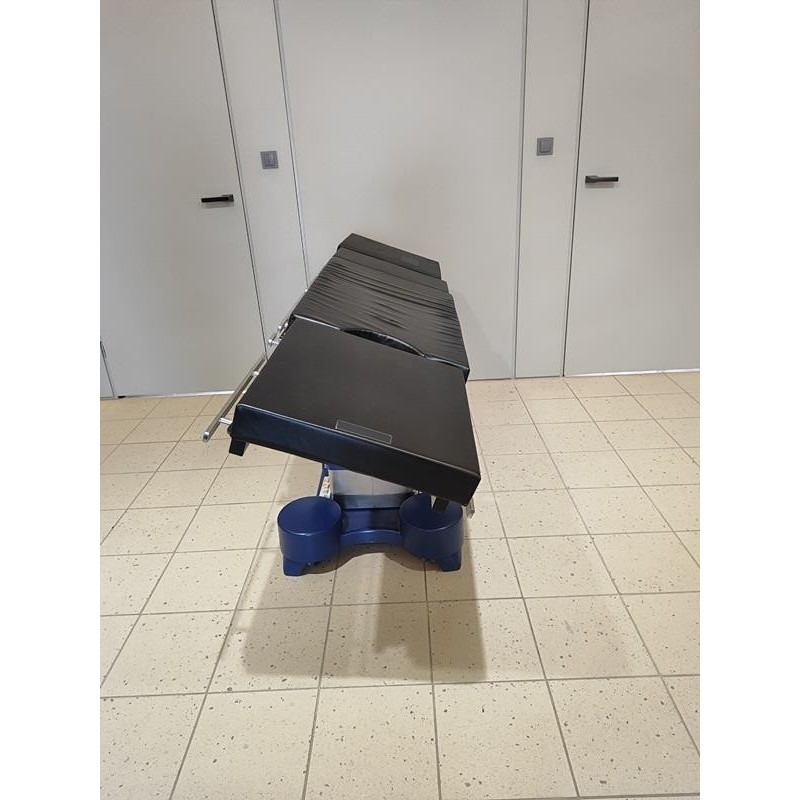

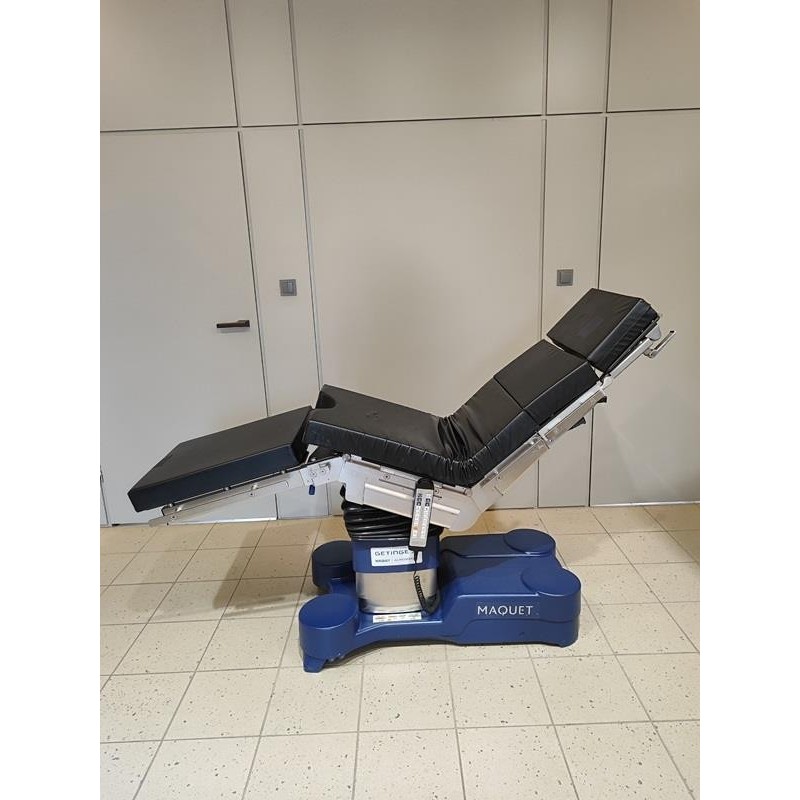

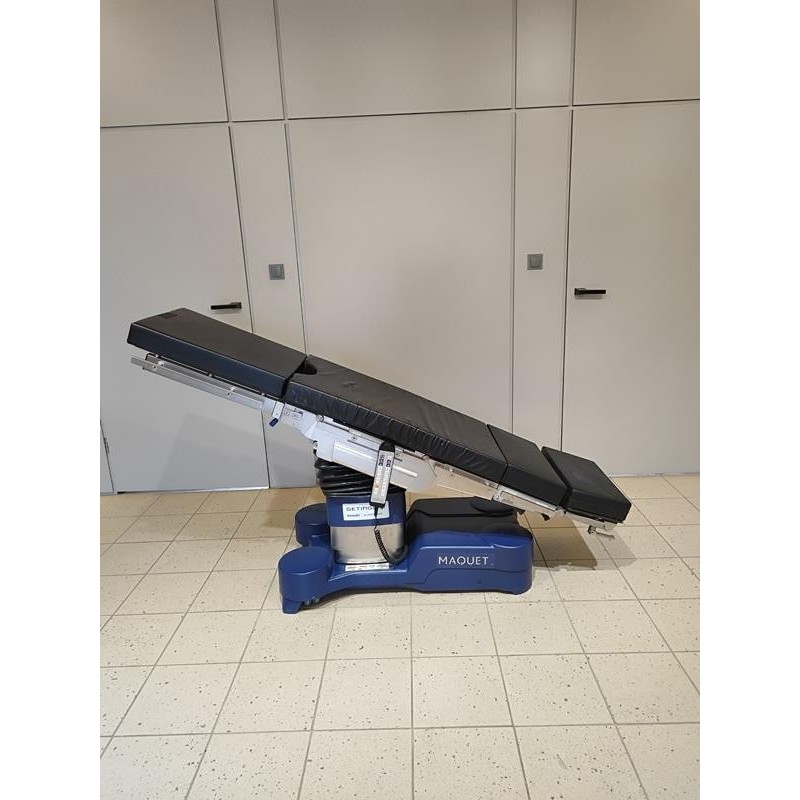

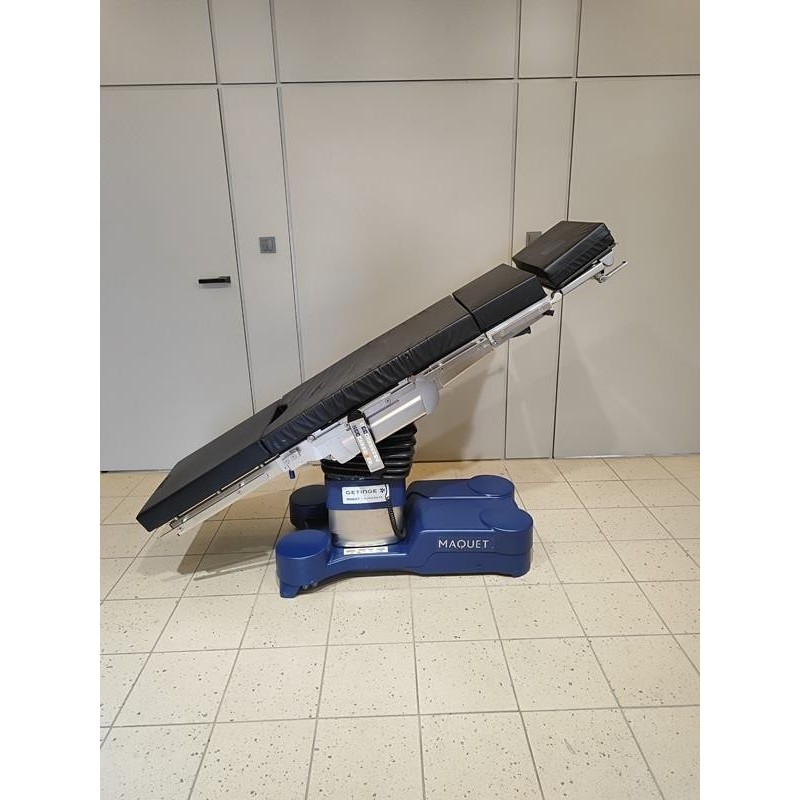

Getinge Maquet 1133.22B5 operating table

Mobile universal operating table with electric control

Construction:

• Modular tabletop (approx. 5 sections)
• Fully radiolucent tabletop without crossbars
• Stainless steel and aluminum components
• Side rails for accessories

Control and drives:

• Electrohydraulic control system
• Corded hand control / control panel
• Optional motorized drive (Autodrive)

Motion functions:

• Height adjustment
• Trendelenburg / reverse Trendelenburg
• Lateral tilt left/right
• Back and leg section adjustment
• Flex / reverse flex position
• Longitudinal shift approx. 460 mm

Tabletop and comfort:

• SFC padding approx. 80 mm
• High patient comfort and stability
• Configurable sections

Technical parameters:

• Load capacity: up to approx. 450 kg
• Height range: approx. 59 – 106 cm
• Length: approx. 209 cm
• Width: approx. 54–59 cm
• Weight: approx. 320 kg

Mobility:

• Base with castors and locking system
• Easy maneuverability

Power supply:

• Rechargeable batteries (~24 V)
• Charging via mains (230–240 V)

Clinical applications:

• General surgery
• Orthopedics and trauma
• Neurosurgery (with accessories)
• Vascular surgery

Additional information:
