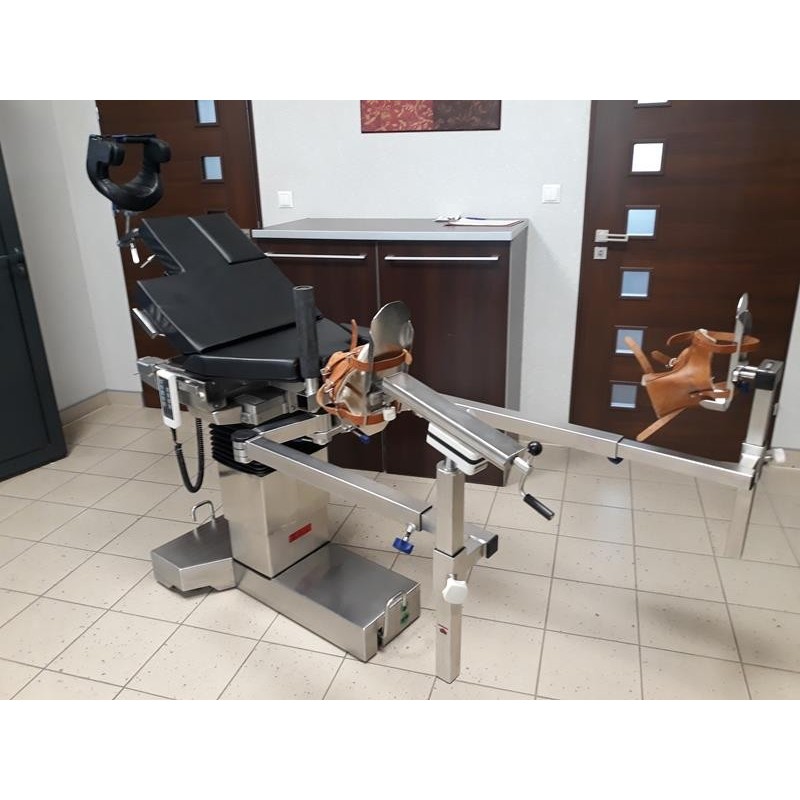

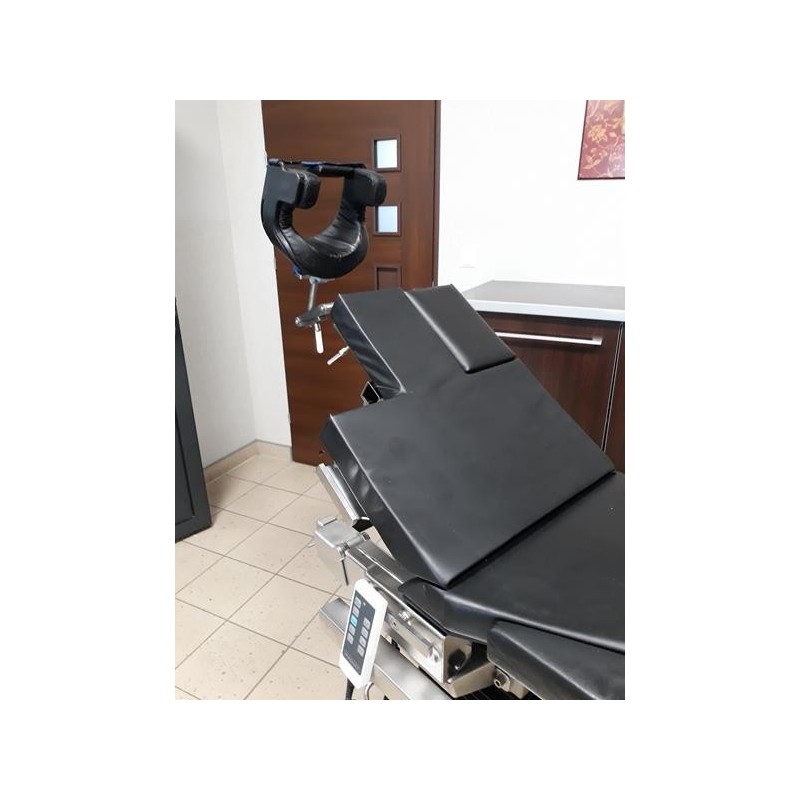

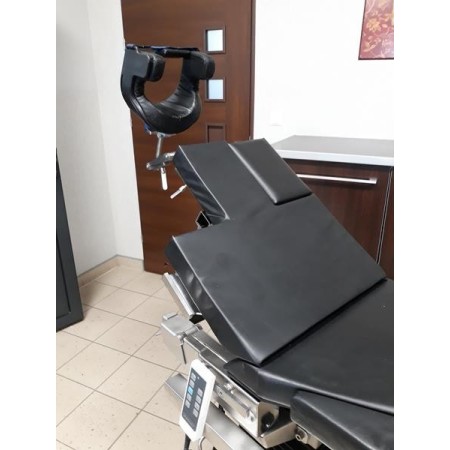

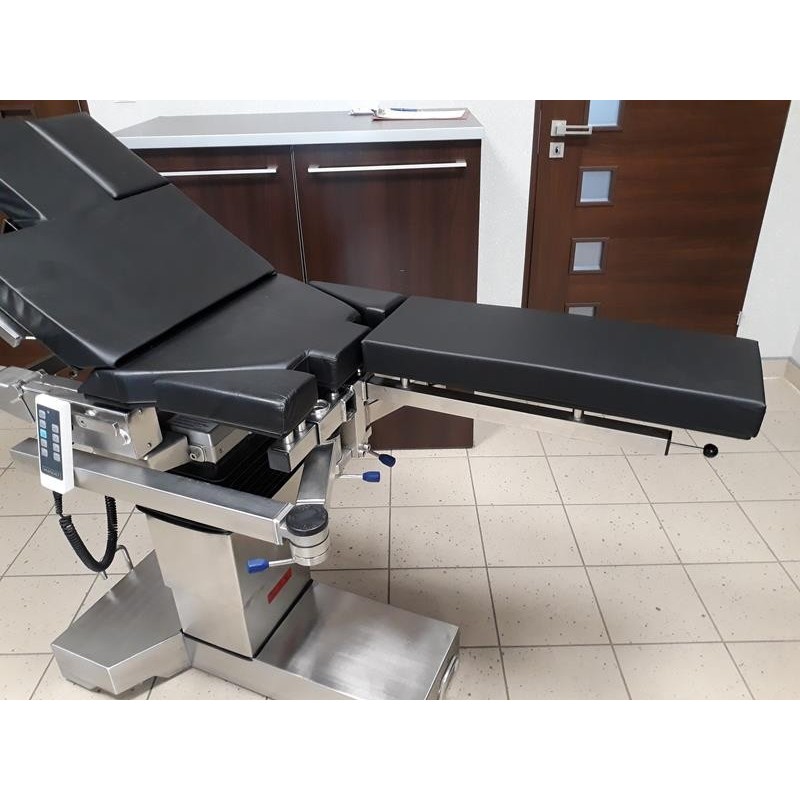

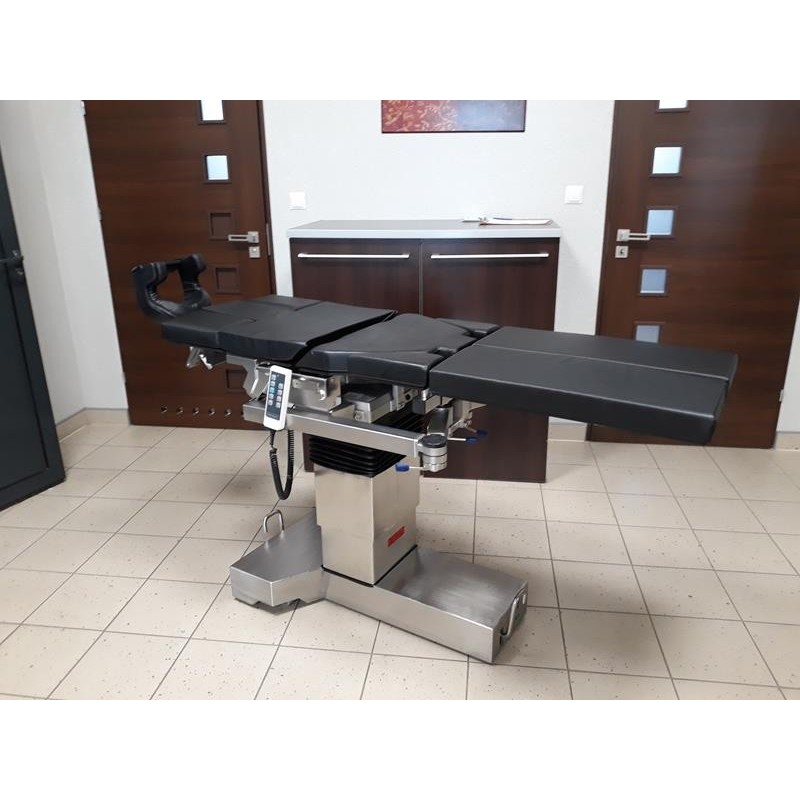

Maquet ORTHOSTAR II 1425 orthopedic operating table

Maquet ORTHOSTAR II 14.25.01 operating table:

Dimensions and Weight:

  • Total tabletop length: 2330 mm

  • Tabletop width: 520 mm

  • Height adjustment range: 700–1100 mm

  • Table weight: 250 kg

  • Maximum load capacity: 135 kg

Adjustments and Functions:

  • Height adjustment: Electric, range 700–1100 mm

  • Lateral tilt: ±20°

  • Trendelenburg / Reverse Trendelenburg: ±30°

  • Backrest adjustment: from -20° to +80°

  • "0-Position": Automatic return of the tabletop to a horizontal position

Tabletop Construction:

  • Consists of 8 sections (optionally 9, depending on the headrest choice)

  • Side rails for inserting X-ray cassettes

  • Side rails for accessory attachment

Power Supply:

  • Battery-powered with mains connection option

  • Built-in battery charger

  • Battery charge level indicator

Safety and Compatibility:

  • Compliant with IEC 601-1 standard

  • Recommended use of original MAQUET accessories

Additional Features:

  • Foot pedal for locking and unlocking the wheels during movement

  • Configurable setup to meet individual surgical needs
