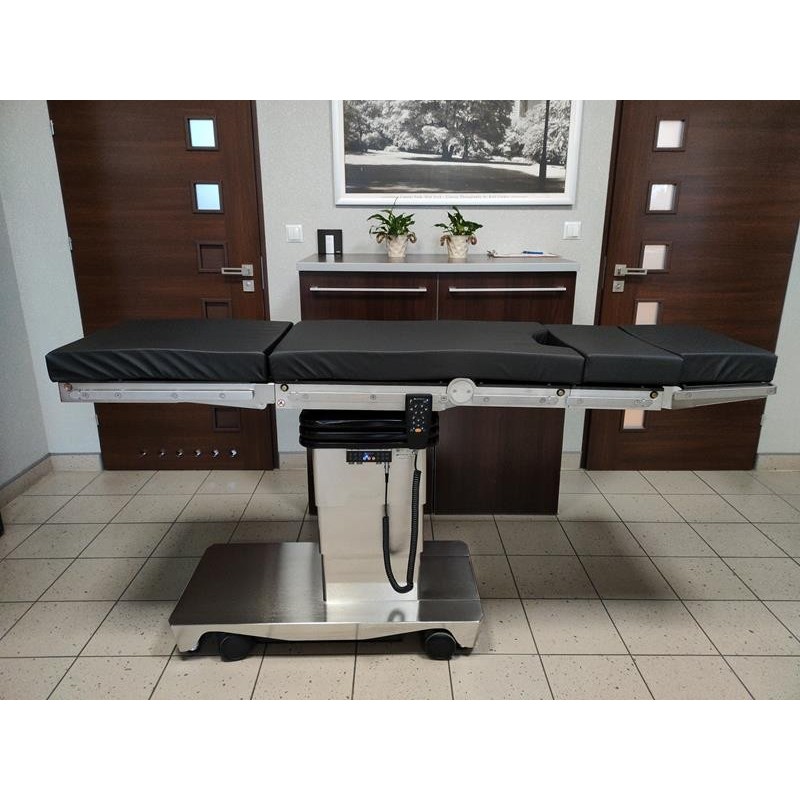

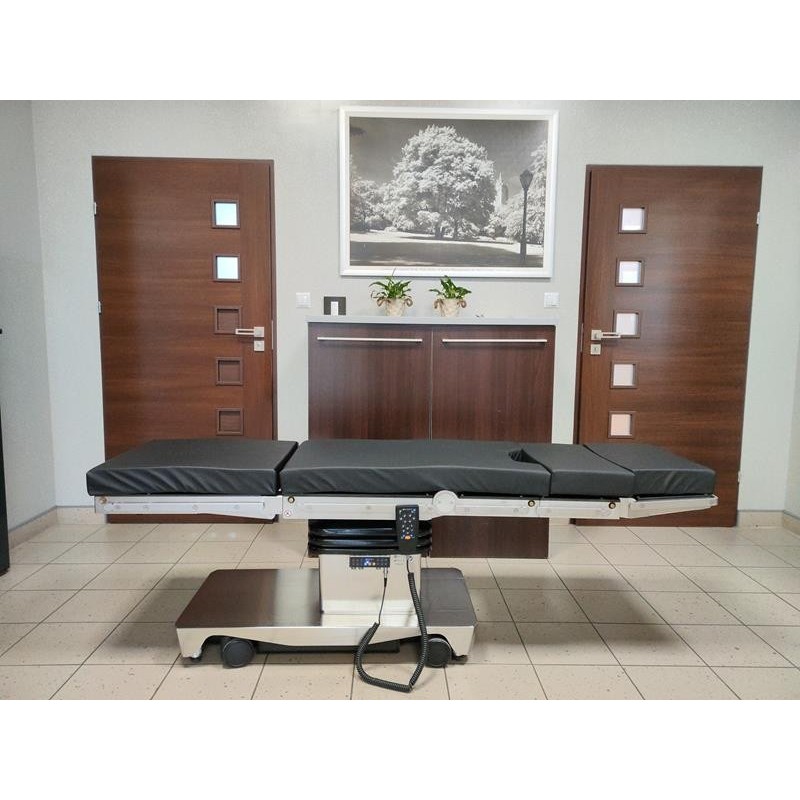

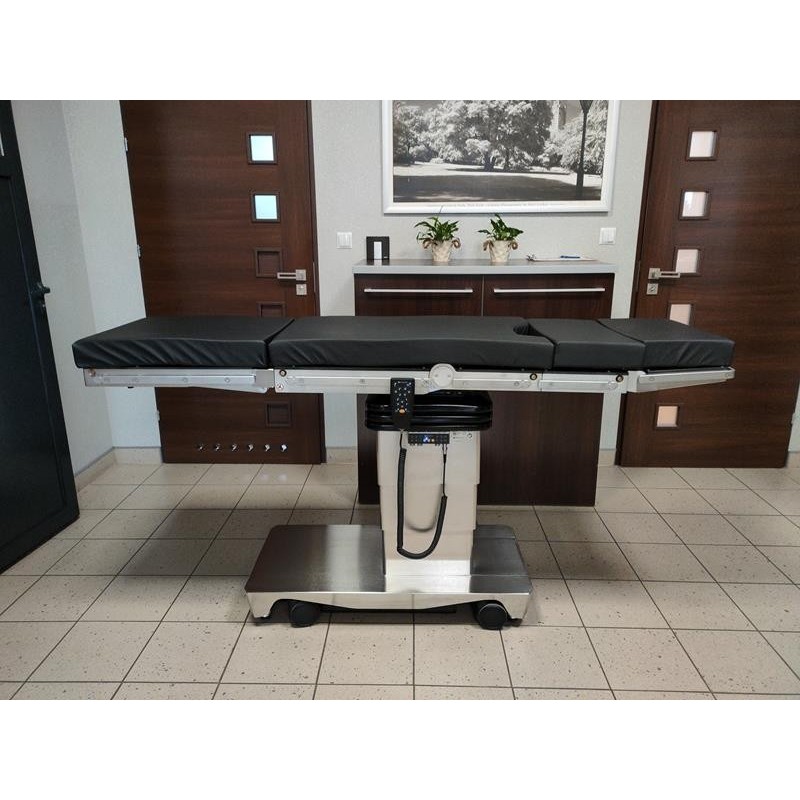

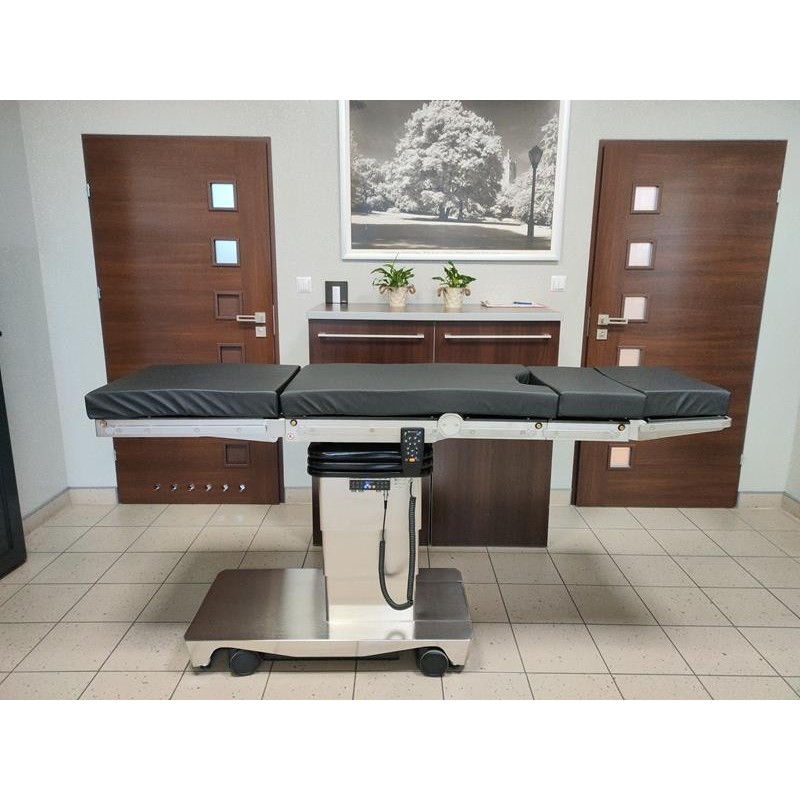

Steris Kerna Operating Table

• Drive system: electro-hydraulic

• Maximum patient weight capacity:

  • 300 kg centered on the column

  • 270 kg in all articulated positions

• Height adjustment range:

  • low version: 595 – 945 mm

  • high version: 705 – 1055 mm

• Lateral tilt: ±20°

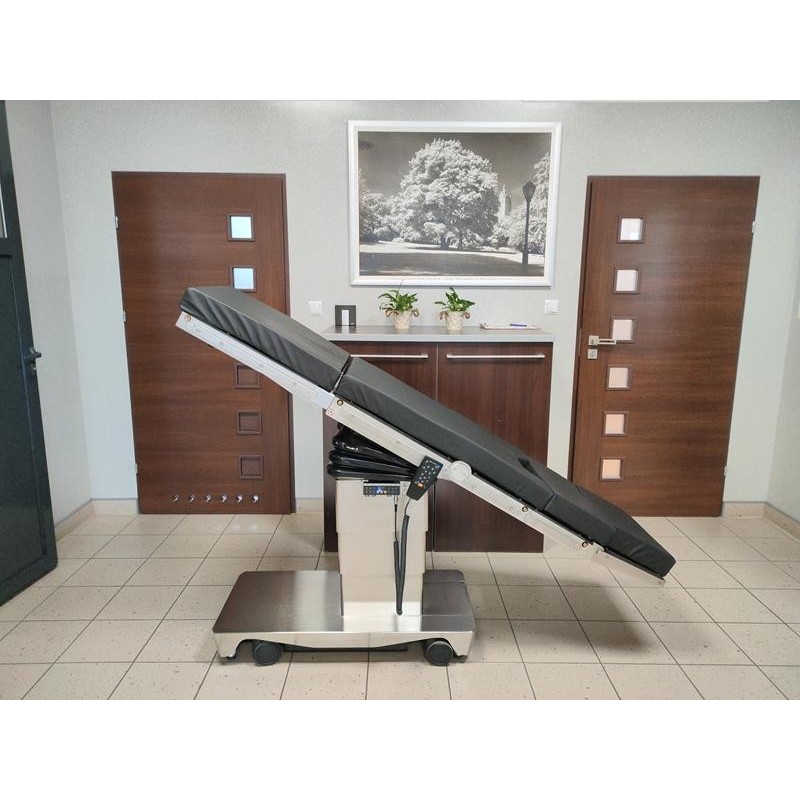

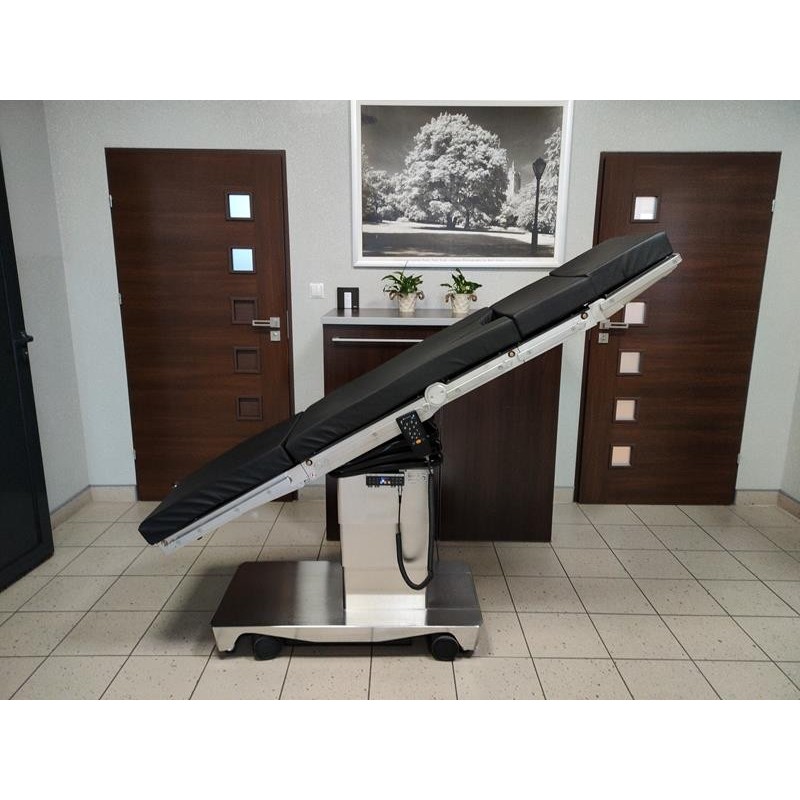

• Trendelenburg / reverse Trendelenburg: ±30°

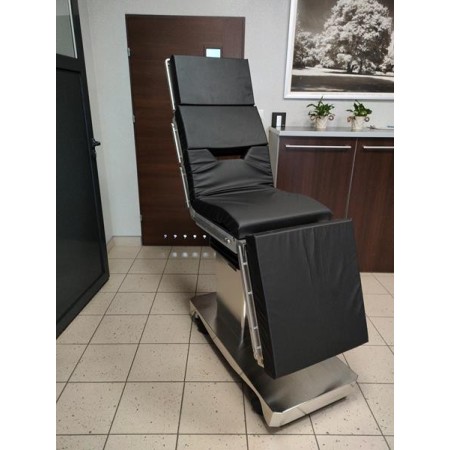

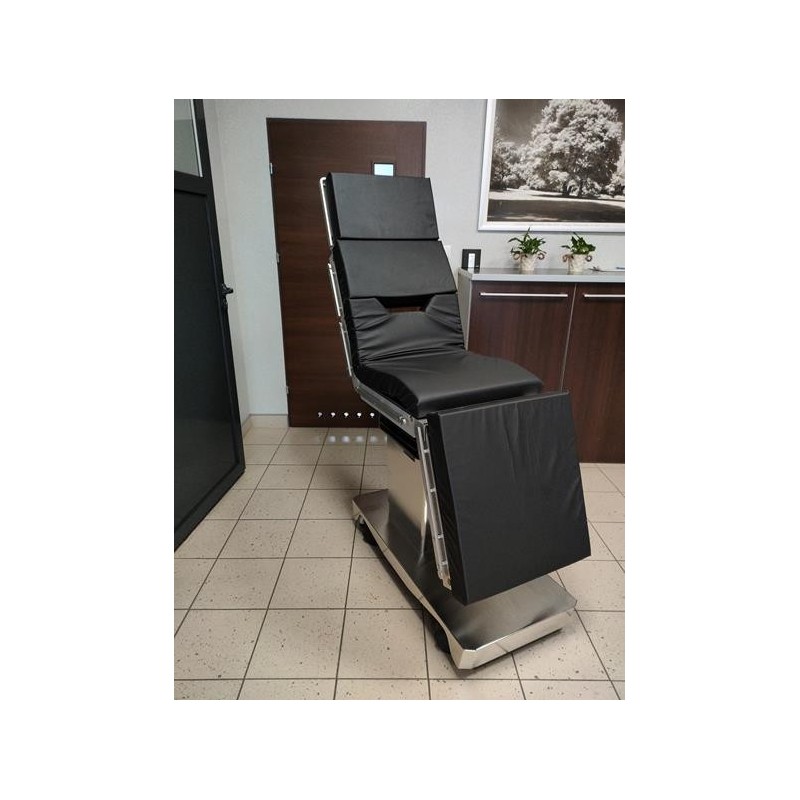

• Back section adjustment: +90° / −90°

• Longitudinal slide: 230 mm

• Tabletop length (without extensions): approx. 840 mm

• Tabletop width: 520 mm (560 mm with side rails)

• Table weight: approx. 185 kg

• Materials: stainless steel and aluminum

• Anti-collision movement system (ALS)

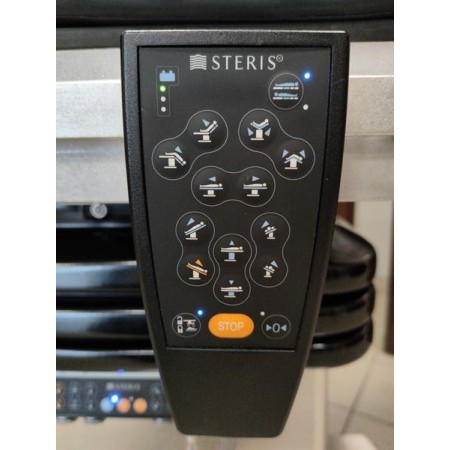

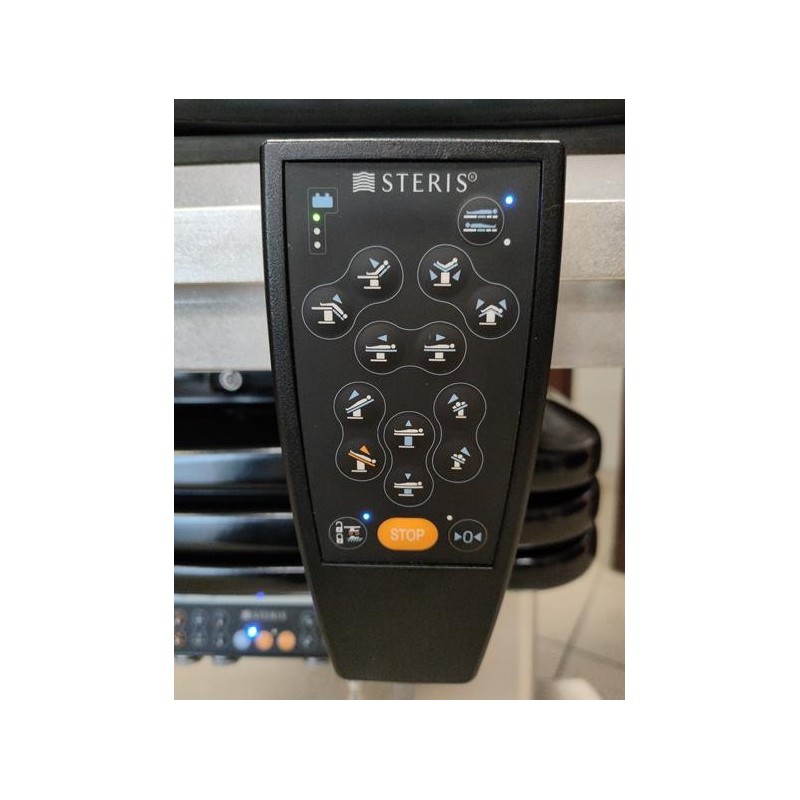

• Control options: hand control or wireless control

Features

• modular multi-section tabletop

• compatibility with CMAX accessories

• patient positioning in normal or reverse orientation

• suitable for imaging systems in the operating room
