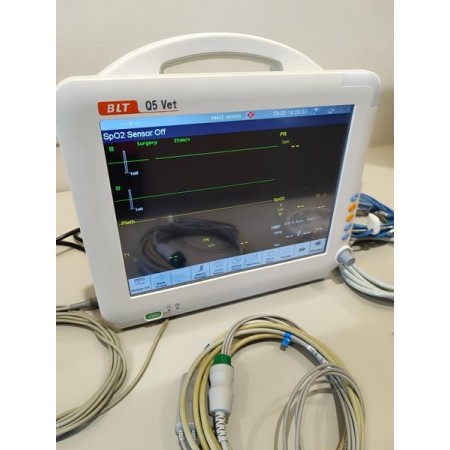

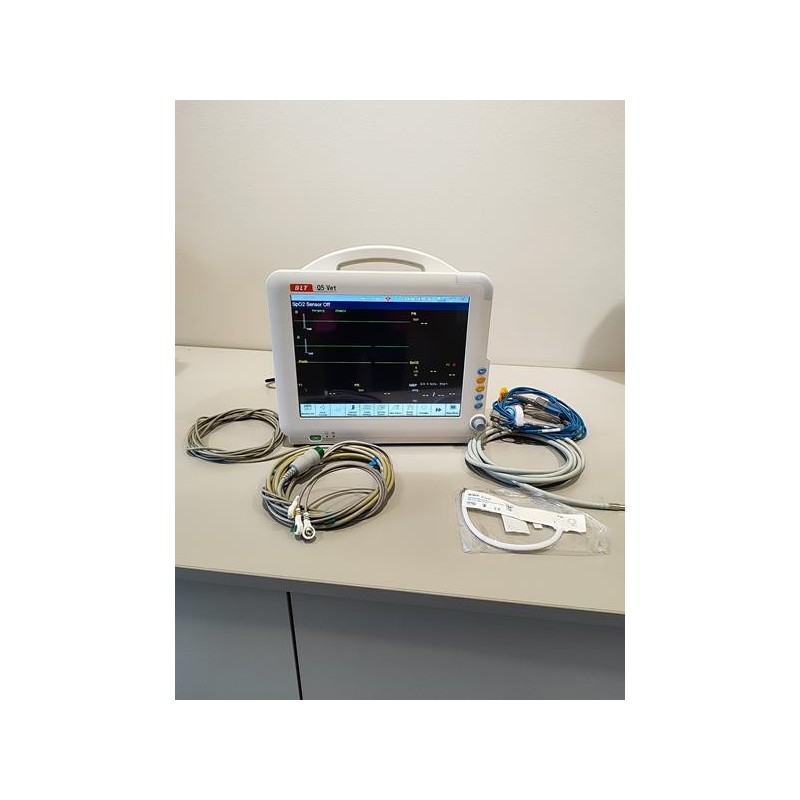

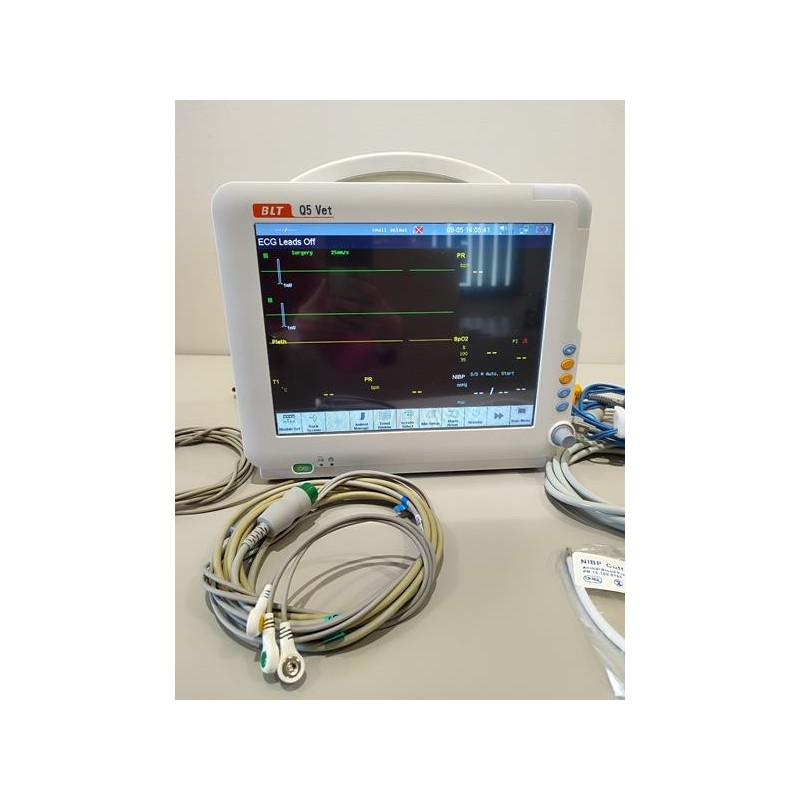

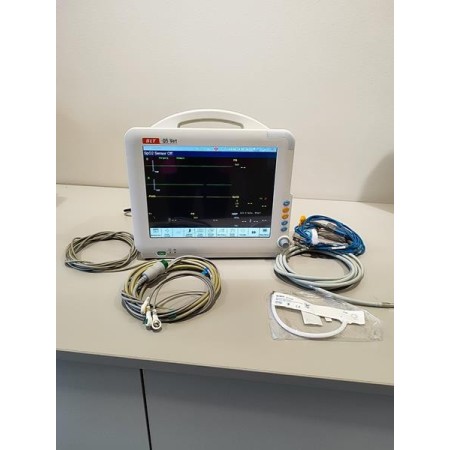

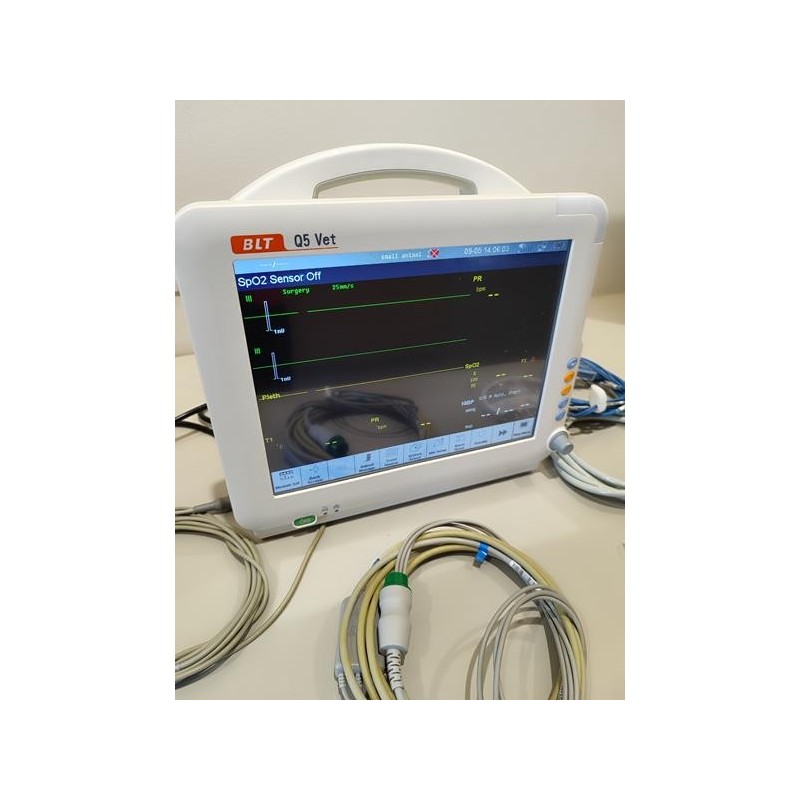

BLT Q5 Patient Monitor

Display and Interface

• Display type: 12.1-inch TFT color touchscreen

• Resolution: 800 × 600 pixels

• Brightness: 10 adjustable levels

• Waveform channels: Up to 10 (expandable to 12)

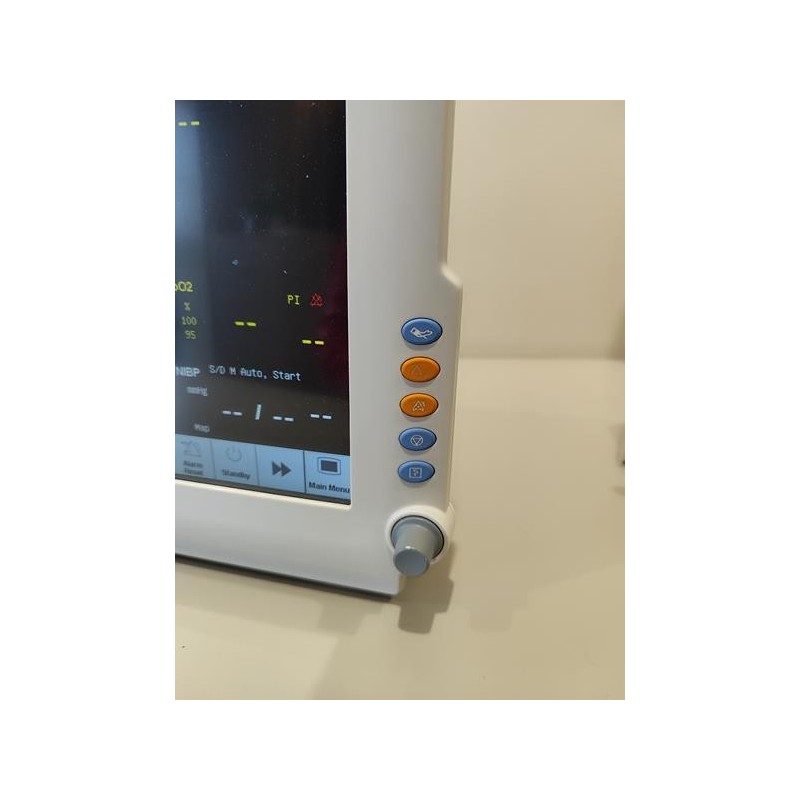

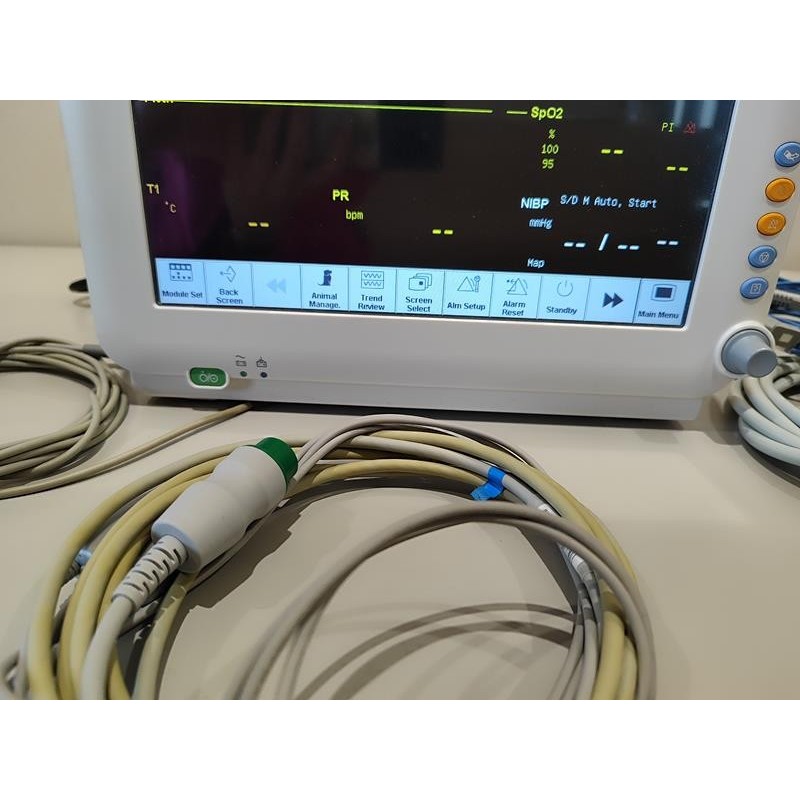

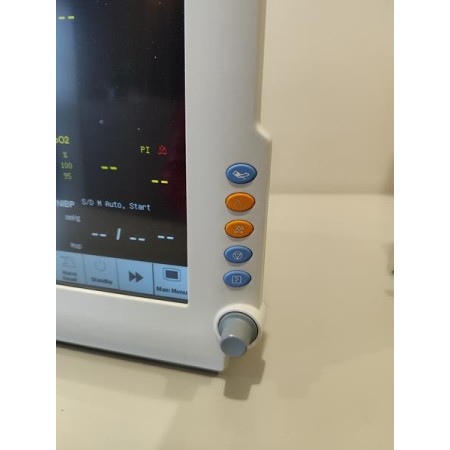

• User interface: Full touchscreen, rotary knob, backlit keys

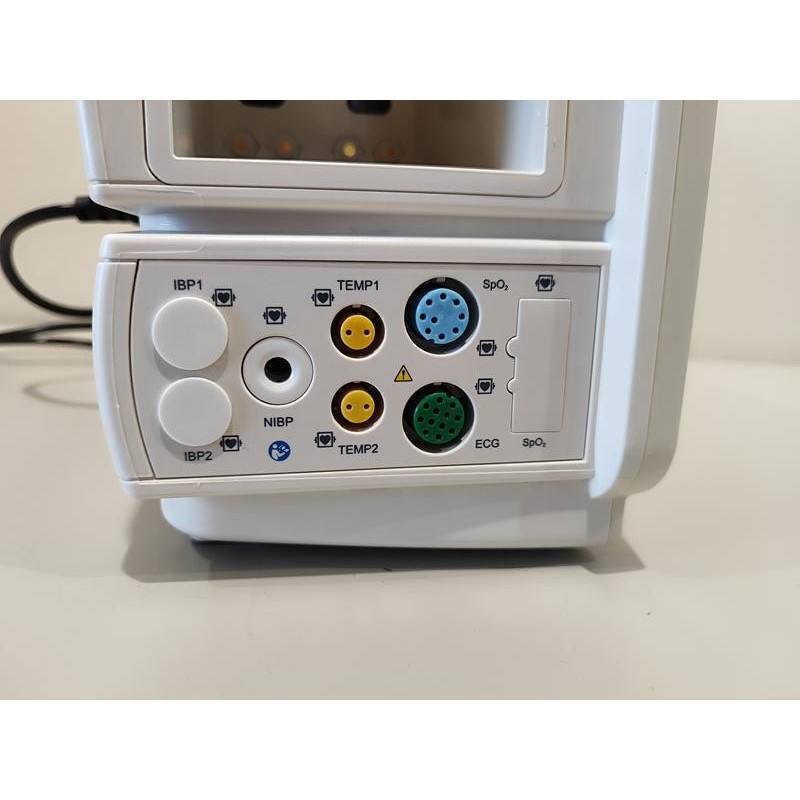

⚙️ Monitoring Parameters

• ECG:

  • Modes: 3- or 5-lead

  • Heart rate range:

    • Adults: 10–300 bpm

    • Pediatric/Neonatal: 10–350 bpm

  • Accuracy: ±1 bpm or ±1%, whichever is greater

  • Sweep speeds: 12.5 / 25 / 50 mm/s

  • ST measurement: Range -2.0 to +2.0 mV, resolution 0.01 mV

• NIBP (Non-invasive Blood Pressure):

  • Method: Oscillometric

  • Measurement ranges:

    • Adults: 10–270 mmHg

    • Children: 10–235 mmHg

    • Neonates: 10–135 mmHg

  • Units: mmHg or kPa

• SpO₂:

  • Range: 0–100%

• RESP (Respiration Rate):

  • Method: Thoracic impedance

  • Range: 0–150 breaths/min

  • Accuracy: ±2 breaths/min

• Temperature:

  • Dual-channel measurement

• IBP (Invasive Blood Pressure):

  • Optional (1 or 2 channels)

• EtCO₂ and Anesthetic Gases:

  • Optional modules: sidestream, mainstream, microstream

🔋 Power Supply and Mobility

• Power input: AC 100–240 V, 50/60 Hz

• Battery: 11.1 V lithium-ion

• Battery life: Over 210 minutes

• Weight: 4.5 kg

• Dimensions: 318 × 264 × 152 mm

📊 Data Storage and Trends

• Trend memory: Up to 120 hours

• NIBP measurements review: Up to 1000 entries

• Arrhythmia events: Up to 128 entries

• Full waveform disclosure: 96 entries for 3 channels (with 4 GB SD card)

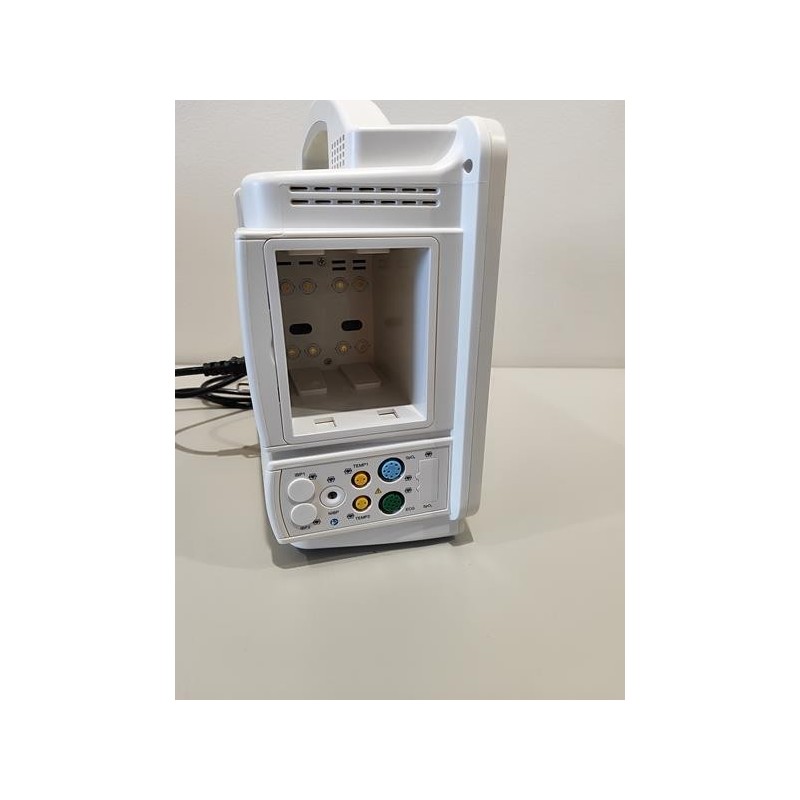

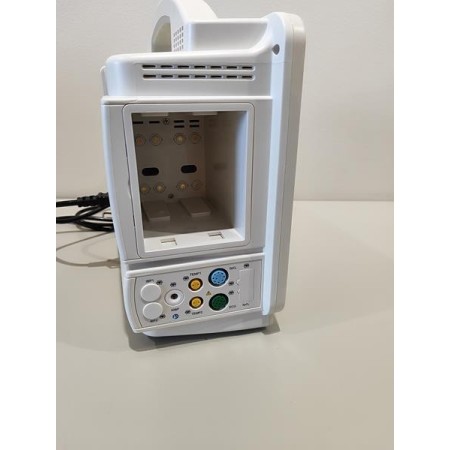

🔧 Modularity and Options

• Module slots: 2

• Available optional modules:

  • Masimo or Nellcor SpO₂

  • CO₂ monitoring (sidestream, mainstream, microstream)

  • Dual IBP channels

  • 3-channel thermal recorder

  • VGA output, USB, LAN/Wi-Fi interfaces
