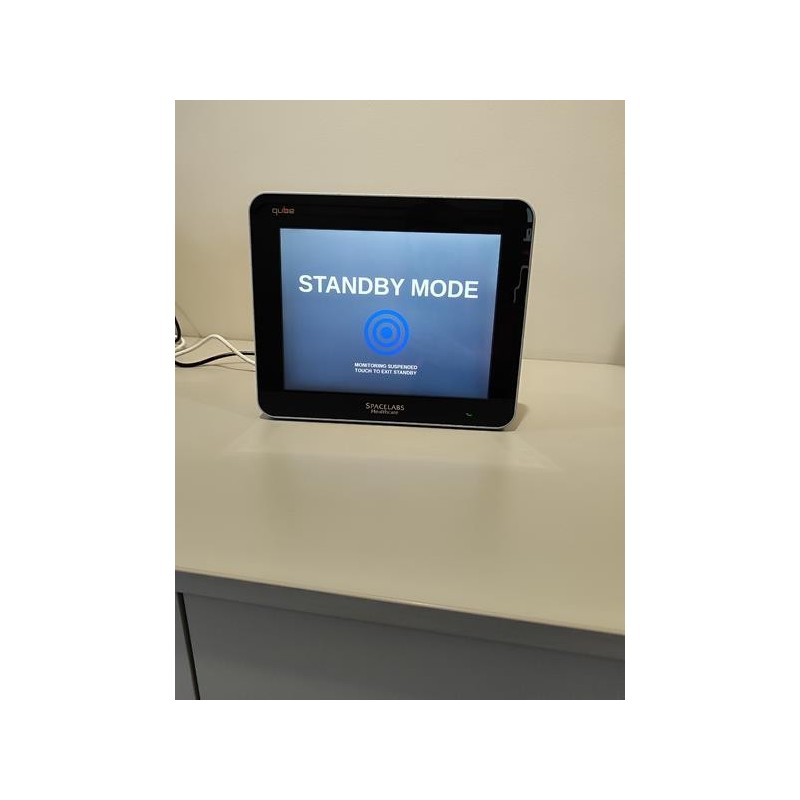

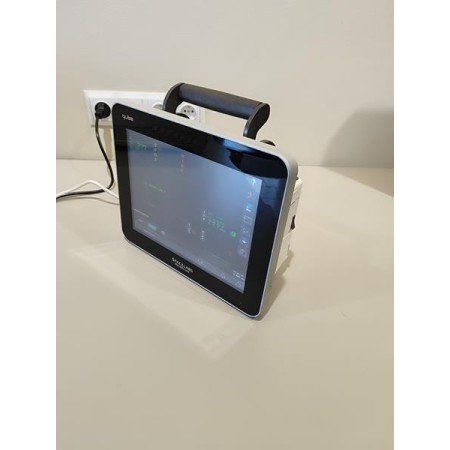

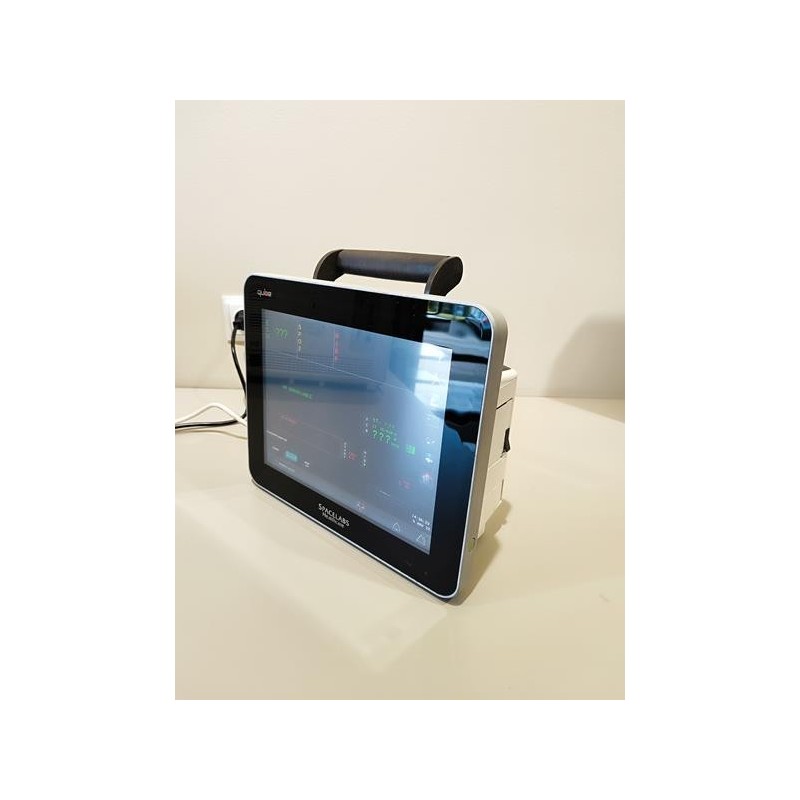

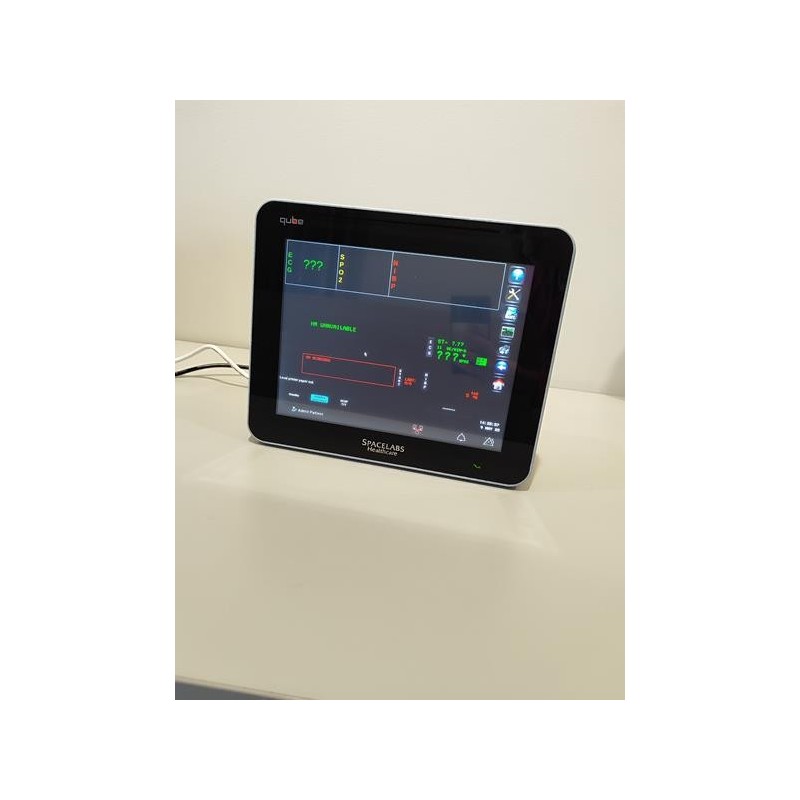

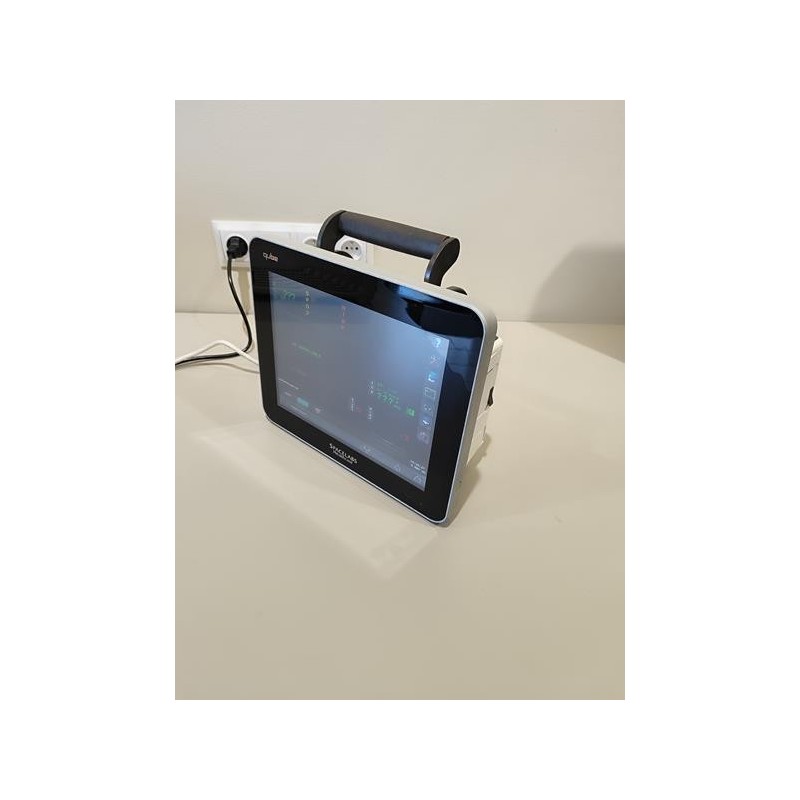

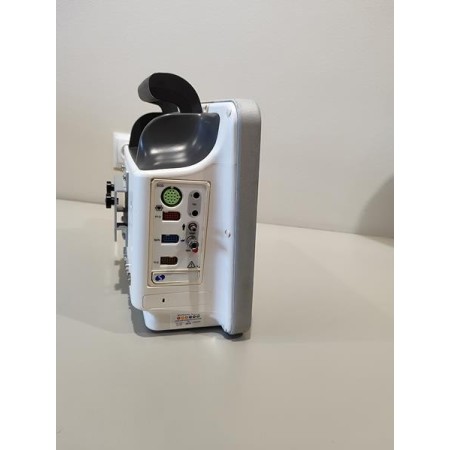

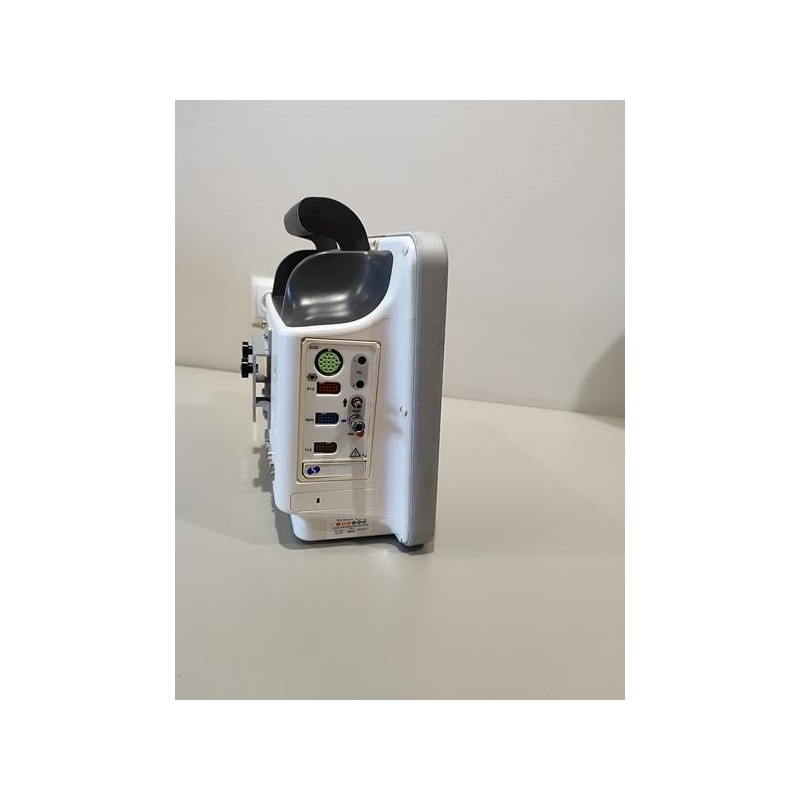

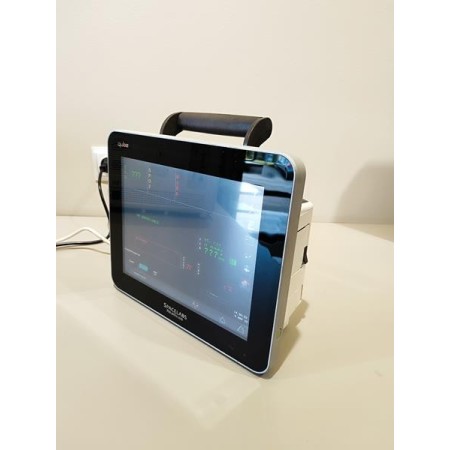

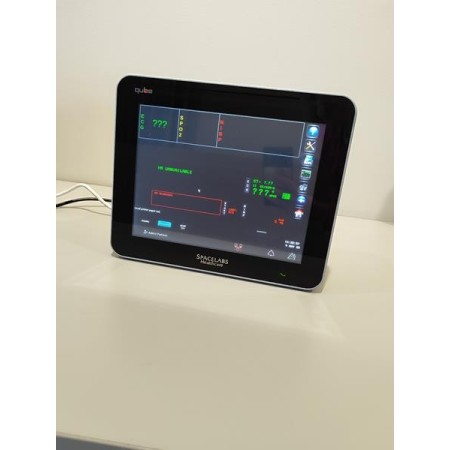

SPACELABS Qube Patient Monitor

Display and Interface

• Screen Type: 12.1-inch (30.5 cm) color TFT LCD touchscreen

• Resolution: 1024 × 768 pixels

• Dimensions: Width: 31.5 cm; Height: 26.2 cm; Depth: 13.2 cm

• Weight: Approximately 4.1 kg (9 lbs)

• User Interface: Touchscreen; optional mouse, keyboard, or remote control

Monitoring Parameters

• ECG: 3-, 5-, or 12-lead configurations

• Respiration (RESP)

• SpO₂: Masimo SET, Spacelabs TruLink, or Nellcor OxiMax

• Non-Invasive Blood Pressure (NIBP)

• Invasive Blood Pressure (IBP): Up to 4 channels

• Temperature

• EtCO₂: Optional capnography module

• Cardiac Output (CO)

• Additional Parameters: Supports up to 18 parameters and 8 waveforms simultaneously

Power and Mobility

• Battery: Two hot-swappable lithium-ion batteries

• Battery Life: Up to 8 hours with dual batteries

• Charging: Optional quick-release docking station

• Mounting Options: Wall, roll stand, bed rail, or anesthesia system

• Design: Impact-resistant, chemical-resistant, and protected against liquid ingress
