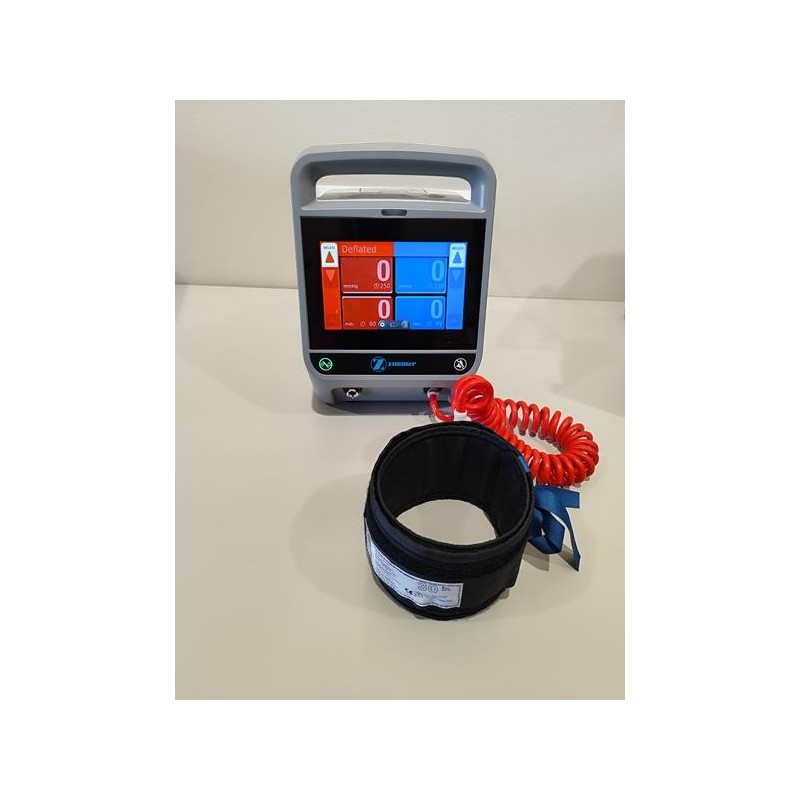

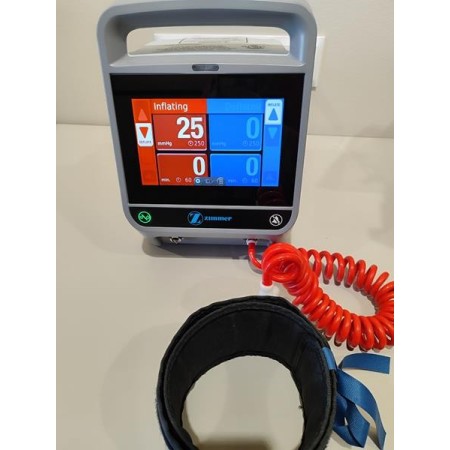

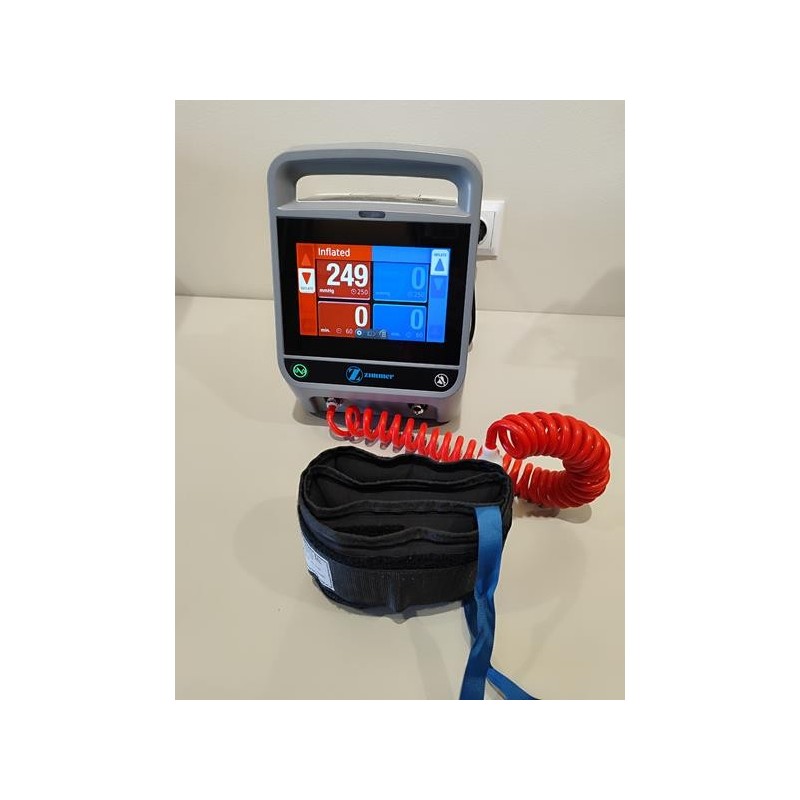

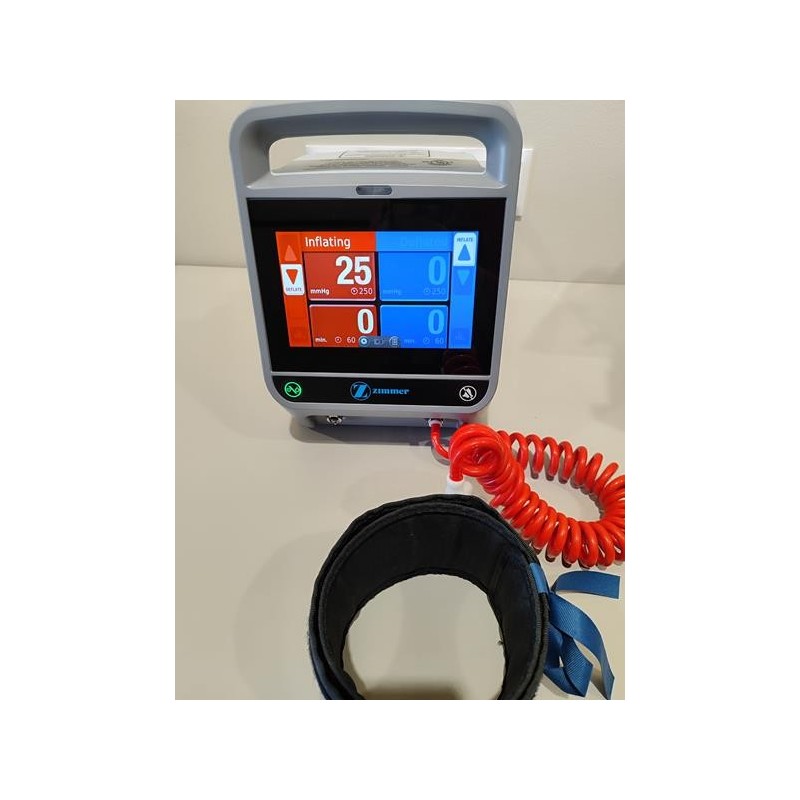

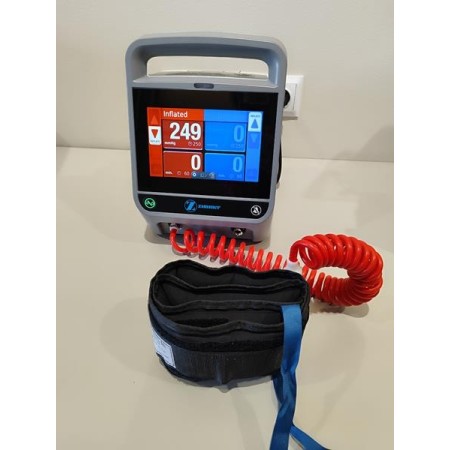

Zimmer ATS 2200 Tourniquet System

Display and User Interface

• Display type: Color LCD touchscreen

• Screen size: 7 inches

• Interface: Intuitive touchscreen interface

Technical Parameters

• Number of ports: 1 (single-channel)

• Cuff support: Dual cuff support

• Pressure range: 50–600 mmHg

• Pressure accuracy: ±4 mmHg

Power Supply and Mobility

• Battery type: Lithium-ion battery

• Battery operation time: Up to 6 hours

• Mounting options: Can be mounted on an operating table or mobile stand

Safety and Diagnostic Features

• Line occlusion detection: Acoustic reflectometry detects blockages between device and cuff

• Cuff alert: Warns when pressure remains in the cuff after use

• Automatic IVRA cuff lock: Prevents accidental release of both cuffs simultaneously

• Advanced leak detection: Monitors small pressure changes indicating potential leaks

• Pre-op cuff test: Allows testing of the cuff at the patient’s bedside before surgery

Dimensions and Weight

• Height: 29.5 cm

• Width: 20.6 cm

• Depth: 25.4 cm

• Weight: 5.2 kg
