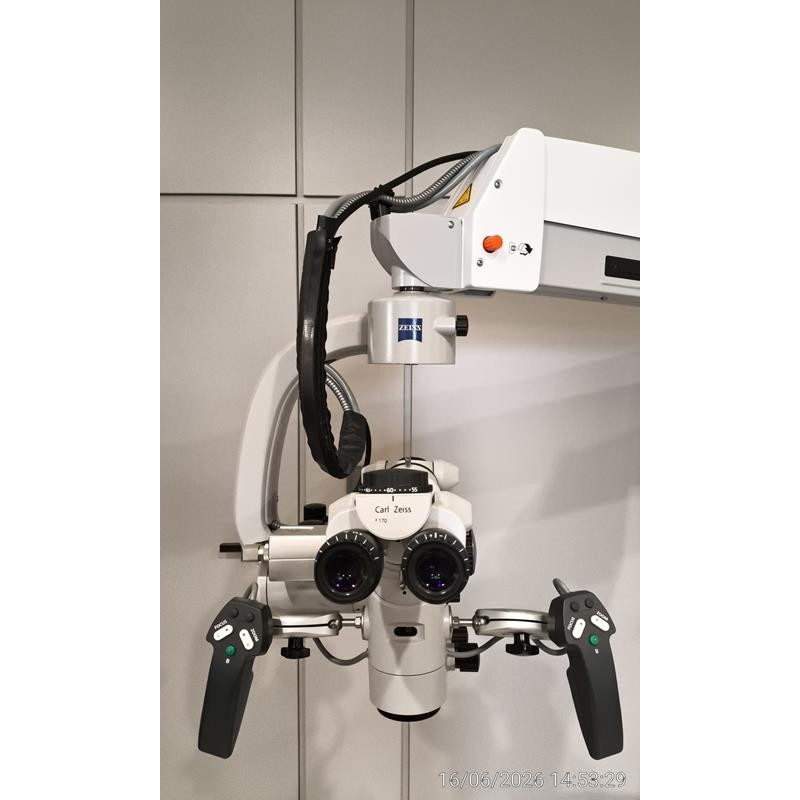

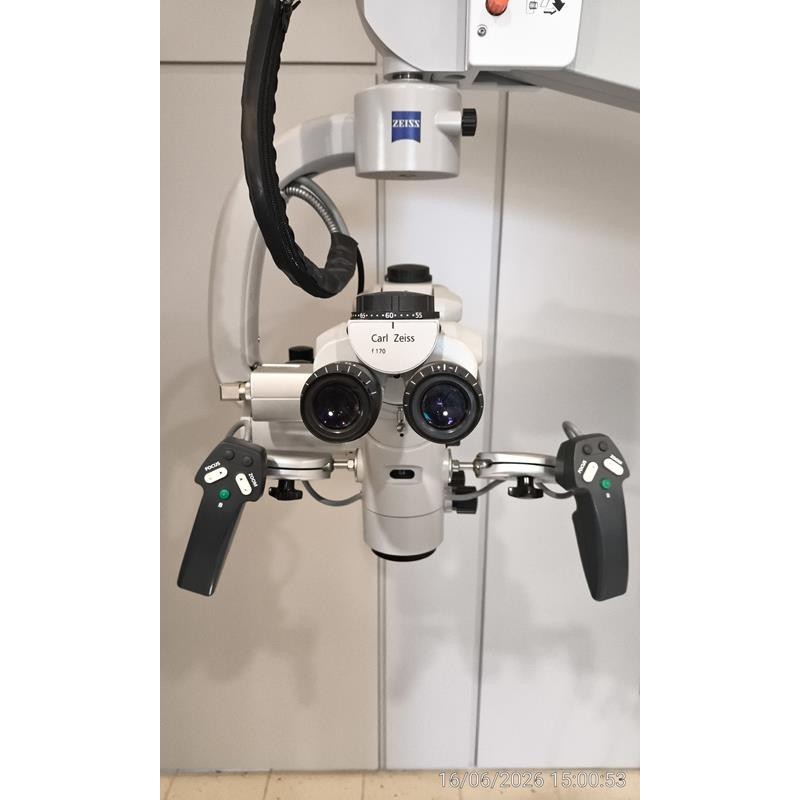

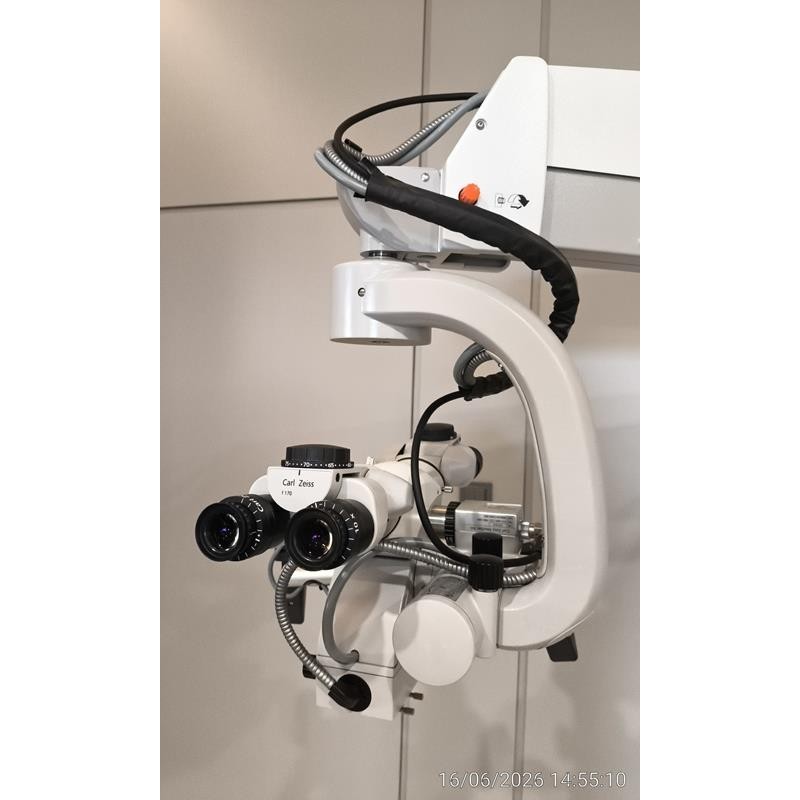

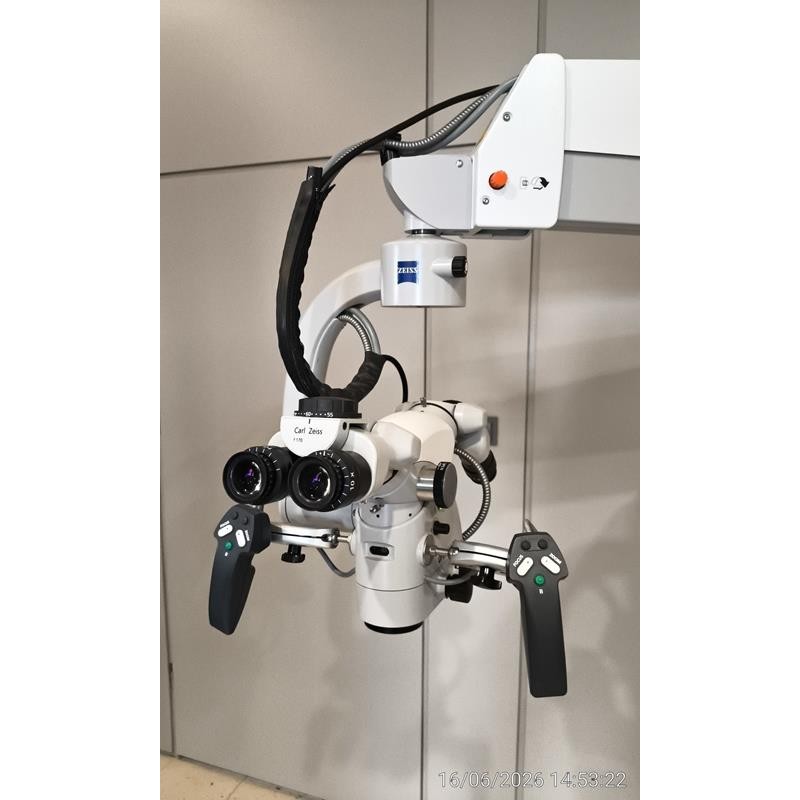

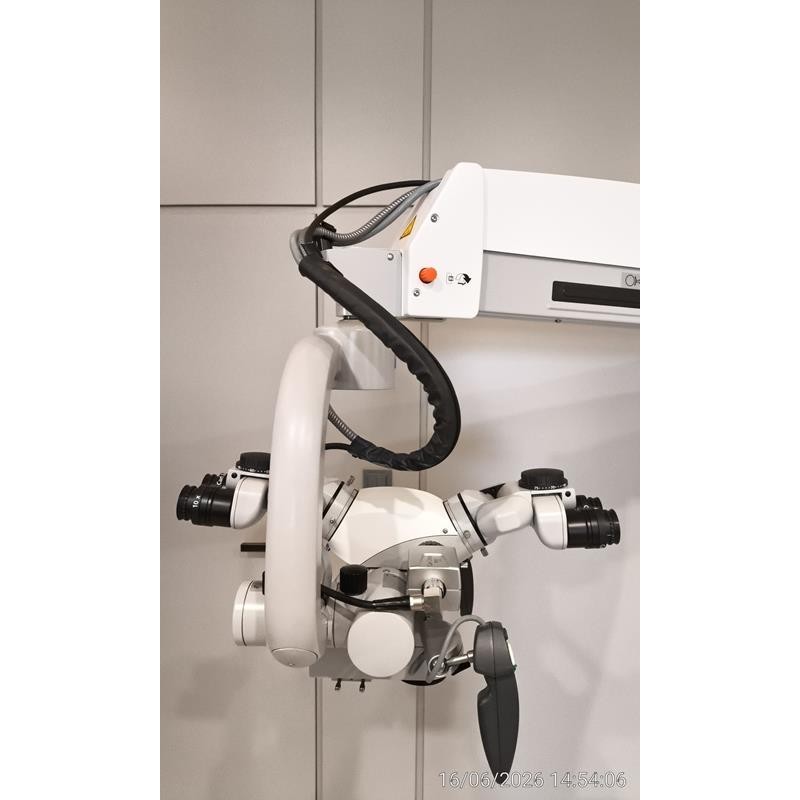

Zeiss OPMI Vario S88 surgical microscope

Mobile surgical operating microscope with S88 floor stand.

Applications:

• Neurosurgery,
• Spine surgery,
• Plastic surgery,
• Hand surgery,
• ENT surgery,
• Oral and maxillofacial surgery,
• Microsurgery,
• Ophthalmology (depending on configuration).

Technical Specifications

• ZEISS apochromatic optical system providing high-resolution imaging and excellent color reproduction.
• Motorized zoom system with a 1:6 zoom ratio.
• Zoom range: 0.4×–2.4×.
• Total magnification:
  • 2.4×–14.6× using 10× eyepieces at a 200 mm working distance.
  • 3.0×–18.2× using 12.5× eyepieces at a 200 mm working distance.
• Integrated Varioskop® focusing system.
• Motorized fine focus adjustment.
• Working distance: 200–415 mm (optional up to 535 mm with auxiliary objective lens).
• Field of view:
  • 14–84 mm at a 200 mm working distance.
  • 23–141 mm at a 415 mm working distance using 10× eyepieces.
• Superlux® 180 W xenon illumination with daylight-like color temperature.
• Automatic backup lamp switching in case of lamp failure.
• Optional halogen illumination.
• Adjustable light intensity.
• Protective filters with optional specialty filters.
• Tiltable binocular tube from 0° to 180°.
• Wide-angle 10× eyepieces (optional 12.5×).

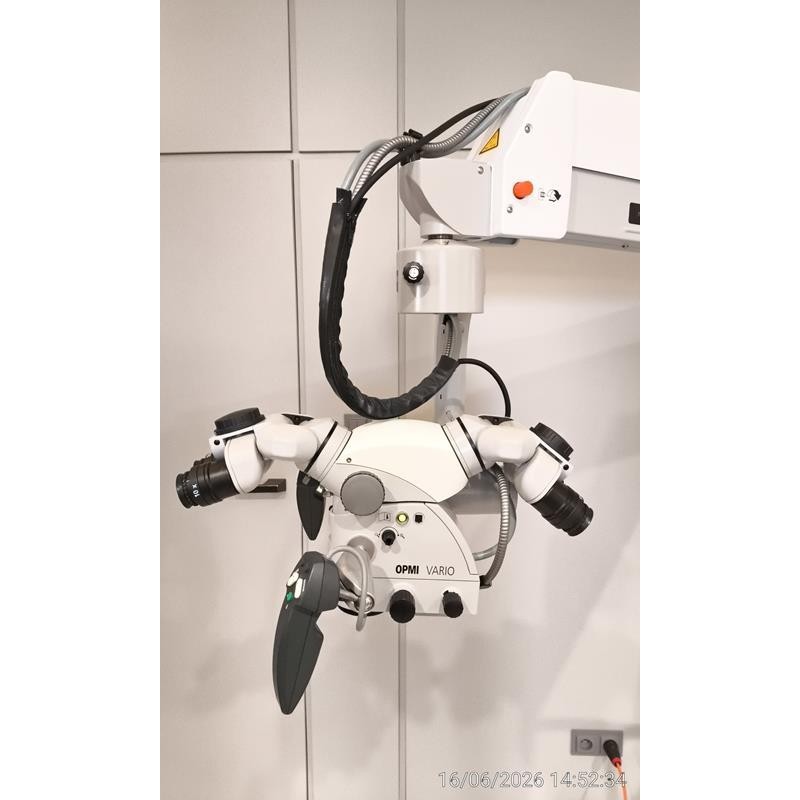

• Optional assistant microscope.
• Optional X-Y Coupling system for precise positioning.

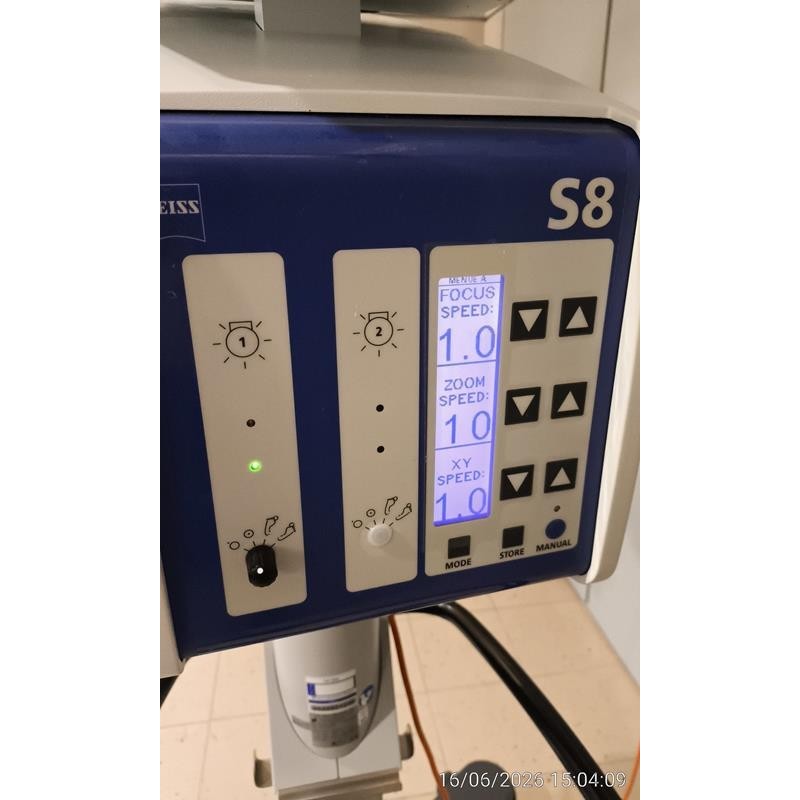

• Control via handgrips and footswitch.

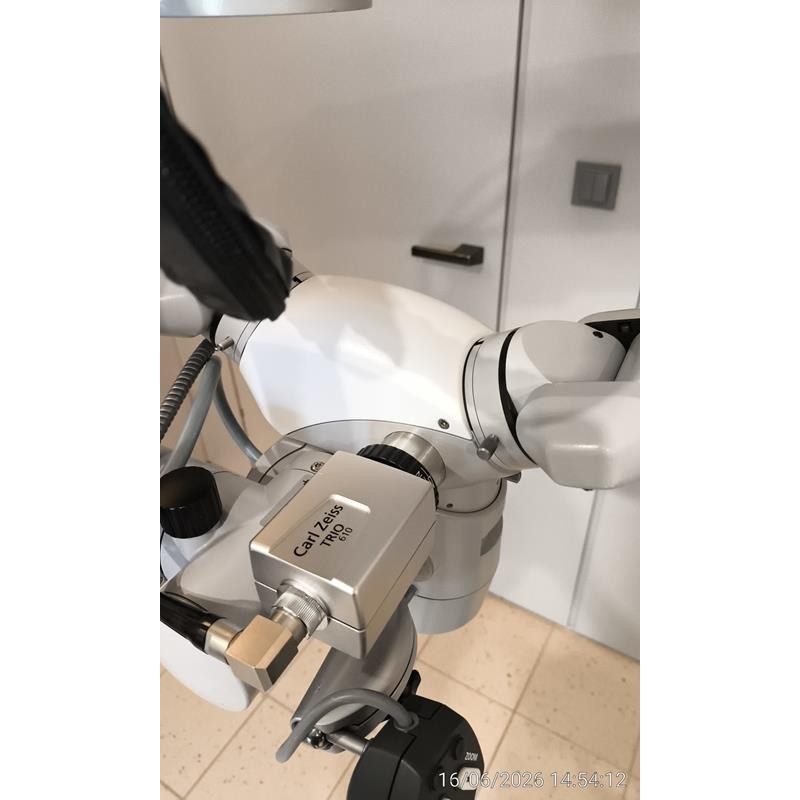

• Compatible with video and digital documentation systems.
• Power supply: 115/230 V AC, 50/60 Hz.
• Maximum current consumption: up to 8 A at 230 V.

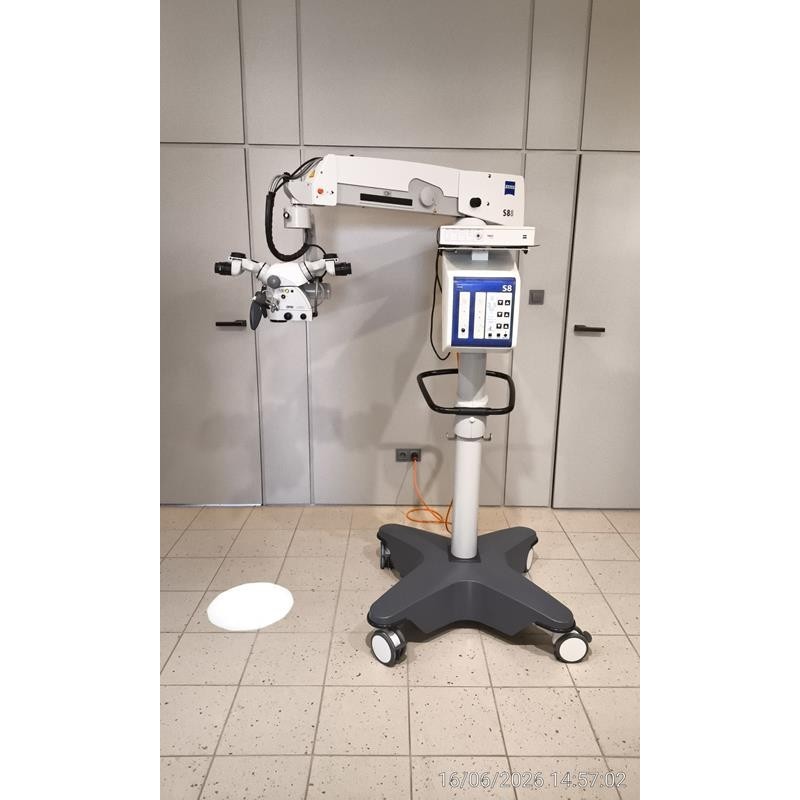

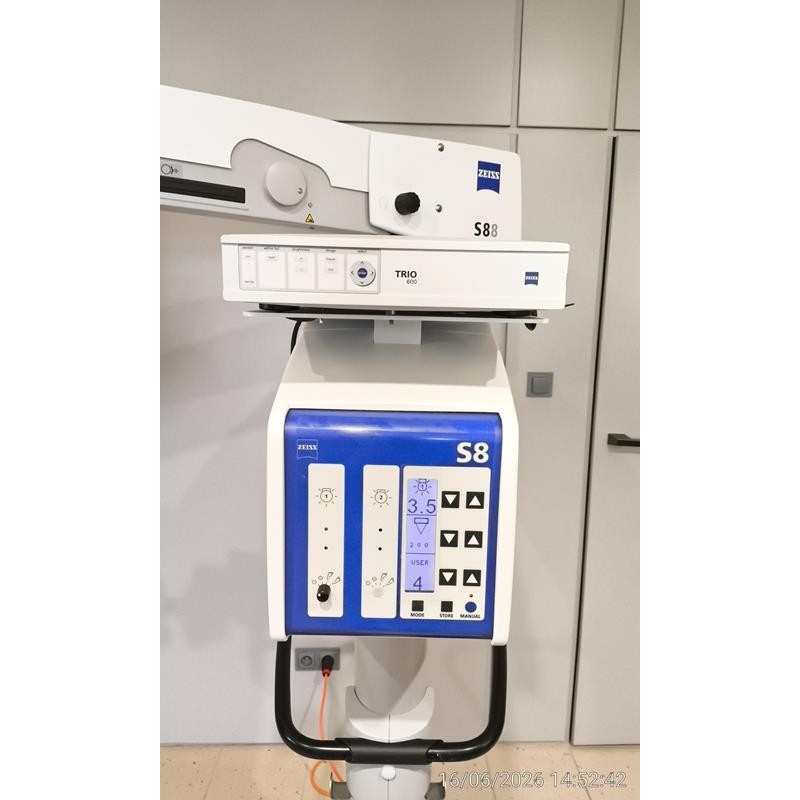

S88 Mobile Stand

• Stable mobile floor stand with counterbalance system.
• Support arm length: 850 mm.
• Microscope arm length: 450 mm.
• Vertical travel: ±360 mm.
• Arm rotation: 320°.
• Maximum arm load: 20 kg.
• Base dimensions: 805 × 805 mm.
• Stand height: 1,880 mm.
• Total weight: approximately 215–225 kg, depending on configuration.
