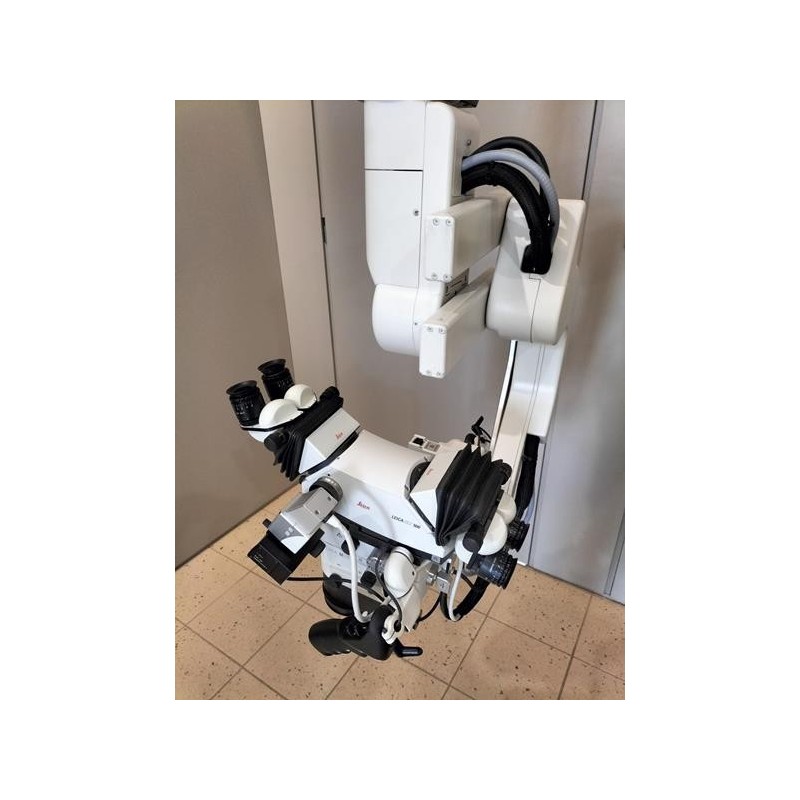

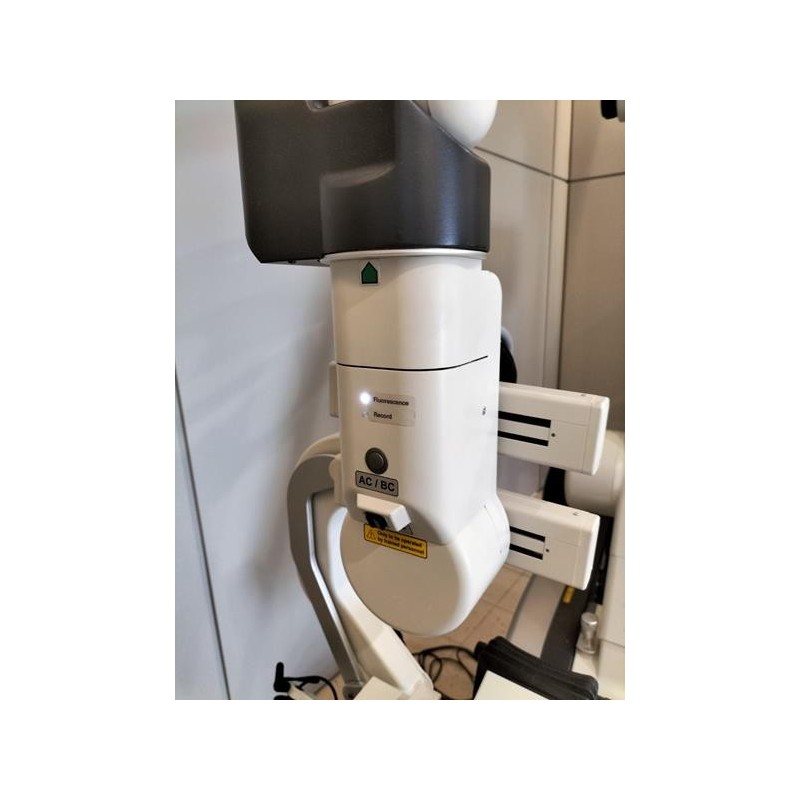

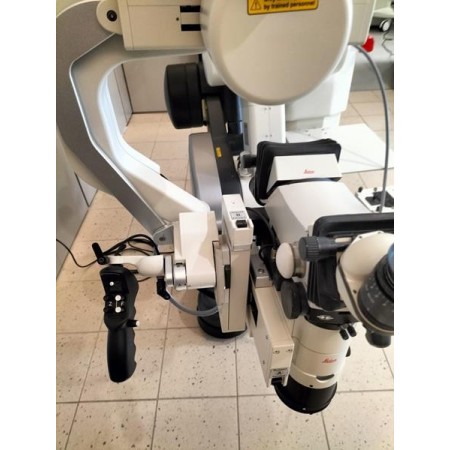

LEICA M525 Surgical Microscope

Optical System

• Optical System: Leica OptiChrome™ – provides exceptional sharpness, contrast, and color fidelity.

• Magnification: Motorized 6:1 zoom.

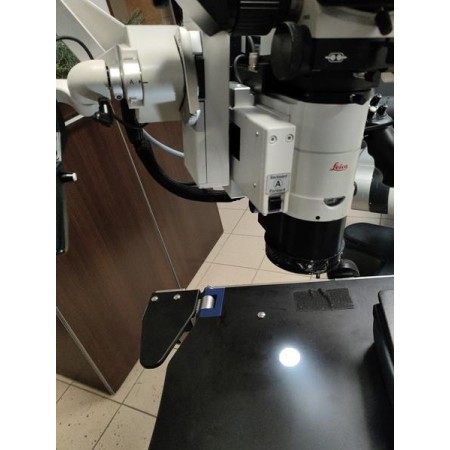

• Objective Lens: Motorized multifocal lens with a working distance range of 207 mm to 470 mm.

• Eyepieces: Wide-field eyepieces with 10× or 12.5× magnification, ±5 diopter adjustment, and adjustable eye cups.

Illumination

• Light Source: 300 W xenon lamp.

• Lighting Systems: Two independent illumination systems ensure reliable operation during surgery.

• Special Features:

  • AutoIris™ – automatically adjusts the illumination field to magnification and working distance.

  • BrightCare™ – brightness control based on working distance to enhance patient safety.

Mechanics and Ergonomics

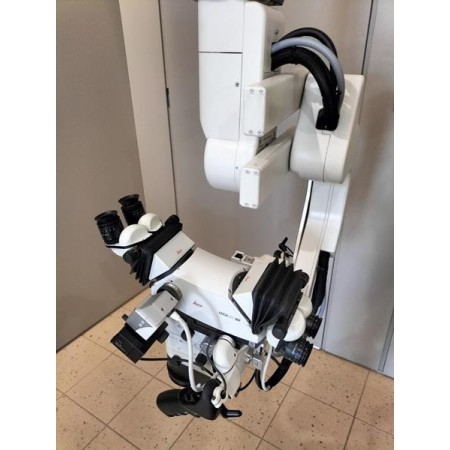

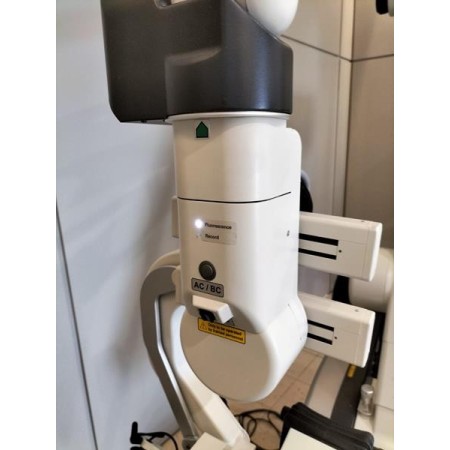

• Balancing System: Unique balancing mechanism for excellent stability and precise positioning.

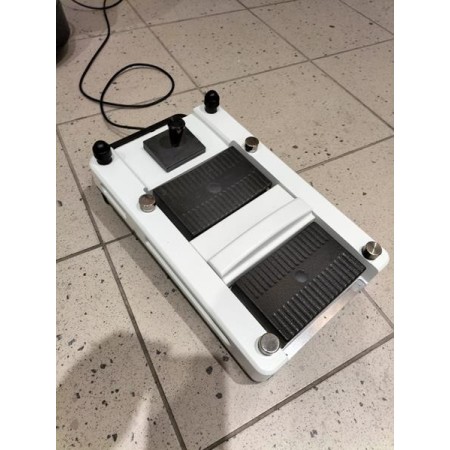

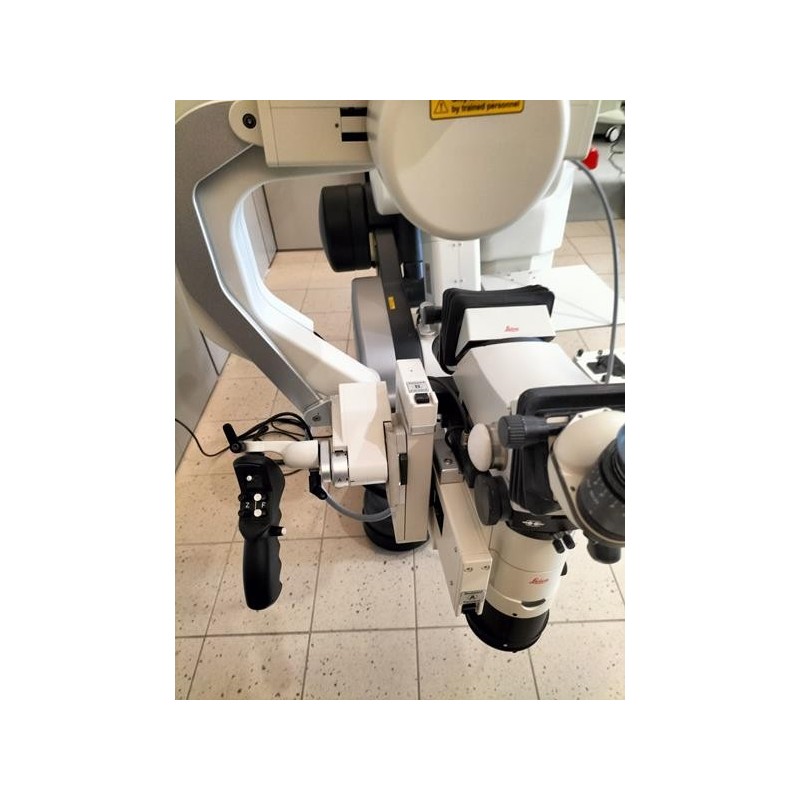

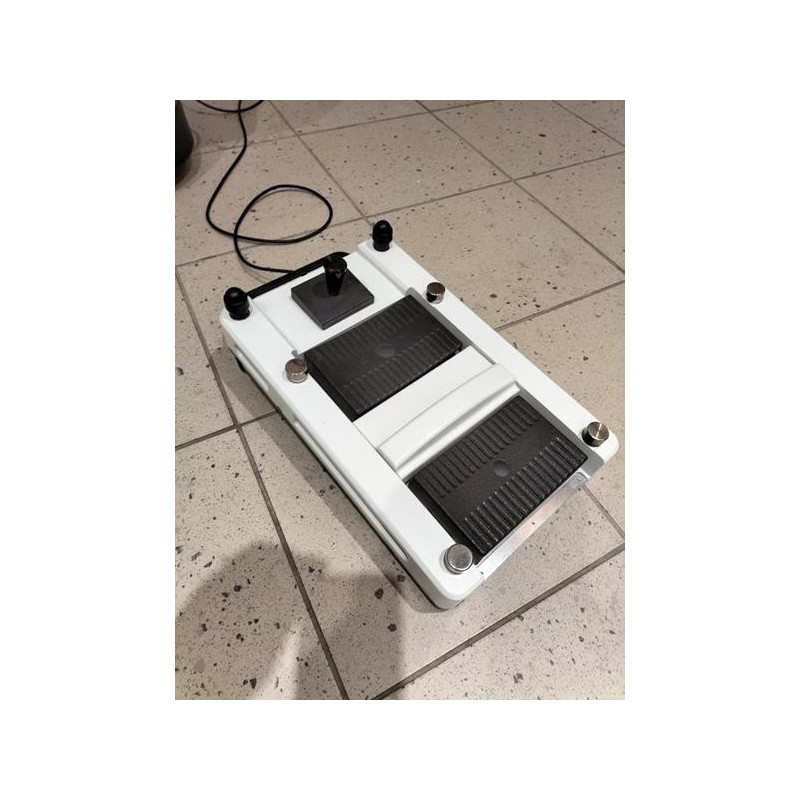

• Controls: Motorized focus and zoom operated via handgrips or foot pedal.

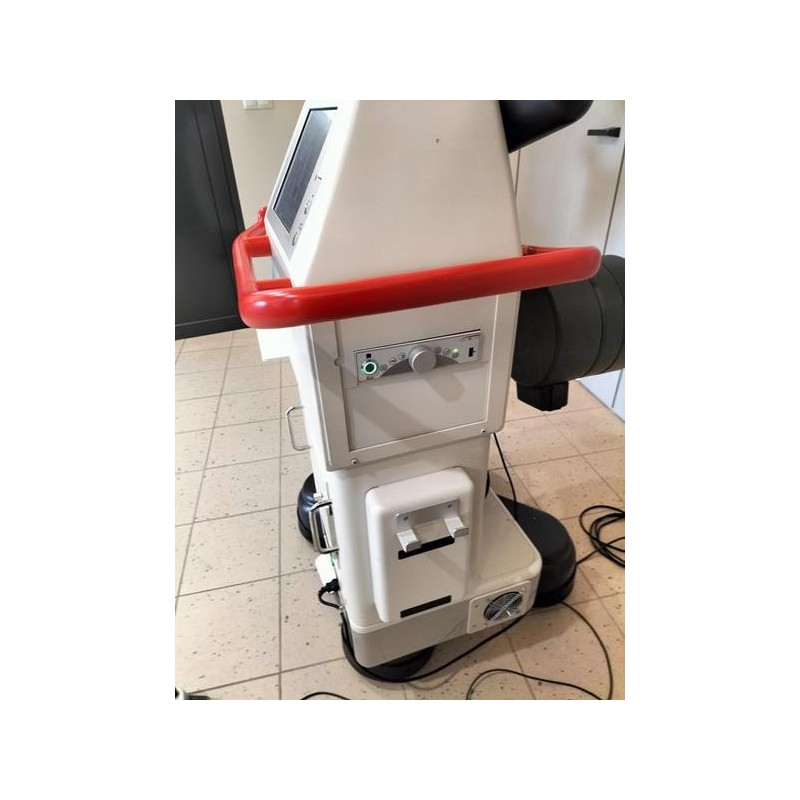

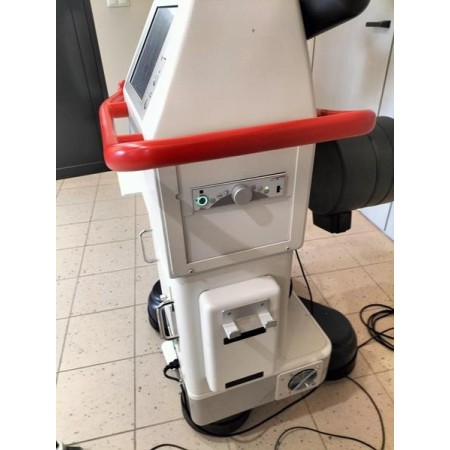

• Mobility: Compact design allows easy maneuverability and accurate positioning of the microscope.

User Interface and Documentation

• ISUS System: Intelligent Setup System for quick customization of user settings.

• Display: Graphical LCD with backlighting, up to 8 user-configurable presets, and built-in self-diagnostics.

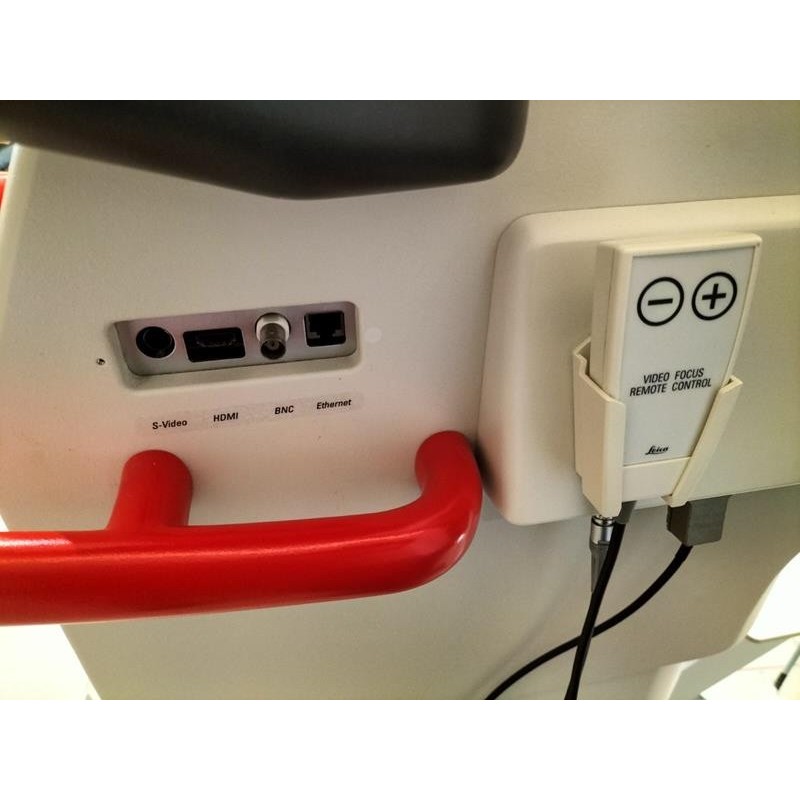

• Documentation Modules: Optional HD recording modules and integration with video systems.

Clinical Applications

The Leica M525 MC1 is a versatile surgical microscope suitable for a wide range of medical fields, including:

• Neurosurgery

• ENT surgery

• Orthopedic surgery

• Plastic and reconstructive surgery

• Gynecology

• Dentistry

• Veterinary medicine
