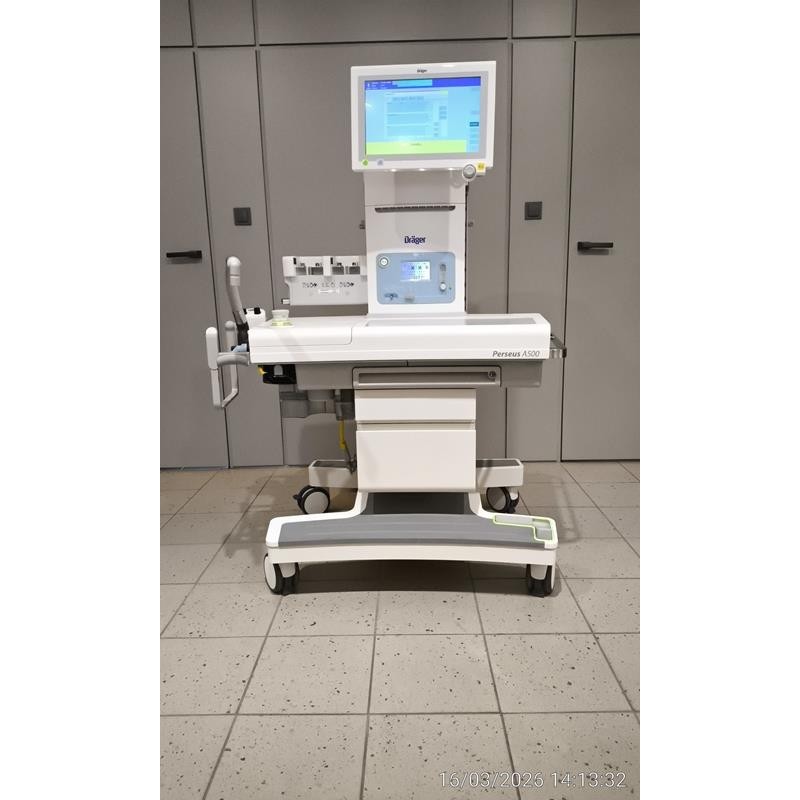

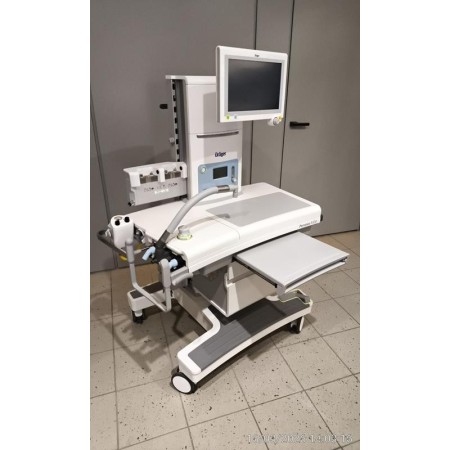

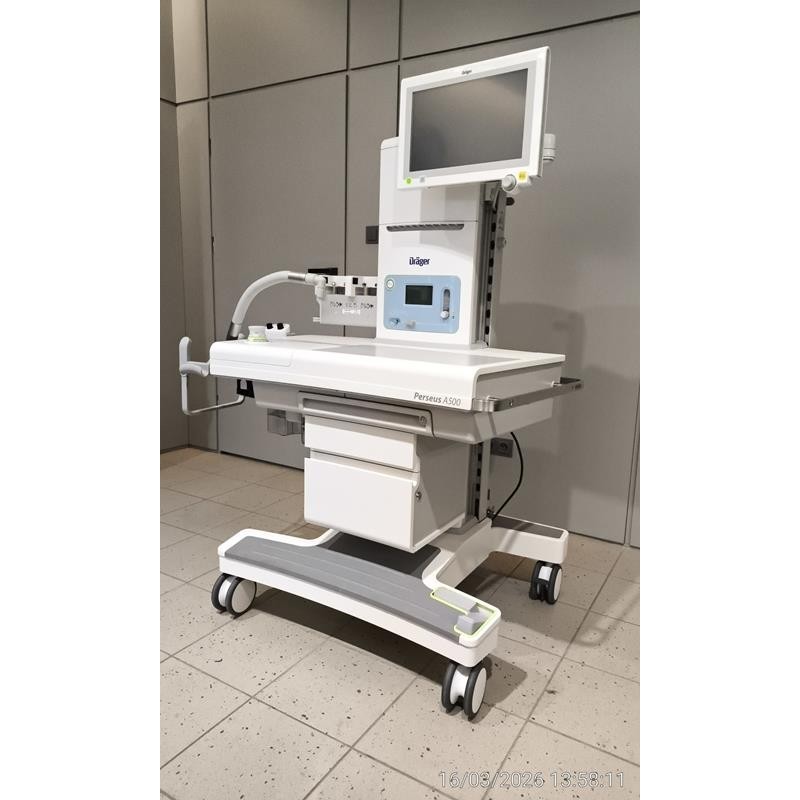

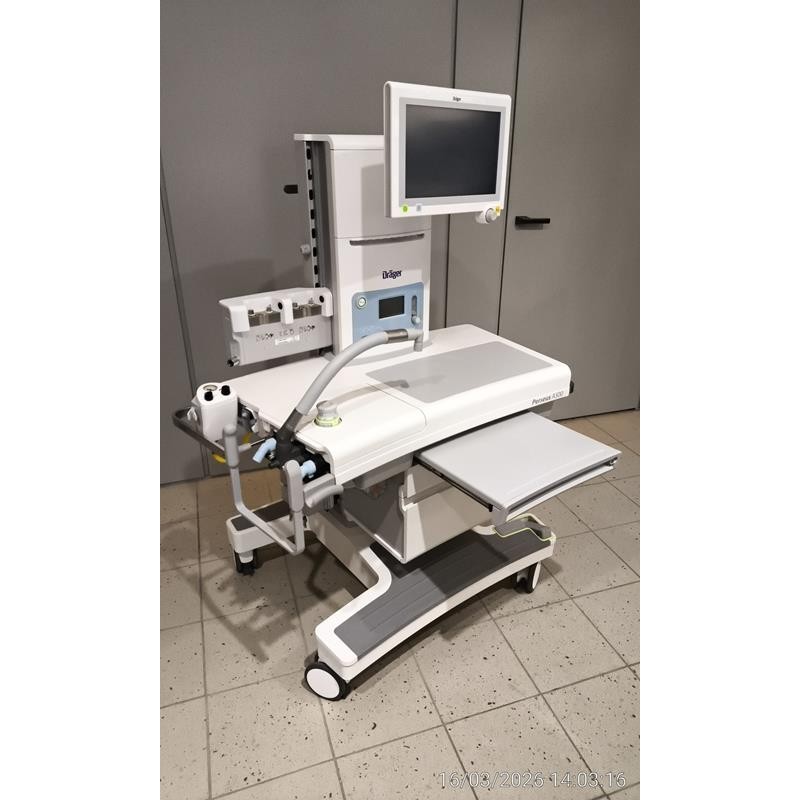

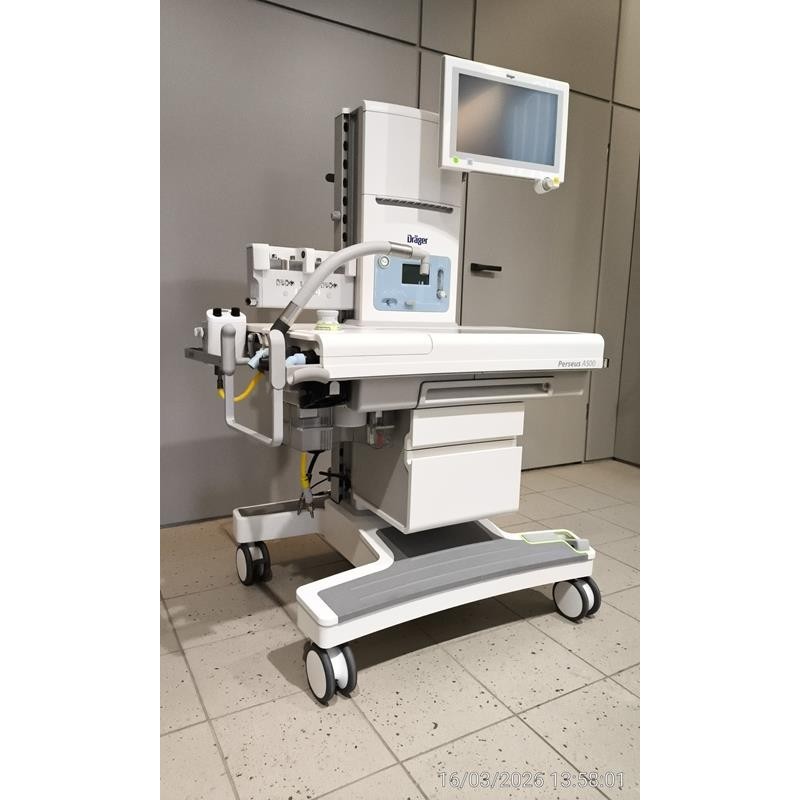

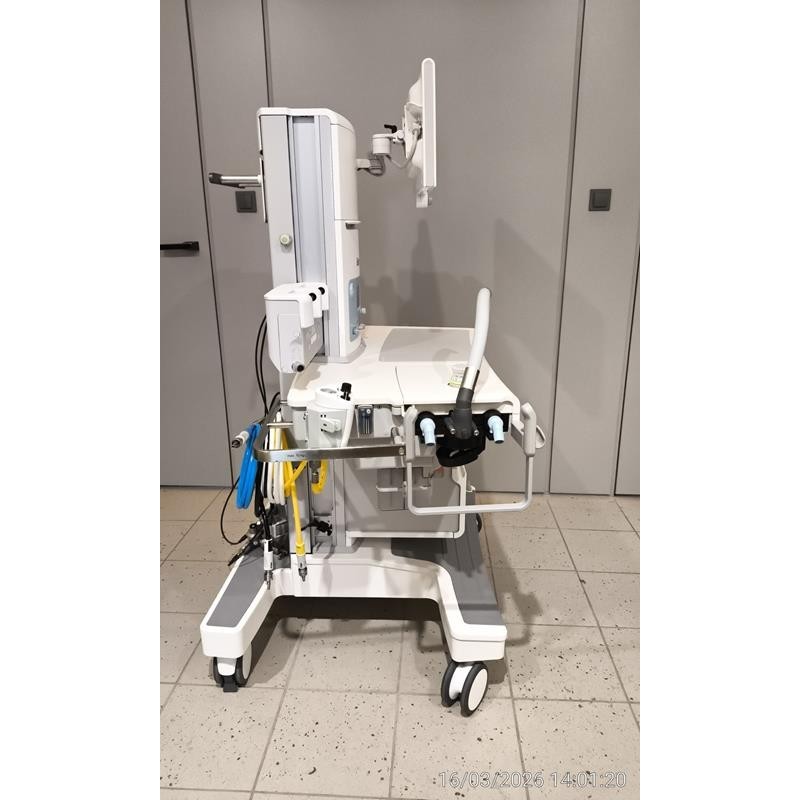

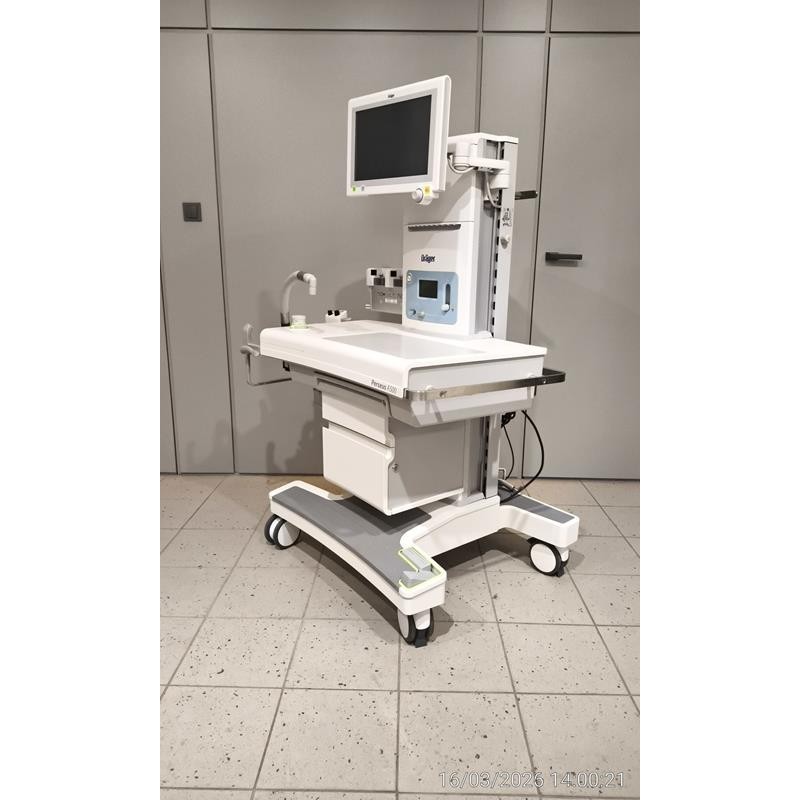

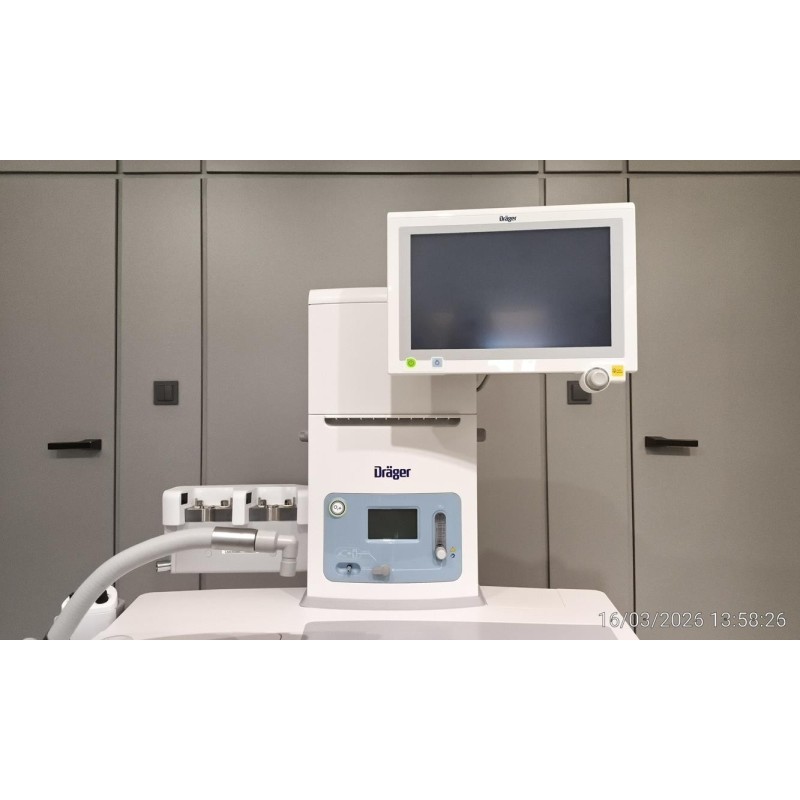

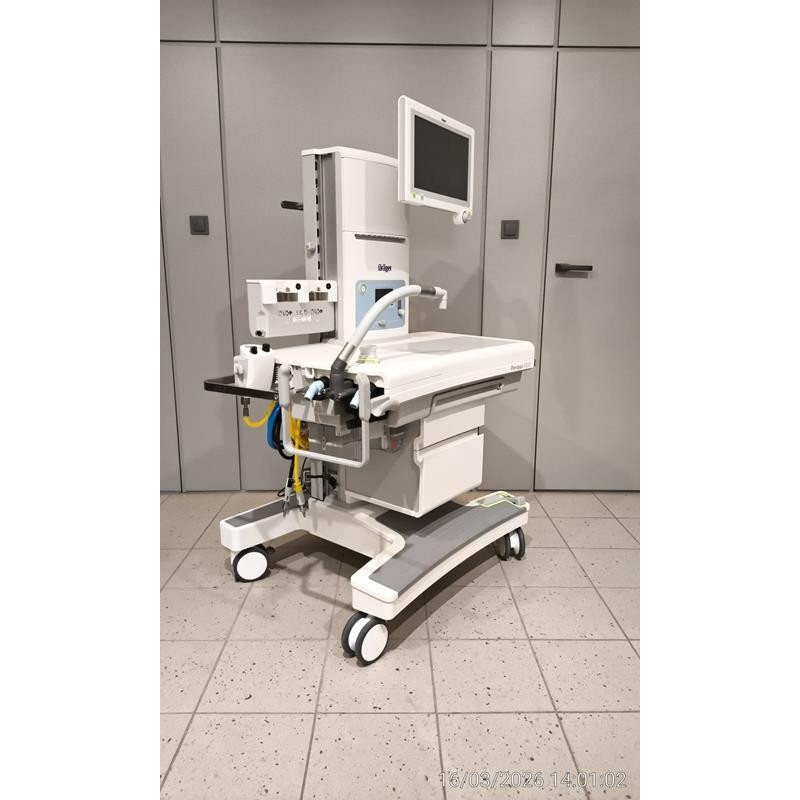

DRAGER PERSEUS anesthesia machine

• Dimensions (H × W × D): 148 × 115 × 79 cm
• Weight: approx. 150–160 kg
• Power supply: 100–240 V AC, 50/60 Hz
• Power consumption: approx. 70 W typical, max. 2.2 kW
• Battery backup: 30–150 minutes
• Interfaces: 2× RS232, USB, LAN

Gas system

• Gases: O₂, AIR, optional N₂O
• Electronic gas mixer
• Fresh gas flow: 0.2 – 15 L/min
• O₂ concentration:
  • 21–100% (Air)
  • 25–100% (N₂O)
• O₂ flush: 25 – 75 L/min
• Auxiliary O₂ flow: 2 – 10 L/min

Ventilator (TurboVent2)

• Type: blower-driven, electronically controlled
• ICU-level ventilation

Ventilation modes:

• MAN/SPON
• CPAP
• VC, VC + PS
• PC, PC + PS
• Pressure Support
• AutoFlow
• APRV

Ventilation parameters:

• Tidal volume: 20 – 2000 mL
• Respiratory rate: 3 – 100 bpm
• Inspiratory pressure: 3 – 80 mbar
• PEEP / PS: up to ~78 mbar
• Inspiratory flow: up to 180 L/min

Monitoring & features

• Gas monitoring: O₂, N₂O, CO₂, anesthetic agents
• 15.3” touchscreen display
• Breathing loops
• Low-flow & minimal-flow tools
• Automatic self-test
• RFID system
• Integration with patient monitoring systems
