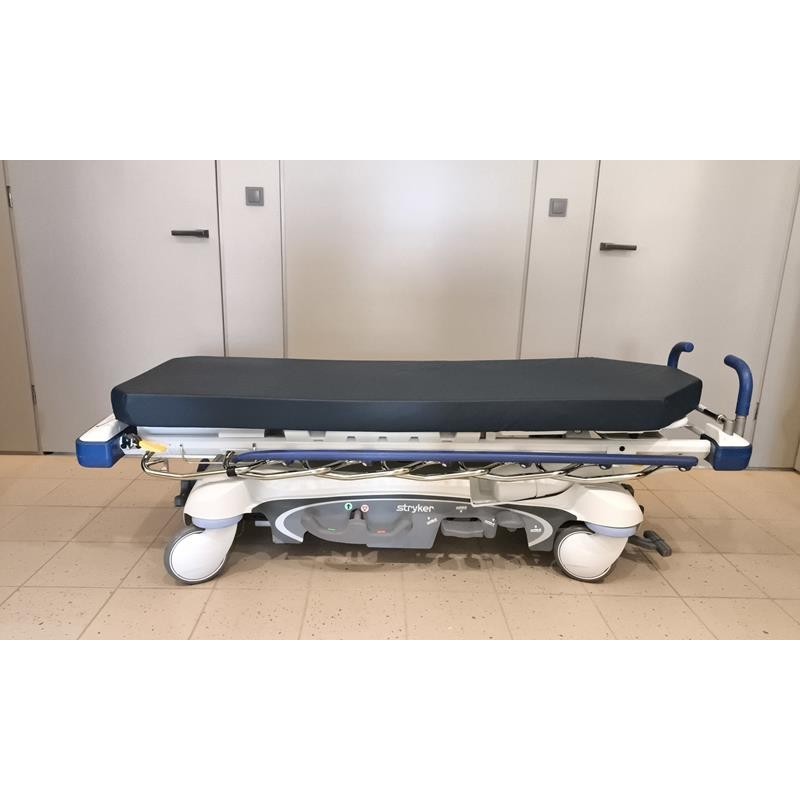

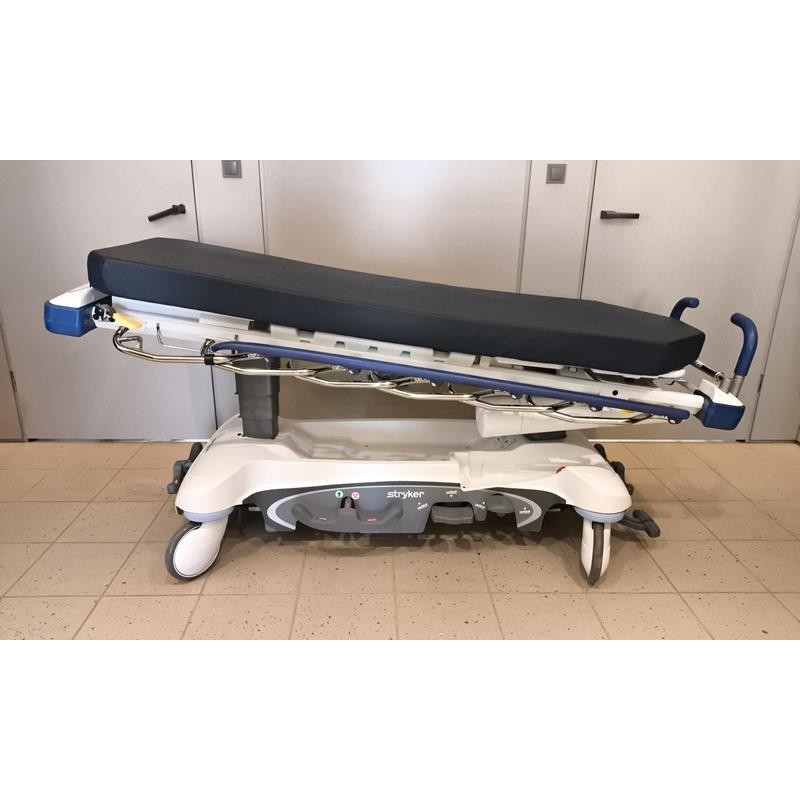

Stryker 1105 Prime Transport Cart

The Stryker 1105 Prime Series Stretcher is a sophisticated medical device designed to enhance patient comfort and assist healthcare professionals. Below are its key features and specifications:

Mobility and Maneuverability:

• Equipped with a retractable fifth wheel to optimize traction and facilitate cornering.
• Advanced mobility options, such as the Zoom® Motorized Drive System or Big Wheel®, make transporting heavier patients easier.

Functionality:

• Hydraulically adjustable height with an electric lift eliminates the need for manual pumping, ensuring quick access to the patient and caregiver safety.

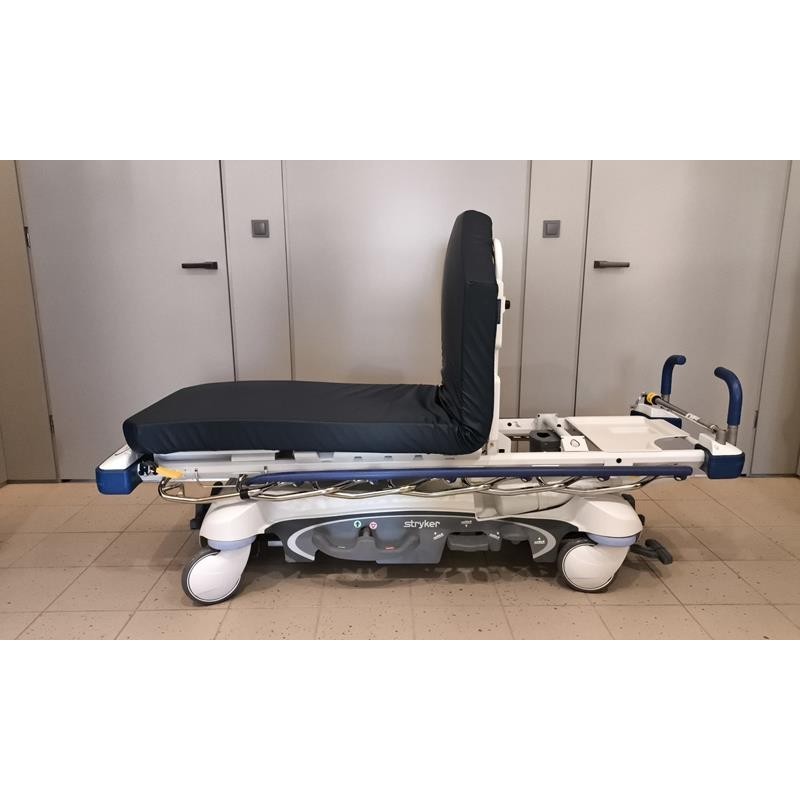

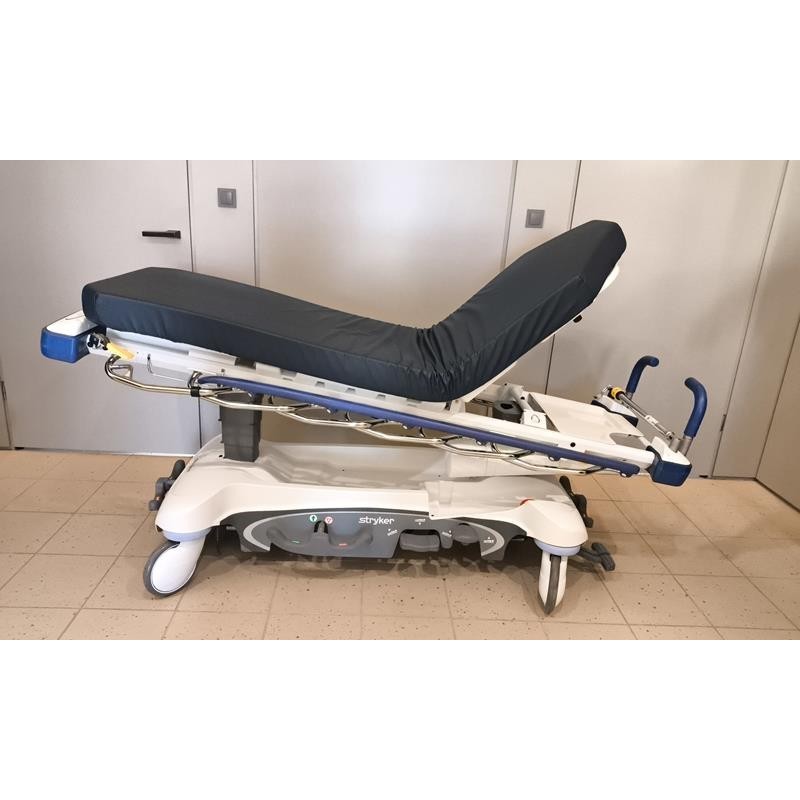

• The Lift Assist Backrest uses the patient's weight to raise the head of the stretcher, reducing the need for repositioning.
• Option to equip with IsoFlex SE pressure-relief mattresses, providing even pressure distribution and comfort, aiding in the treatment and prevention of pressure ulcers.

Technical Specifications:

• Safe working load: 700 lbs (approximately 318 kg).
• Maximum height: 34 inches (approximately 86.4 cm).
• Minimum height: 20.75 inches (approximately 52.7 cm).

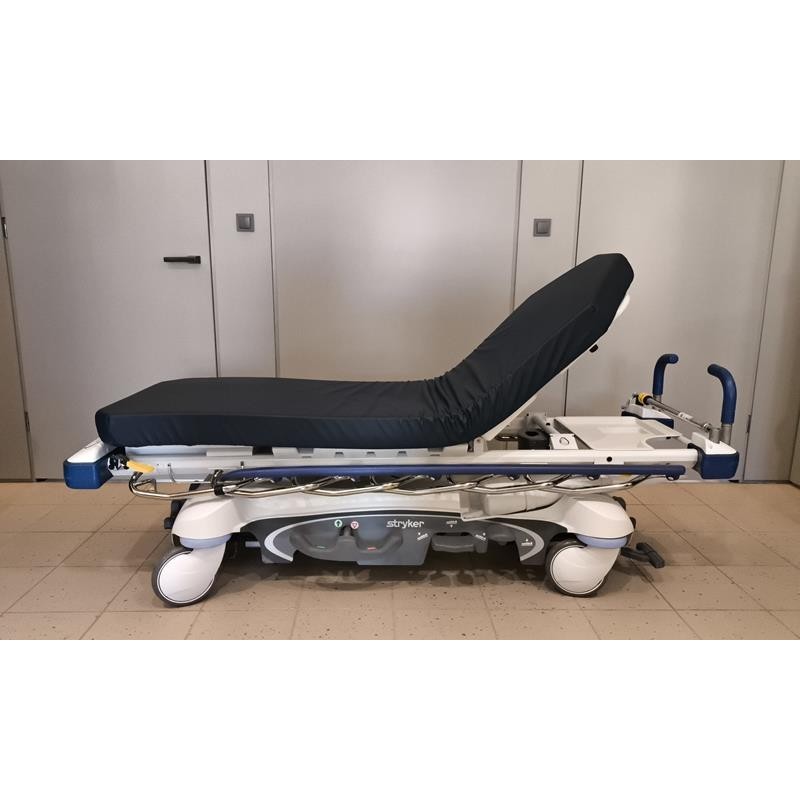

• Backrest adjustment: 0°–90°.
• Knee gatch adjustment: 0°–40°.

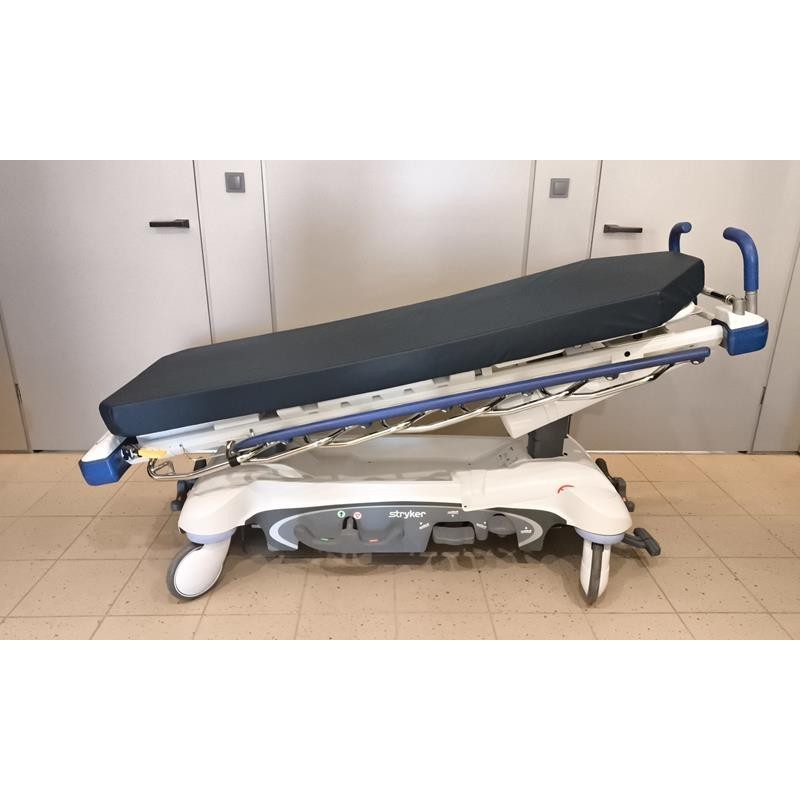

• Trendelenburg/Reverse Trendelenburg position: ±17°.
• Siderail length: 36 x 147 cm.
• Wheel diameter: 20 cm.

Additional Features:

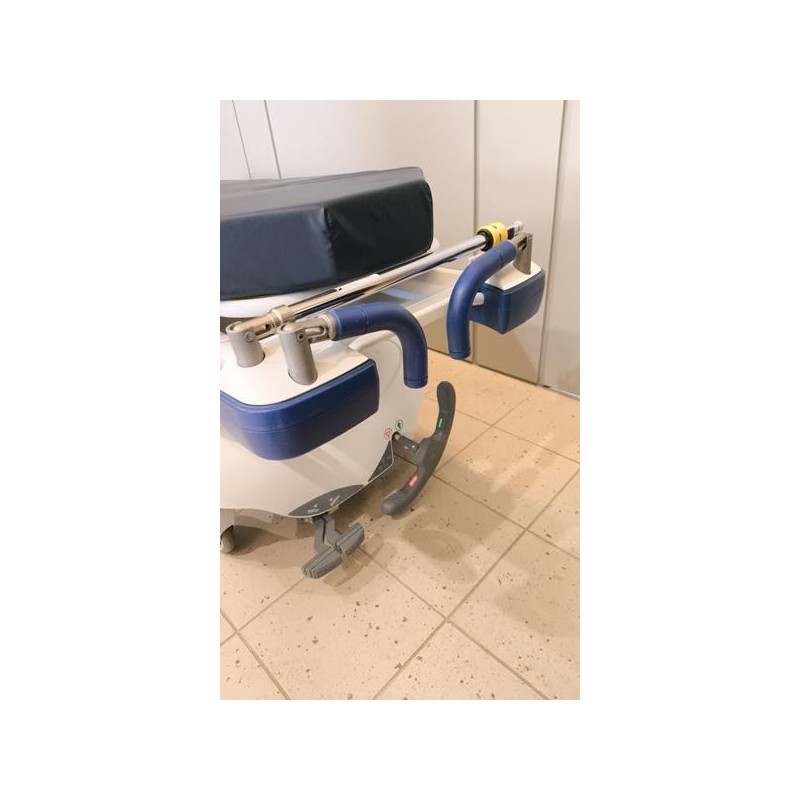

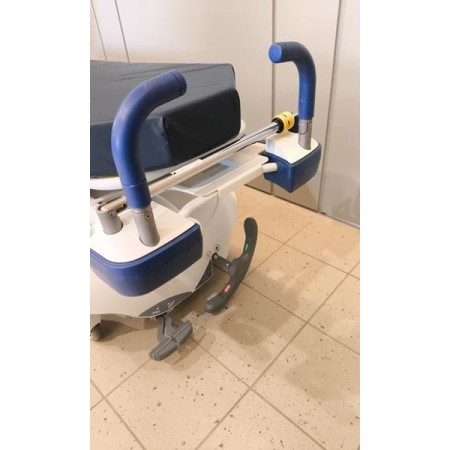

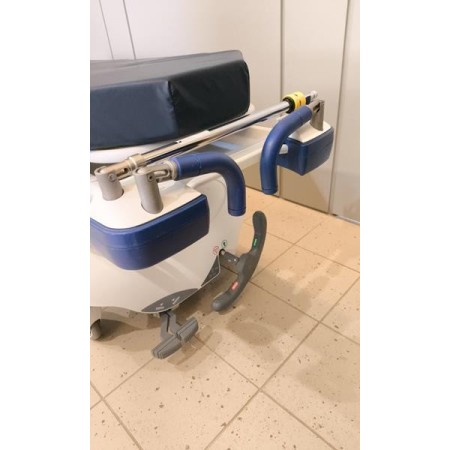

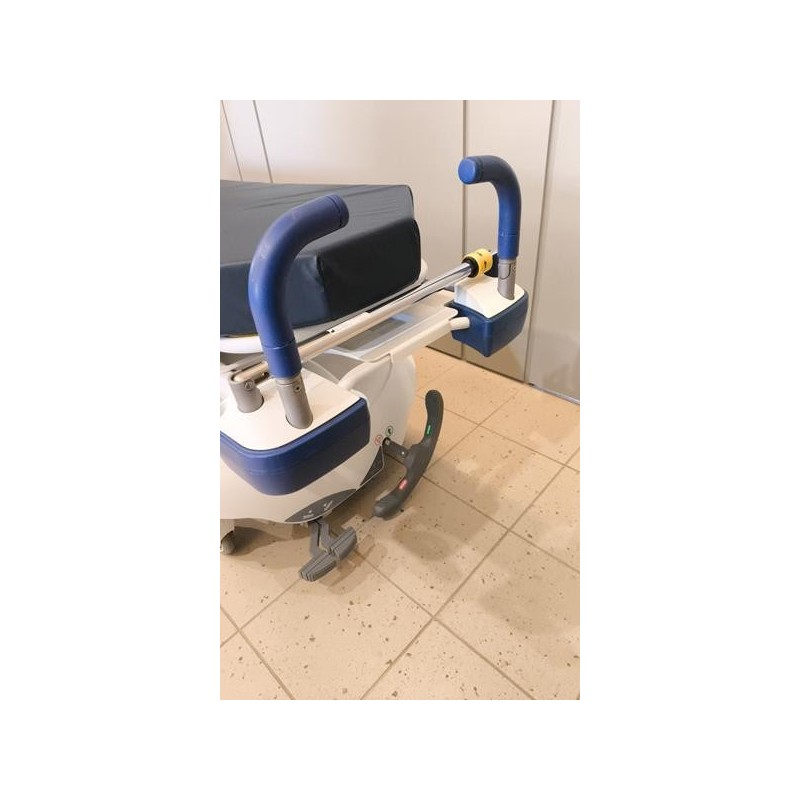

• Retractable push handles.

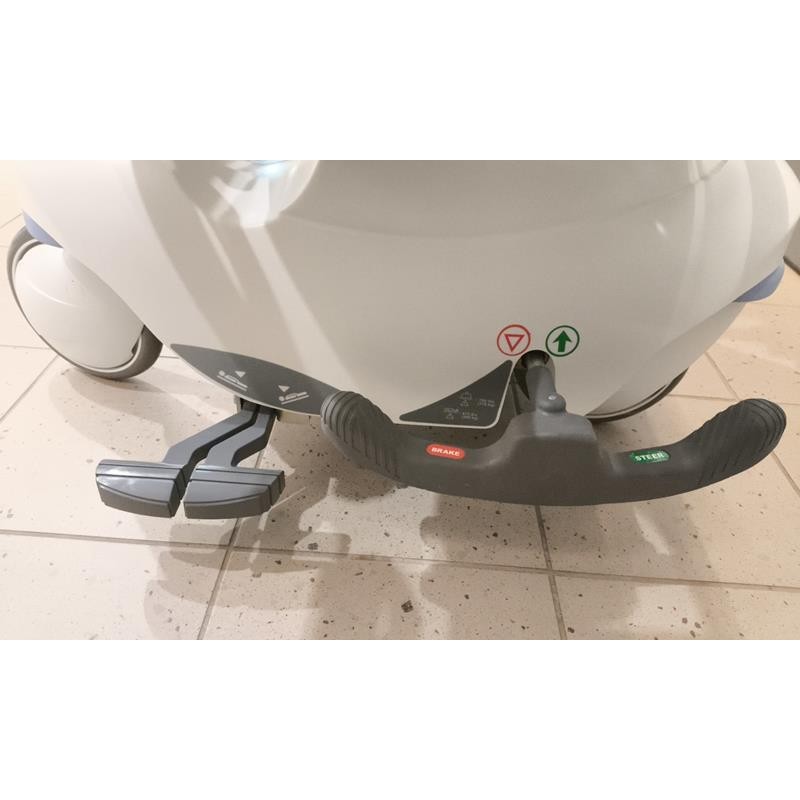

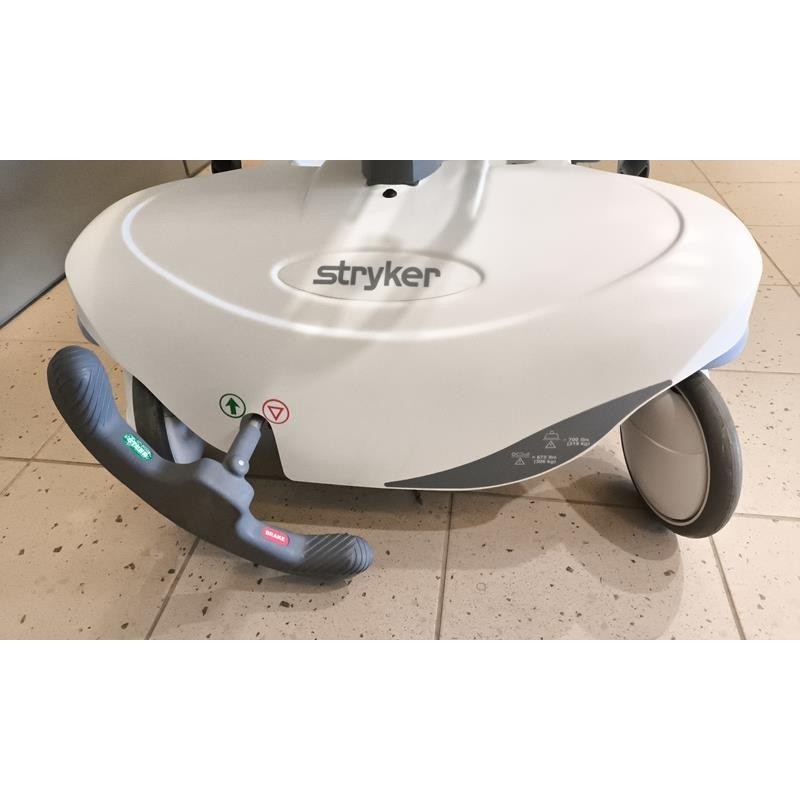

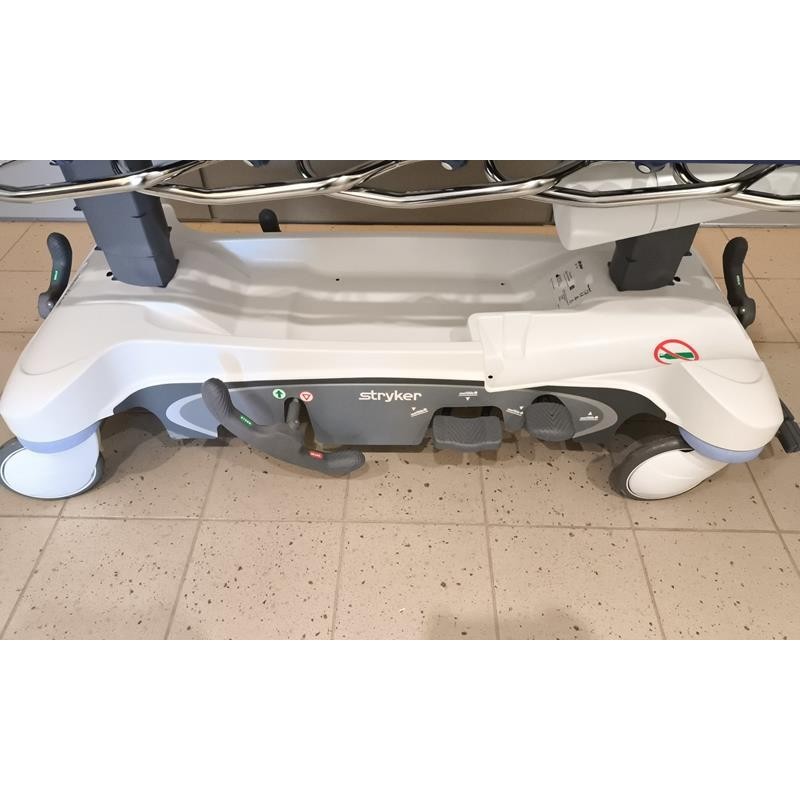

• Hydraulic system controls accessible from three sides.

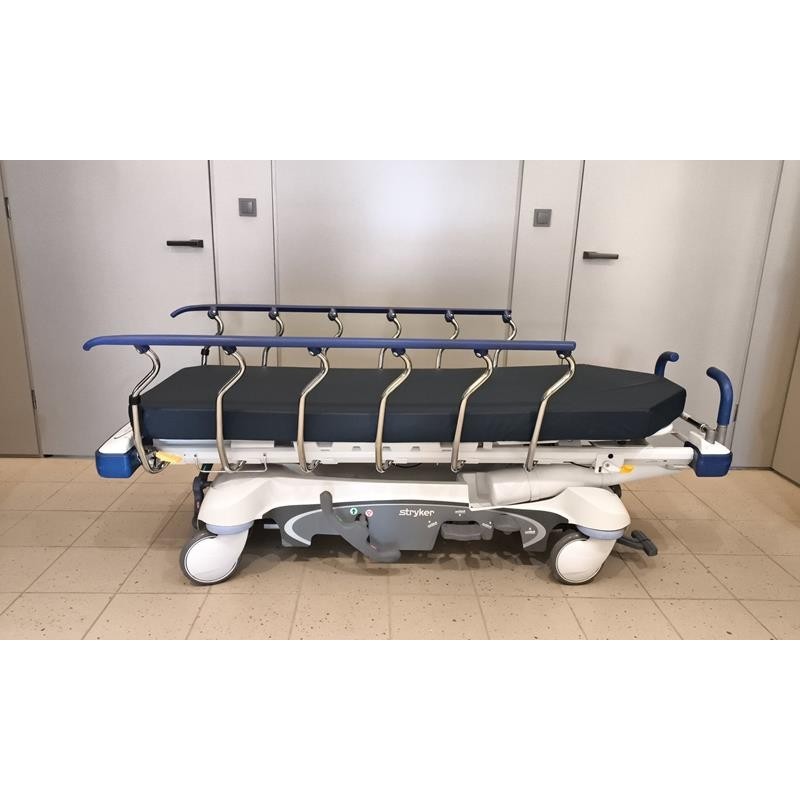

• Siderail release function available at both ends of the stretcher.

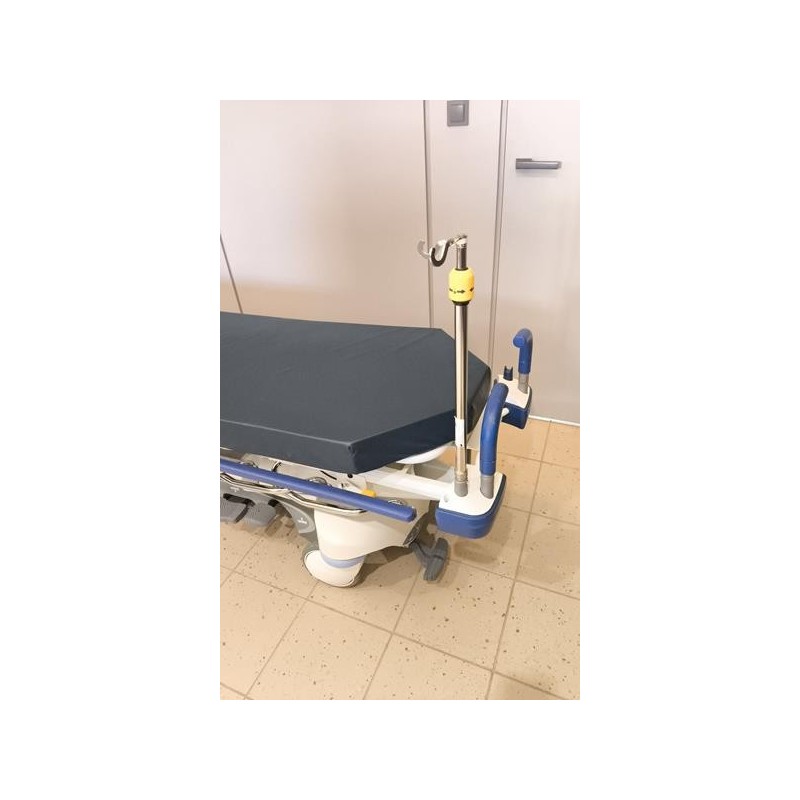

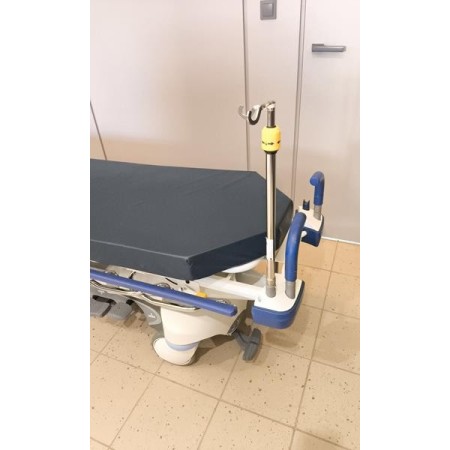

• IV pole (two- or three-segment, fixed or removable).

The Stryker 1105 Prime Series Stretcher is designed to reduce the physical strain on medical staff, improve patient comfort, and enhance the efficiency of medical facilities.
