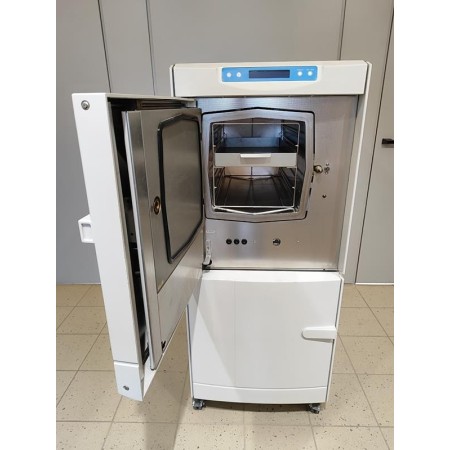

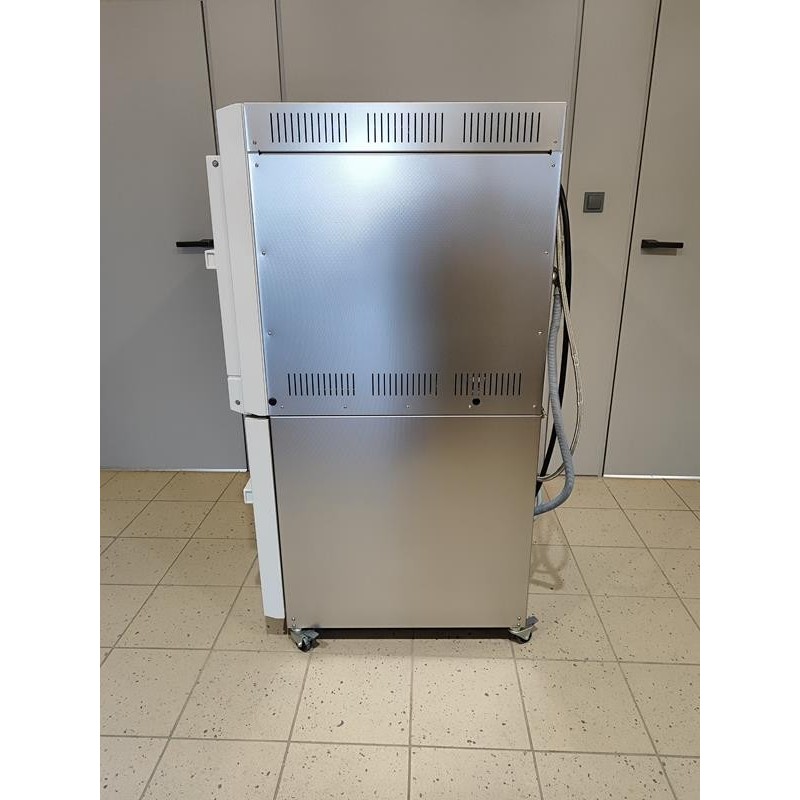

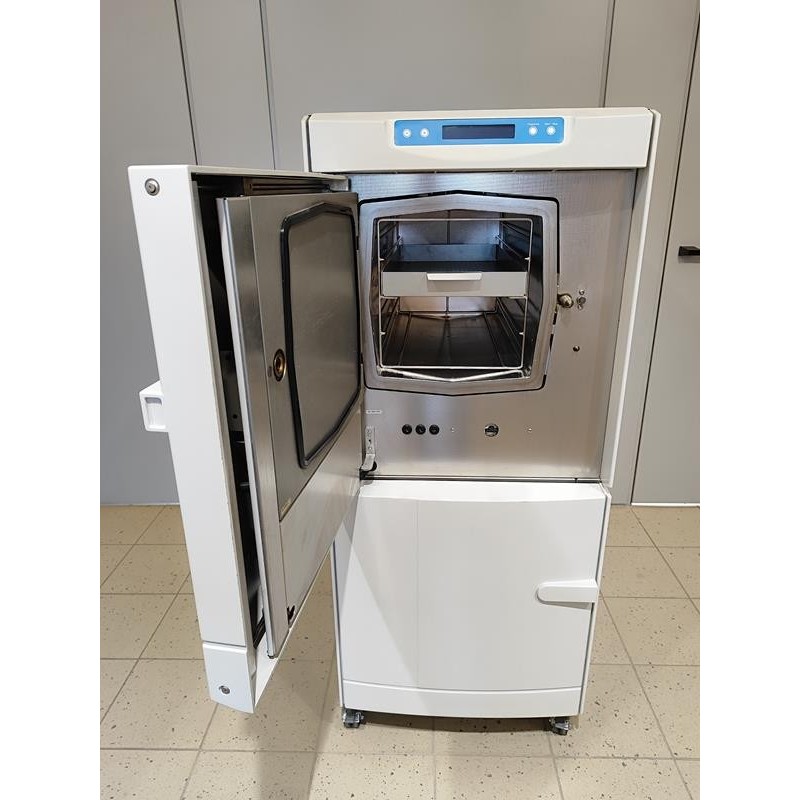

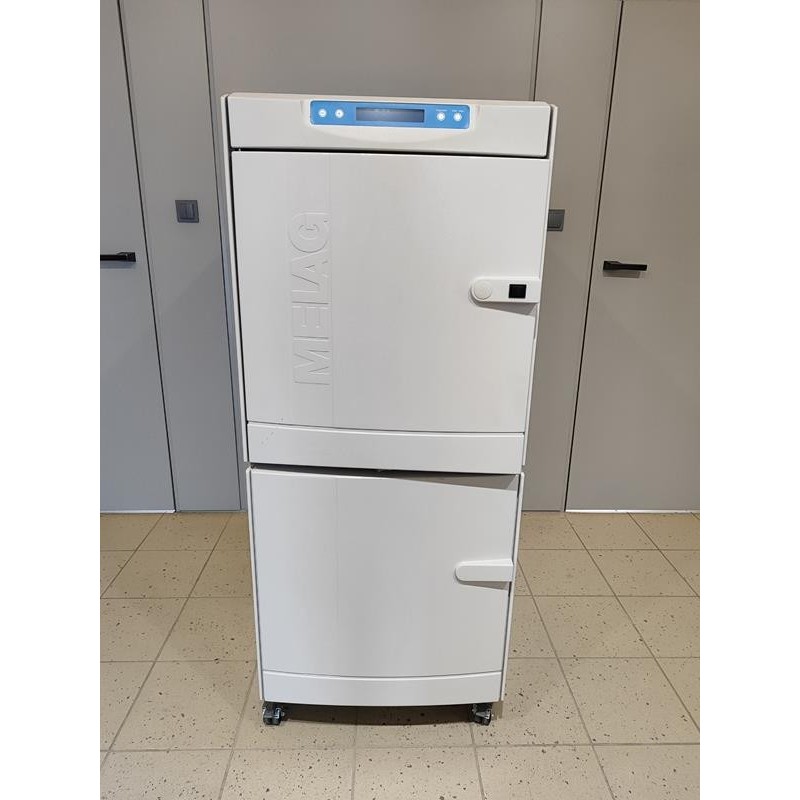

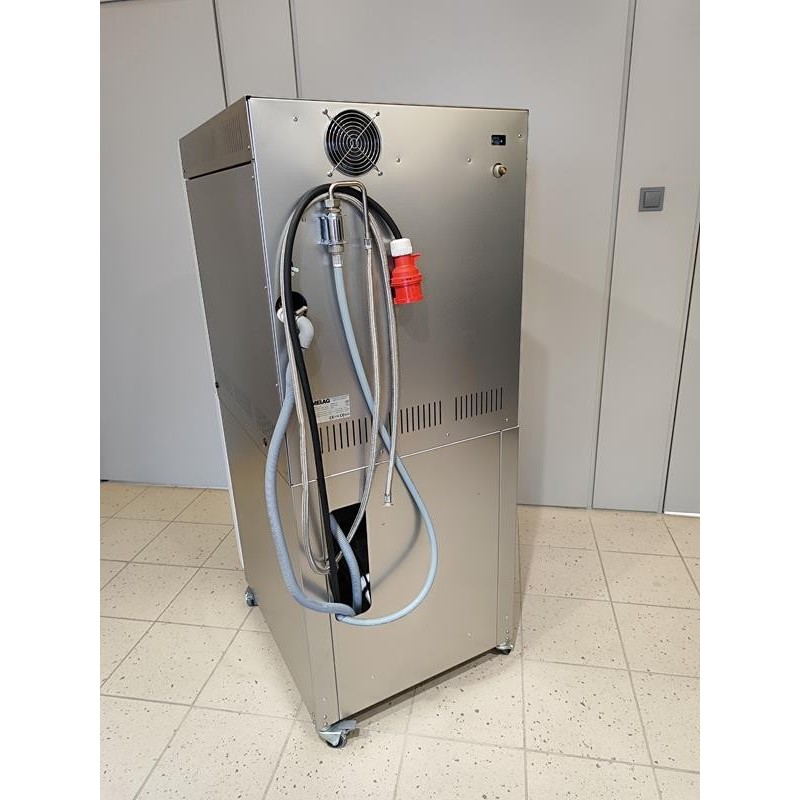

Melag Cliniklav 25 sterilizer

Intended Use

• Steam sterilizer (autoclave)
• For sterilizing:
  • surgical instruments
  • porous materials (textiles)
  • wrapped and unwrapped loads

Device Type

• Large steam sterilizer (EN 285 compliant)
• Fractionated pre-vacuum system
• Separate steam generator

Sterilization Parameters

• Temperature:
  • 121°C
  • 134°C
• Pressure:
  • approx. 1–2 bar
• Programs:
  • Universal
  • Quick
  • Gentle
  • Prion
  • Bowie & Dick test
  • Vacuum test

Cycle Times

• Quick program: approx. 14–16 min
• Universal program: approx. 50–60 min
• Integrated vacuum drying

Capacity

• Chamber: approx. 1 StU (30 × 30 × 60 cm)
• Load capacity:
  • instruments: up to 15 kg
  • textiles: up to 7 kg

Dimensions and Weight

• External dimensions:
  • approx. 616 × 840 × 800 mm

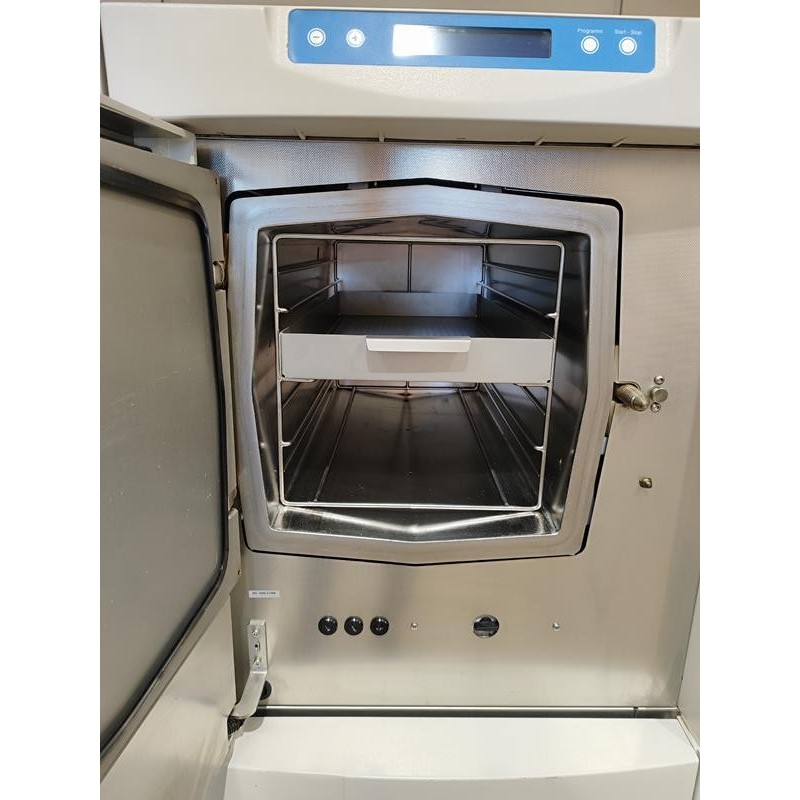

• Chamber:
  • 320 × 650 × 320 mm
• Weight:
  • approx. 157 kg

Power Supply

• 3N AC 400 V
• 50/60 Hz
• Power consumption: approx. 10 kW

Technical Systems

• Fractionated pre-vacuum
• Vacuum drying
• Electronic parameter control (EPS)

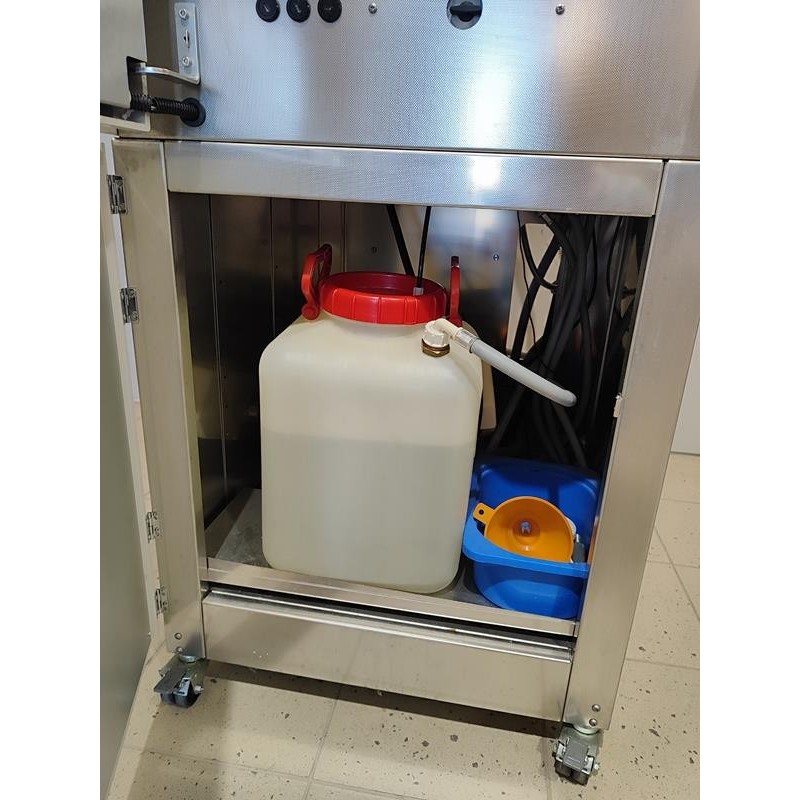

• Automatic water supply
• Conductivity monitoring

Control and Documentation

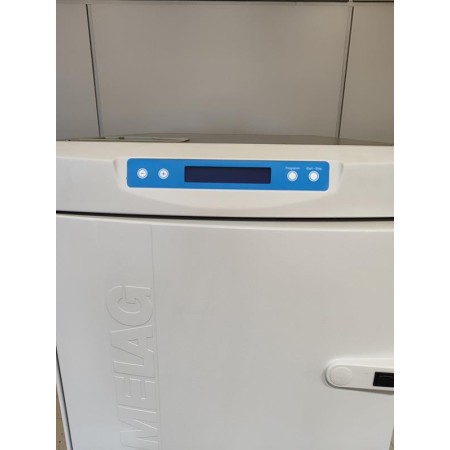

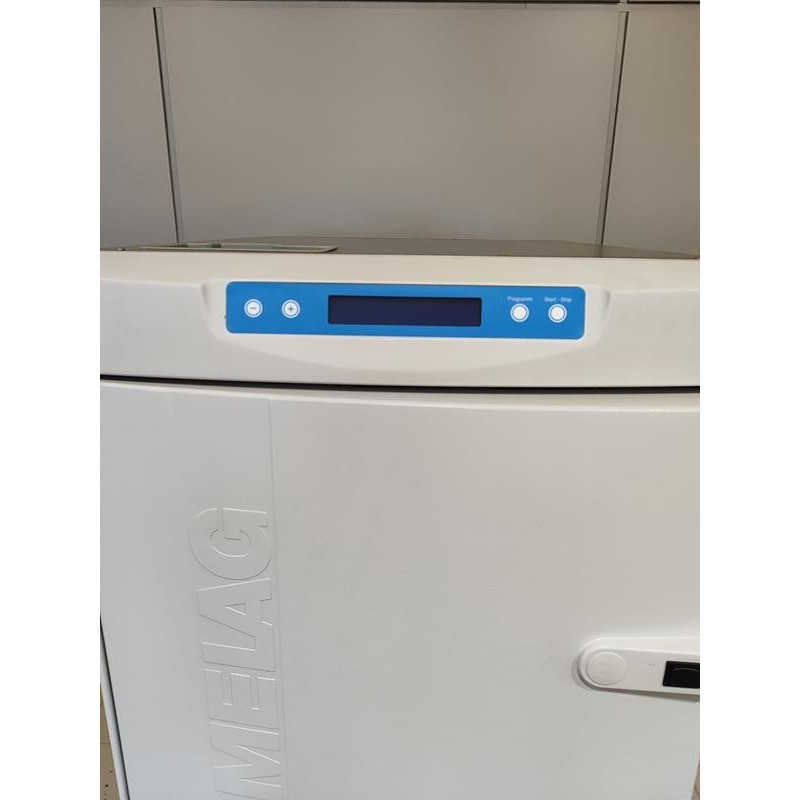

• Display control panel
• Integrated documentation system
• Connectivity:
  • printer
  • PC software
  • memory card

Safety Features

• Pressure and temperature monitoring
• Compliance with EN standards
• Validatable sterilization process

Applications

• Operating rooms
• Hospitals
• Surgical clinics
• Specialized medical practices
