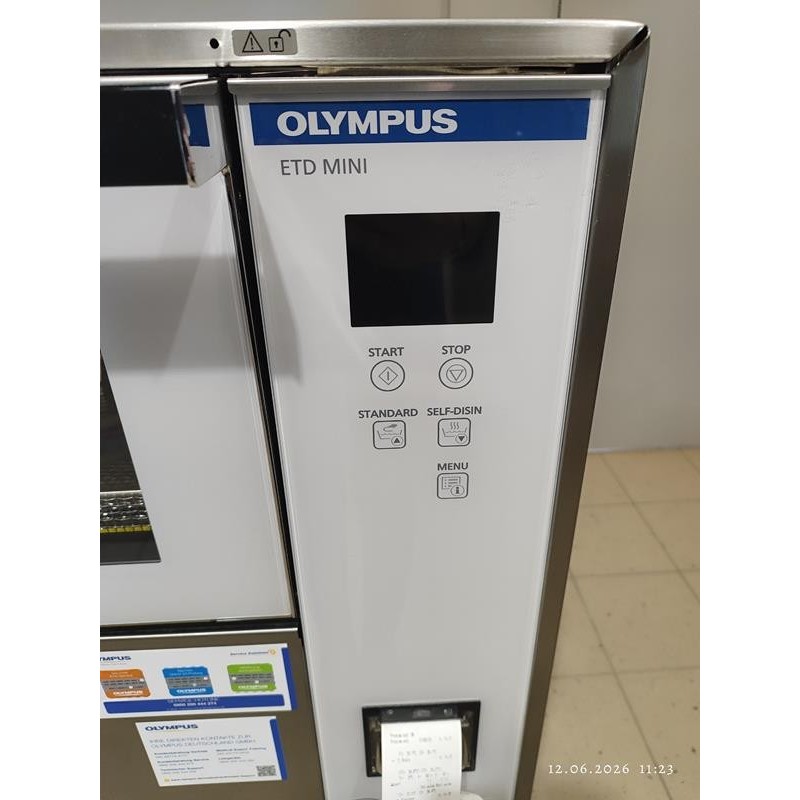

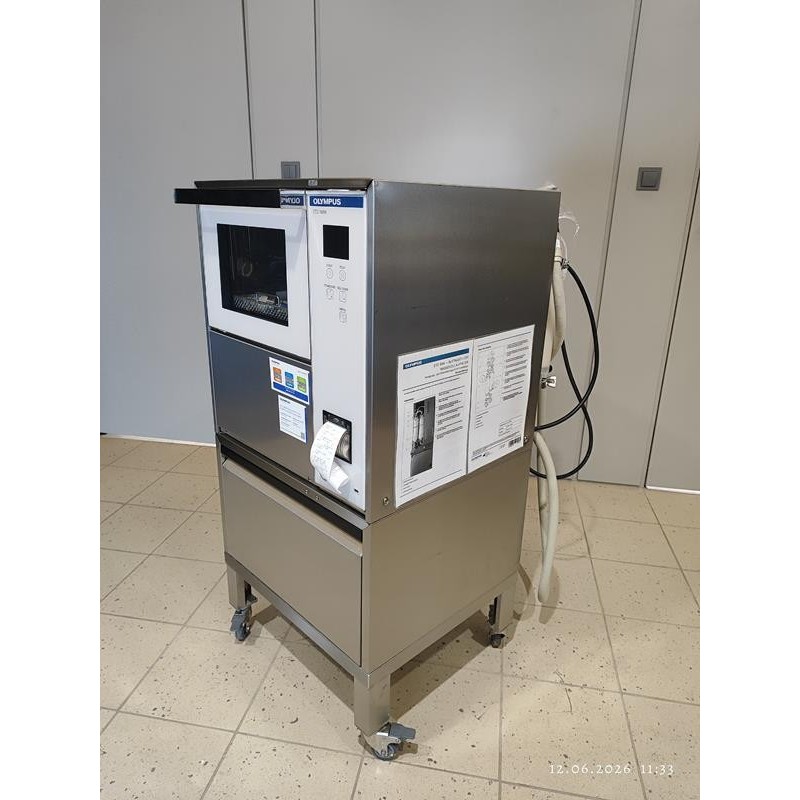

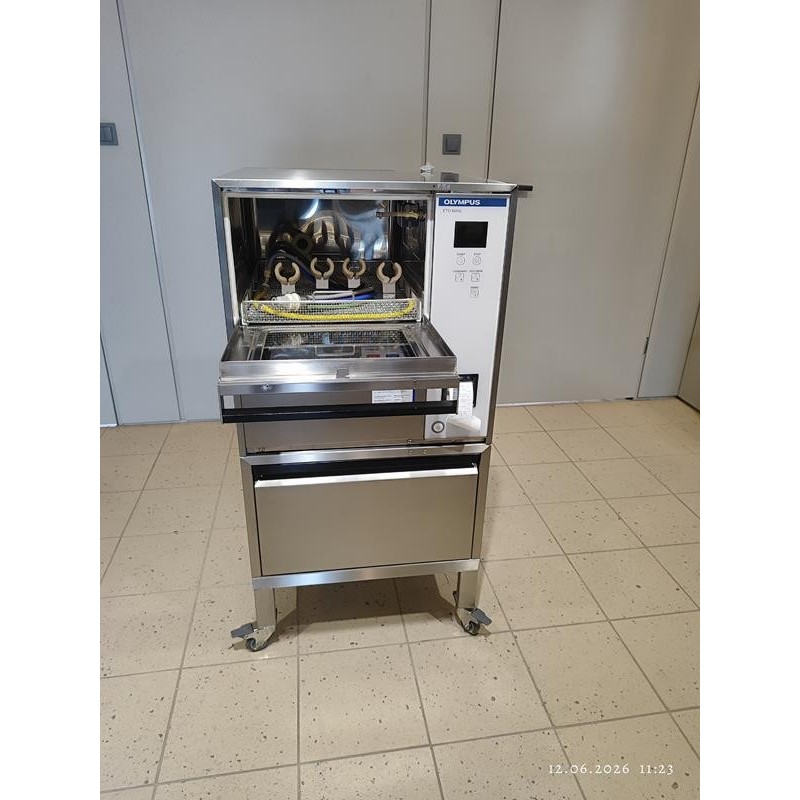

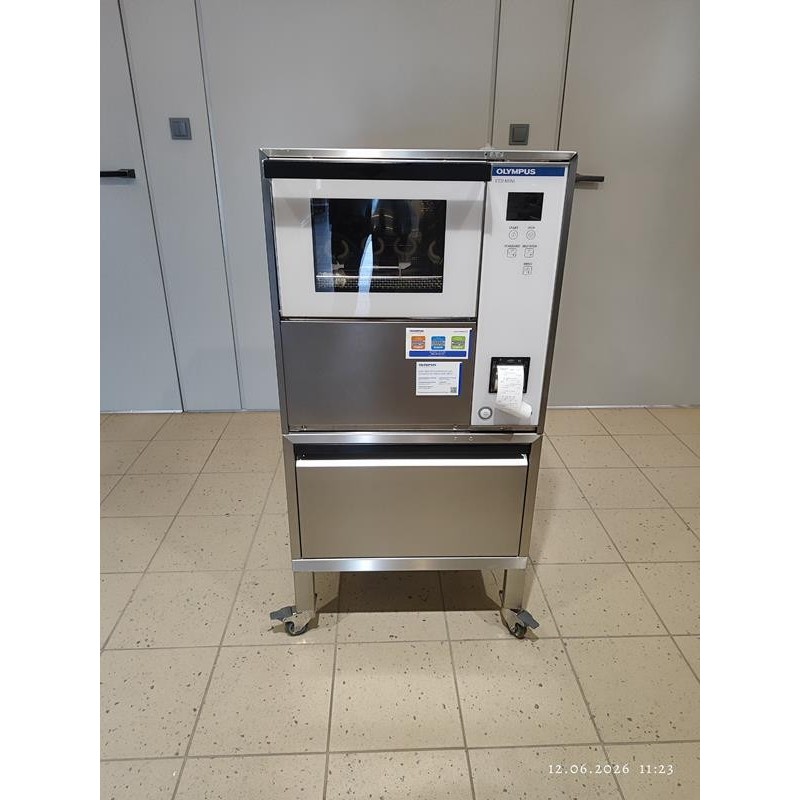

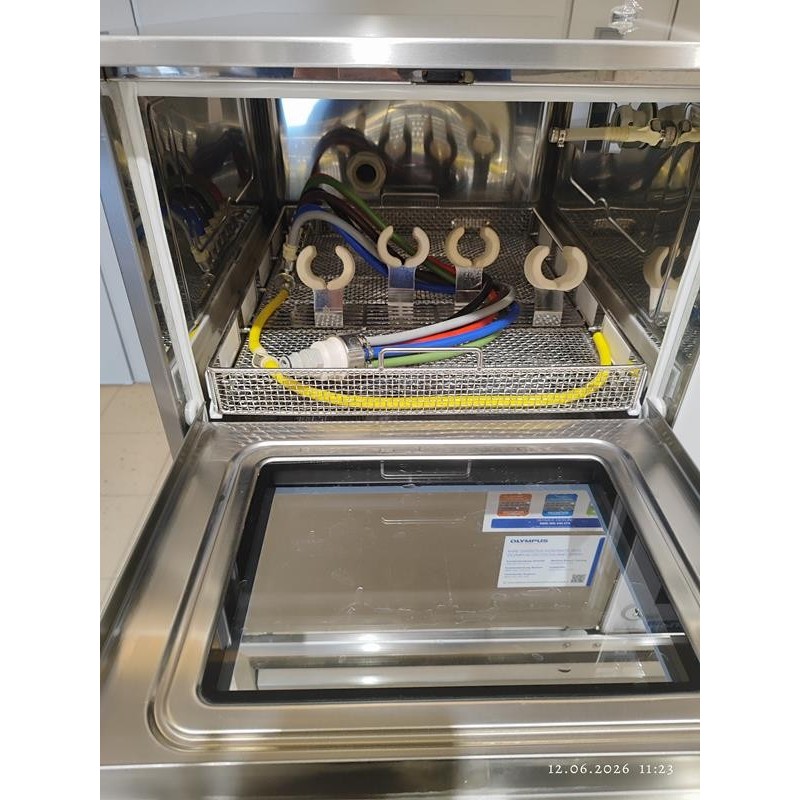

OLYMPUS ETD MINI endoscopic washer-disinfector

Automated Endoscope Reprocessor (AER) for cleaning and high-level disinfection of flexible endoscopes.

General Characteristics:

• Automated cleaning and high-level disinfection of flexible endoscopes.

• Single-chamber design.

• Compact footprint suitable for small and medium-sized endoscopy units.

• Validated reprocessing cycle in accordance with applicable international standards.

• Closed chemical handling system for enhanced operator safety.

• Automatic monitoring of process parameters.

Physical Characteristics:

• Width: 600 mm

• Depth: 630 mm

• Height (without casters): 945 mm

• Height (with casters): 1200 mm

• Weight: approximately 98 kg

Electrical Requirements:

• Power supply: 230 V AC

• Frequency: 50 Hz

• Maximum power consumption: 3050 W

Water Requirements:

• Maximum inlet water temperature: 35°C

• Recommended water hardness: ≤ 4°dH

• Connection to potable water supply

Performance:

• Reprocessing of one flexible endoscope per cycle.

• Typical cycle time: approximately 20 minutes (depending on selected program and chemicals).

• Automated detergent and disinfectant dosing.

• Continuous monitoring of channel flow and process conditions.

Compatible Endoscopes:

• Olympus flexible endoscopes

• Pentax flexible endoscopes

• Fujifilm flexible endoscopes

• Richard Wolf flexible endoscopes

• Karl Storz flexible endoscopes
  (using appropriate adapters where required)

Safety Features:

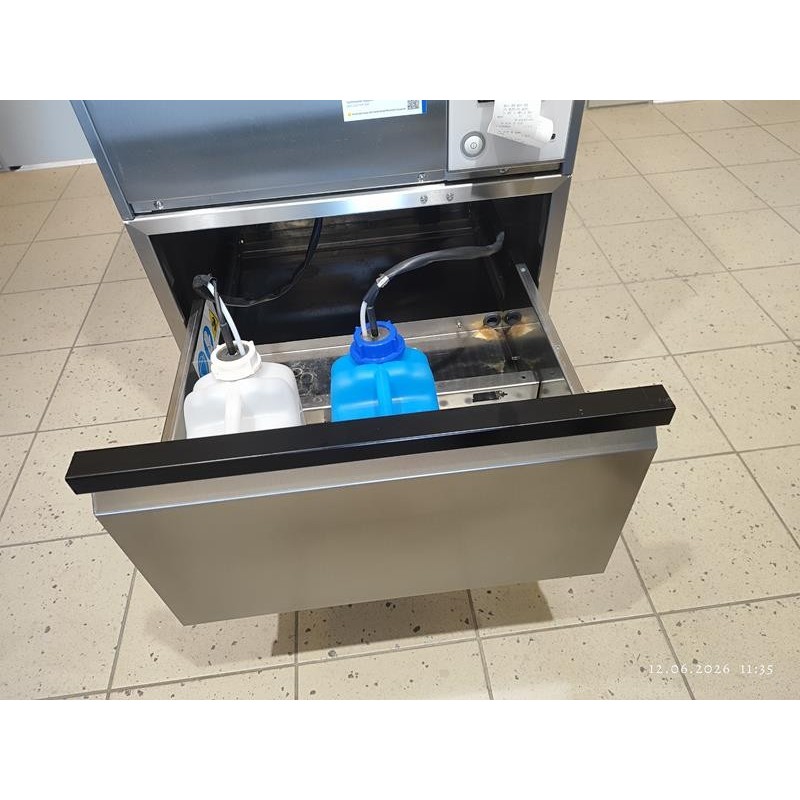

• Closed chemical container system.

• Color-coded and mechanically coded chemical connections.

• Automatic process control and monitoring.

• Leakage prevention system.

• User safety and contamination control measures.
